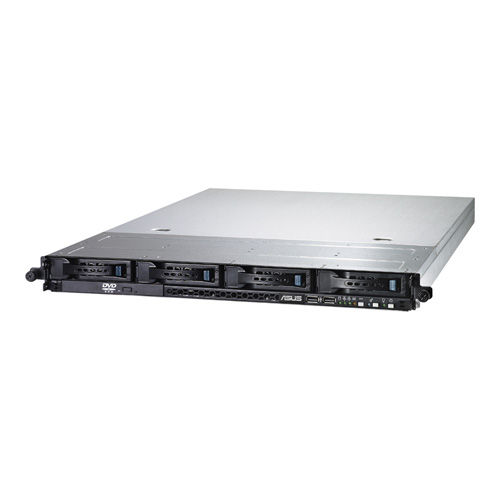

ASUS RS160-S5 LGA 771 (Socket J) Rack (1U)
Brand: ASUS · SKU: 90S4VA0000C210UET · MPN: 90S4VA0000C210UET · Category: Components
ASUS RS160-S5, LGA 771 (Socket J), Intel, 32 GB, Serial Attached SCSI (SAS), 0, 1, 1E, 32 MB
Specifications
| ECC | Yes |
|---|---|
| Depth | 444 mm |
| Width | 686 mm |
| Height | 43.4 mm |
| Weight | 15 kg |
| RAID levels | 0, 1, 1E |
| Chassis type | Rack (1U) |
| Ethernet LAN | Yes |
| Power supply | 650 W |
| LAN controller | Intel® 82563EB |
| Expansion slots | 1 x SO-DIMM |
| Bundled software | ASWM2.0 |
| Processor family | Intel |
| Processor socket | LGA 771 (Socket J) |
| PS/2 ports quantity | 2 |
| Number of DIMM slots | 8 |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Ethernet interface type | Gigabit Ethernet |
| Maximum internal memory | 32 GB |
| Storage drive controller | LSI 1068 PCI-X |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 4 |
| Warranty | 3-Year Warranty |
| Weight | 15 kg |
| Dimensions | 686 mm x 444 mm x 43.4 mm |
Product Description
Boost Performance with Industry-leading Technology - With 1600MHz Front Side Bus to speed up I/O and 8 Fully Buffered-DIMMs for larger memory addressability, RS160-S5 can handle heavier workload - Built with PCI-E 2.0 x16 slot for high speed Infiniband connections Energy-Saving with ASUS Unique Green Design - Equipped with 90% power efficiency board, RS160-S5 delivers high performance in energy-saving way - Low voltage 1.55V FB-DIMM provides high computing capability while consumes less power Longer Life and Higher Reliability with All Conductive Polymer Caps - RS160-S5 is built with all conductive polymer capacitors to provide better durability, electronic conductivity and longer lifetime - All conductor polymer capacitors will reduce energy loss and have better thermal characteristics Quad Server Class LAN Improves Data Transfers - Built-in Quad-LAN with a "teaming" technology integrates four high-speed Gigabit LAN ports into a single one to provide almost four times transferring bandwidth than ever - Provide "fail-over" function: if one or more port are disconnected, the networking connection will not be affected immediately - The four ports can be used in individual sub-nets to provide secure data and smooth transfers
Key Features
ASUS RS160-S5. Processor socket: LGA 771 (Socket J), Processor family: Intel. Maximum internal memory: 32 GB. Supported storage drive interfaces: Serial Attached SCSI (SAS), RAID levels: 0, 1, 1E. Maximum graphics card memory: 32 MB. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® 82563EB
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS160-S5 LGA 771 (Socket J) Rack (1U) (90S4VA0000C210UET) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS160-S5 LGA 771 (Socket J) Rack (1U) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS160-S5 LGA 771 (Socket J) Rack (1U) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90S4VA0000C210UET.
