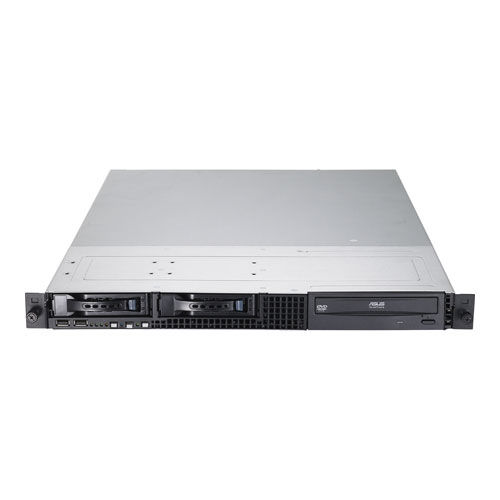

ASUS RS300-E6/PS2 Intel® 3420 LGA 1156 (Socket H) Rack (1U)
Brand: ASUS · SKU: 90S-S5H001CEZ · MPN: 90S-S5H001CEZ · Category: Components
ASUS RS300-E6/PS2, Intel® 3420, LGA 1156 (Socket H), 32 GB, Serial ATA, 0, 1, 8 MB
Specifications
| Depth | 43.4 mm |
|---|---|
| Width | 444 mm |
| Height | 615 mm |
| Safety | Europe (CE, EN55022 - EU 89/366/EEC), TUV |
| Weight | 15 kg |
| RAID levels | 0, 1 |
| Chassis type | Rack (1U) |
| Power supply | 350 W |
| LAN controller | Intel® 82574L |
| Bundled software | Anti-Virus ASWM2.0 |
| Processor socket | LGA 1156 (Socket H) |
| Motherboard chipset | Intel® 3420 |
| PS/2 ports quantity | 2 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 32 GB |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 3 |
| Operating temperature (T-T) | 10 - 35 °C |
| Compatible operating systems | Windows Server 2008 Enterprise 32/64-bit Windows Server 2003 R2 Enterprise (32/64 bit) RedHat Enterprise Linux AS5.0 (32/64 bit) SuSE Linux Enterprise Server 10 (32/64 bit) |
| Maximum graphics card memory | 8 MB |
| Storage relative humidity (H-H) | 20 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 15 kg |
| Dimensions | 444 mm x 43.4 mm x 615 mm |
Product Description
Green Server with High Expandability & Upgradability RS300-E6/PS2 is a single-socket rack-mount server based on Dual-Core/Quad-Core Intel® 3400 series processor and Intel® 3420MCH chipset, which provides immediate performance scale up and high expandability and upgradability in the 1U server. Support Up-to-date Intel CPU The RS300-E6/PS2 is built with LGA Socket 1156, support 45nm Quad Core UP CPU and dual-channel DDR3-1333, and it is also designed ready for next-gen 32 nm Dual Core UP CPU to allow effortless migration to Intel’s new platform and therefore prolong your investment. The ASUS proprietary CPU heat-pipe will deliver high thermal performance for stable computing applications. High I/O Expandability The RS300-E6 supports 2 I/O expansion slots in the 1U chassis, including one PCI-E x8 slot to support low-profile/half-length card, and one PCI-E x16 slot to support full-height/half-length card. Green Design with 80+ PSU & Intelligent Fan Control With current trends leaning towards power efficiency, the RS300-E6/PS2 is equipped with 80+ PSU to reduce the power loss and power consumption, and save power bill for users. The ASUS intelligent FAN technology will optimize the total FAN power and acoustic level to create a pleasant working environment for customers. Remote Management Solution – ASUS ASMB4 iKVM The optional ASMB4-iKVM upgrade kit provides remote real-time full control access to the system based on BIOS-level by keyboard, video monitor and mouse (KVM over Ethernet) from any local computer anywhere, anytime. Save Effort with Auto-install CD With the auto-install support CD, you don’t need to wait and click “next” step by step, as the user’s preferences are pre-configured in the CD. As well, the correct device drivers have been installed properly, and it’s not necessary to update device drivers in OS, which will save time and effort of MIS.
Key Features
ASUS RS300-E6/PS2. Motherboard chipset: Intel® 3420, Processor socket: LGA 1156 (Socket H). Maximum internal memory: 32 GB. Supported storage drive interfaces: Serial ATA, RAID levels: 0, 1. Maximum graphics card memory: 8 MB. LAN controller: Intel® 82574L
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS300-E6/PS2 Intel® 3420 LGA 1156 (Socket H) Rack (1U) (90S-S5H001CEZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS300-E6/PS2 Intel® 3420 LGA 1156 (Socket H) Rack (1U) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS300-E6/PS2 Intel® 3420 LGA 1156 (Socket H) Rack (1U) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90S-S5H001CEZ.
