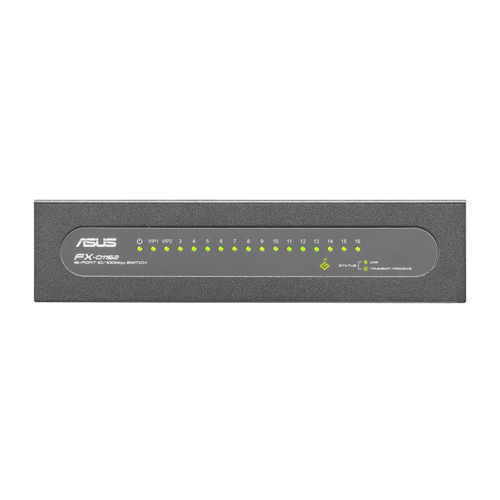

ASUS FX-D1162 V3 L2 Fast Ethernet (10/100) Black
Brand: ASUS · SKU: 90-QB633AN1N0N3UA0 · MPN: 90-QB633AN1N0N3UA0 · Category: Components
ASUS FX-D1162 V3, L2, Fast Ethernet (10/100), Full duplex. ASUS FX-D1162 V3 L2 Fast Ethernet (10/100) Black (part number 90-QB633AN1N0N3UA0) is an enterprise components product available from Server Tech Central. Key specifications include depth 118 mm, width 165 mm, height 40.5 mm, safety BSMI/LVD, weight 450 g, power led Yes, stackable No, user guide Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 118 mm |
|---|---|
| Width | 165 mm |
| Height | 40.5 mm |
| Safety | BSMI/LVD |
| Weight | 450 g |
| Power LED | Yes |
| Stackable | No |
| User guide | Yes |
| 10G support | No |
| Full duplex | Yes |
| Output power | 2.4 W |
| Switch layer | L2 |
| Rack mounting | No |
| LED indicators | LAN, Power |
| Product colour | Black |
| Power connector | DC-in jack |
| AC input voltage | 5 V |
| DC input voltage | 5 V |
| System event log | Yes |
| MAC address table | 8000 entries |
| Multicast support | No |
| Store-and-forward | Yes |
| Switching capacity | 3.2 Gbit/s |
| Flow control support | Yes |
| Warranty | 3-Year Warranty |
| Weight | 450 g |
| Dimensions | 165 mm x 118 mm x 40.5 mm |
Product Description
16 Port 10/100Mbps Switch with VIP ports Simple to use: No software needed for configuration —which makes installations easier and faster. Top Priority VIP port: 2 Built-in VIP Ports facilitate lag-free VoIP transmissions by prioritizing voice data traffic. Green Network (802.3az EEE)- Embedded energy conservation through link down standby mode, save up to 57% power consumption Embedded energy conservation save up to 57% power consumption. The new FX Series Switch provides a simple solution for gaming and voice traffic at up to 200Mbps throughput. The FX-D1162 also provides 10Mbps or 100Mbps auto-sensing connectivity for high-speed internet access. Installations is easier and faster without the need of any software configuration. With 2 built-in VIP ports, this satisfy VoIP lag-free transmission usage by ensuring that the prioritize traffic is forwarded with the least delay. The Asus Green Network features an embedded energy conservation through link down standby mode. Thus allowing users to save up to 57% power consumption. The new FX D1162 is small in size but packed with superior performance and features, providing a cost-effective connection for SMB and SOHO users. Green Network Technology-Link down mode The ASUS FX-D1162 Switch can detect PCs that are turned off even while connected and power down its ports accordingly into standby mode, significantly reducing power consumption over time. 2 Built-in VIP Ports If there is congestion in the outgoing data traffic due to insufficient bandwidth, the highest-priority data will be placed in queue, this ensures that prioritized traffic such as RTP stream of a VoIP packet is forwarded without delay. Unmanaged Switch Office/SOHO Solution
Key Features
ASUS FX-D1162 V3. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack
