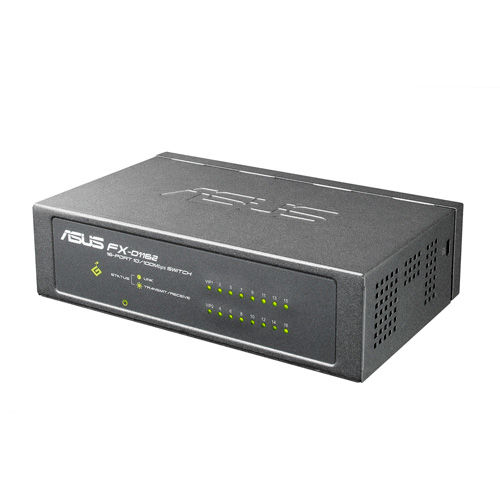

ASUS FX-D1162 V2 Grey
Brand: ASUS · SKU: 90-QB632AN1N0N3MA0 · MPN: 90-QB632AN1N0N3MA0 · Category: Components
ASUS FX-D1162 V2, Full duplex. ASUS FX-D1162 V2 Grey (part number 90-QB632AN1N0N3MA0) is an enterprise components product available from Server Tech Central. Key specifications include depth 90 mm, width 160 mm, height 43.5 mm, safety LVD, weight 450 g, power led Yes, 10g support No, full duplex Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 90 mm |
|---|---|
| Width | 160 mm |
| Height | 43.5 mm |
| Safety | LVD |
| Weight | 450 g |
| Power LED | Yes |
| 10G support | No |
| Full duplex | Yes |
| Ethernet LAN | Yes |
| Output power | 4.3 W |
| Certification | CE, FCC |
| Input current | 0.5 A |
| Auto MDI/MDI-X | Yes |
| LED indicators | LAN |
| Product colour | Grey |
| Power connector | DC-in jack |
| DC input voltage | 12 V |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Storage temperature (T-T) | -20 - 70 °C |
| Warranty | 3-Year Warranty |
| Weight | 450 g |
| Dimensions | 160 mm x 90 mm x 43.5 mm |
Product Description
The new FX Series Switch provides a simple solution for gaming and voice traffic at up to 200Mbps throughput. The FX-D1162 also provides 10Mbps or 100Mbps auto-sensing connectivity for high-speed internet access. Installations is easier and faster without the need of any software configuration. With 2 built-in VIP ports, this satisfy VoIP lag-free transmission usage by ensuring that the prioritize traffic is forwarded with the least delay. The Asus Green Network features an embedded energy conservation through link down standby mode. Thus allowing users to save up to 57% power consumption. The new FX D1162 is small in size but packed with superior performance and features, providing a cost-effective connection for SMB and SOHO users. 2 Built-in VIP Ports If there is congestion in the outgoing data traffic due to insufficient bandwidth, the highest-priority data will be placed in queue, this ensures that prioritized traffic such as RTP stream of a VoIP packet is forwarded without delay. Green Network Technology-Link down mode The ASUS FX-D1162 Switch can detect PCs that are turned off even while connected and power down its ports accordingly into standby mode, significantly reducing power consumption over time. Power On/Off Button By pressing the power button, the On/Off switch will respond accordingly to your usage.
Key Features
ASUS FX-D1162 V2. Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V. Power connector: DC-in jack
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS FX-D1162 V2 Grey (90-QB632AN1N0N3MA0) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS FX-D1162 V2 Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS FX-D1162 V2 Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-QB632AN1N0N3MA0.
