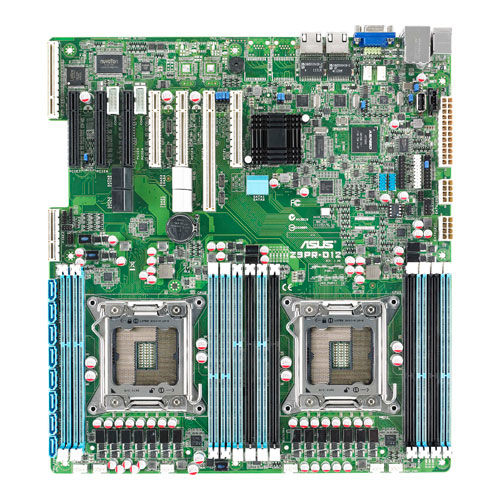

ASUS Z9PR-D12 Intel® C602 LGA 2011 (Socket R) SSI EEB
Brand: ASUS · SKU: 90-MSVE40-G0UAY00T · MPN: 90-MSVE40-G0UAY00T · Category: Components
ASUS Z9PR-D12, Intel, LGA 2011 (Socket R), E5-2600, 4, 8, 6.4,7.2,8 GT/s, DDR3-SDRAM
Specifications
| Depth | 330.2 mm |
|---|---|
| Wi-Fi | No |
| Width | 304.8 mm |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Certification | FCC, CFR47 15, B, CE, EN55022, EN55024 |
| Component for | Server |
| Microphone in | No |
| Supported QPI | 6.4,7.2,8 GT/s |
| TPM connector | Yes |
| Cables included | SATA, USB |
| Memory channels | Quad-channel |
| Processor socket | LGA 2011 (Socket R) |
| Intel Xeon series | E5-2600 |
| Parallel connector | No |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® C602 |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| Serial port headers | 1 |
| Maximum RDIMM memory | 384 GB |
| Number of DIMM slots | 12 |
| PCI Express x8 slots | 6 |
| PCI Express x16 slots | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 304.8 mm x 330.2 mm |
Product Description
Lean & Cool Design Romley Socket 2011 Serverboard Lean and Cool Design for Rack-optimized Solutions With the CPU and memory in front parallel design, the Z9PR-D12 provides excellent thermal efficiency by smooth air ventilation, making it rack optimized and suitable for data center. 7 Expansion Slots Support The Z9PR-D12 provides high expandability with 7 expansion slots, including 6 PCI-E G3 x8 slots (x8 link) and 1 x PCI-E G3 x16 slot (x16 link, switch to x8 link automatically if the slot 5 is occupied), meeting the demand of future expansion. In addition, there is also a propriety slot for ASUS PIKE SAS RAID Upgrade kit. Cutting-edge Architecture The Z9PR-D12 supports new generation Intel Xeon processor E5-2600 product family. With 12 DIMM sockets on board, the serverboard supports DDR3 1333/1600 RDIMM/UDIMM up to 384GB memory capacity, providing high computing capability. Additionally, there are more PCI-E lanes with PCI-E gen 3 support, which is suitable for the systems that require high I/O connectivity and bandwidth and supports more PCI-E devices. Complete Storage Solution Supported The Z9PR-D12 is built with SATA solutions from C602 PCH, which supports the latest SATA 6G technology. While the ASUS optional PIKE providing slim-sized and flexible storage options, direct SAS RAID upgrades can be achieved directly via a unique slot—without sacrificing expansion capability. The ASUS PIKE further provides customers with multiple I/O solutions and RAID functions; and is cost effective for customers. Onboard ASMB6 for Easy Troubleshooting The ASMB6 enables dashboard and monitor system health, remote power on /off and control, virtual media over LAN and network bonding support. In addition, the ASMB6 function is based on BIOS-level access; thus even if the server OS is down, the KVM module is still able to provide around-the-clock remote monitor and diagnosis through a user-friendly GUI (Web-based Graphical User Interface).
Key Features
ASUS Z9PR-D12. Processor manufacturer: Intel, Processor socket: LGA 2011 (Socket R), Intel Xeon series: E5-2600. Supported memory types: DDR3-SDRAM, Maximum internal memory: 384 GB, Memory channels: Quad-channel. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2300, On-board graphics card memory: 16 MB. Ethernet interface type: Gigabit Ethernet
