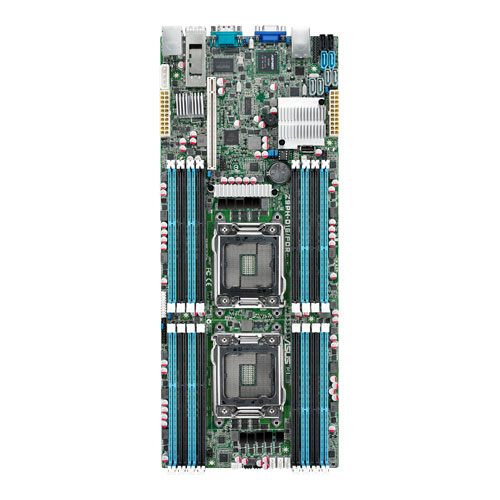

ASUS Z9PH-D16/QDR Intel® C602 LGA 2011 (Socket R)
Brand: ASUS · SKU: 90-MSVDSF-G0UAY00T · MPN: 90-MSVDSF-G0UAY00T · Category: Components
ASUS Z9PH-D16/QDR, Intel, LGA 2011 (Socket R), E5-2600, 4, 6, 8, 6.4,7.2,8 GT/s, DDR3-SDRAM
Specifications
| Depth | 424.2 mm |
|---|---|
| Width | 172.7 mm |
| User guide | Yes |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Component for | Server |
| Supported QPI | 6.4,7.2,8 GT/s |
| TPM connector | Yes |
| Processor socket | LGA 2011 (Socket R) |
| Intel Xeon series | E5-2600 |
| USB 2.0 connectors | 1 |
| Motherboard chipset | Intel® C602 |
| Maximum RDIMM memory | 512 GB |
| Number of DIMM slots | 16 |
| PCI Express x16 slots | 1 |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| Supported memory types | DDR3-SDRAM |
| USB 2.0 ports quantity | 2 |
| Ethernet interface type | Gigabit Ethernet |
| Maximum internal memory | 32 GB |
| PCI Express slots version | 3.0 |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 172.7 mm x 424.2 mm |
Product Description
High density datacenter and high performance computing High density 16–DIMM memory design ASUS Z9PH-D16 boards are equipped with 16 DDR3-1600 DIMM slots in a half-size serverboard, providing high density for datacenter environments, with up to 25% more bandwidth compared to previous DDR3-1333 technology. Support for new LRDIMM gives customers access to as much as 32GB per memory module. With LRDIMM onboard, the Z9PH-D16 Series can take up to 512GB. New InfiniBand® QDR connectivity (Z9PH-D16/QDR) With discrete Mellanox ConnectX-3, the Z9PH-D16/QDR increases networking I/O abilities and improves green data center efficiency. High density, high bandwidth, and low latency all combine on a half SSI-sized serverbord. ASMB6-iKVM upgrade kit for easy troubleshooting The ASMB6-iKVM enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB6 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface through all major browsers. Cutting-edge architecture The Z9PH-D16 Series supports new Intel® E5-2600 series processors (Sandy Bridge-EP). Through the expertise of ASUS research and development, the series is also ready to support upcoming E5-2600 V2 processors (Ivy Bridge-EP), protecting customer investment with improved future-proofing. Alongside new Intel® E5-2600 series processors, the Z9PH-D16/QDR provides new PCI Express 3.0 expandability, which offers higher bandwidth (up to 8GT per lane) to meet the requirements of intense HPC applications.
Key Features
ASUS Z9PH-D16/QDR. Processor manufacturer: Intel, Processor socket: LGA 2011 (Socket R), Intel Xeon series: E5-2600. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Supported memory clock speeds: 1066,1333,1600 MHz. Supported storage drive interfaces: Serial Attached SCSI (SAS), RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2300, On-board graphics card memory: 16 MB. Ethernet interface type: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS Z9PH-D16/QDR Intel® C602 LGA 2011 (Socket R) (90-MSVDSF-G0UAY00T) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS Z9PH-D16/QDR Intel® C602 LGA 2011 (Socket R) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS Z9PH-D16/QDR Intel® C602 LGA 2011 (Socket R) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MSVDSF-G0UAY00T.
