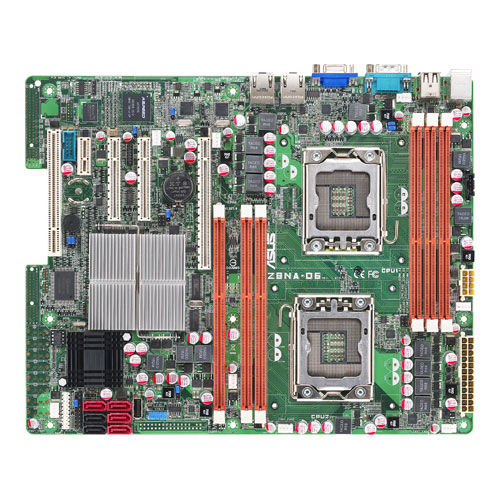

ASUS Z8NA-D6C Intel® 5500 ATX
Brand: ASUS · SKU: 90-MSVCJ1-G0UAY00Z · MPN: 90-MSVCJ1-G0UAY00Z · Category: Components
ASUS Z8NA-D6C, Intel, E5500, E5600, L5500, L5600, X5500, X5600, 6.4 GT/s, 2, 4, 6, 4.8,5.86,6.4 GT/s, DDR3-SDRAM
Specifications
| Depth | 243.8 mm |
|---|---|
| Wi-Fi | No |
| Width | 304.8 mm |
| PCI slots | 1 |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Certification | CE, EN55022 & EN55024 |
| Component for | Server |
| Microphone in | No |
| Supported QPI | 4.8,5.86,6.4 GT/s |
| LAN controller | Intel® 82574L |
| Cables included | SATA |
| Memory channels | Triple-channel |
| System bus rate | 6.4 GT/s |
| Bundled software | ASWM 2.0 |
| Intel Xeon series | E5500, E5600, L5500, L5600, X5500, X5600 |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® 5500 |
| PS/2 ports quantity | 2 |
| Serial port headers | 1 |
| Maximum RDIMM memory | 96 GB |
| Maximum UDIMM memory | 24 GB |
| Number of DIMM slots | 6 |
| Warranty | 3-Year Warranty |
| Dimensions | 304.8 mm x 243.8 mm |
Product Description
Dual 1366 Socket in ATX. Z8NA-D6C is designed in ATX form factor, namely 12” x 9.6”, which is the first slim size Dual Processor server & workstation motherboard in the market and can be fitted in your desktop PC chassis for cost-effective use. Support ATX (Desktop) and SSI (Server) Power Supply. Z8NA-D6C is built with 24+8pin power connector to support both SSI & ATX power supply, the former is suitable for best performance & expandability use, and the latter for cost effective usage, whose price is much lower than that of SSI power supply. Dual Use for Server & Entry Workstation. Z8NA-D6C support PCI-E Gen2 x16 (x16 link) not only for I/O but graphic card as well. With optional MIO audio card, Z8NA-D6C becomes a just enough Workstation for cost –sensitive SMB & SOHO. Reliable Data Protection. Z8NA-D6C is built with 6-port SATAII to support RAID 0, 1, 10, 5 (from Intel Matrix Storage and for Windows only), which provides cost-effective data protection for customers.
Key Features
ASUS Z8NA-D6C. Processor manufacturer: Intel, Intel Xeon series: E5500, E5600, L5500, L5600, X5500, X5600, System bus rate: 6.4 GT/s. Supported memory types: DDR3-SDRAM, Maximum internal memory: 96 GB, Memory channels: Triple-channel. Supported storage drive interfaces: SATA II, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2050, On-board graphics card memory: 8 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Intel® 82574L
