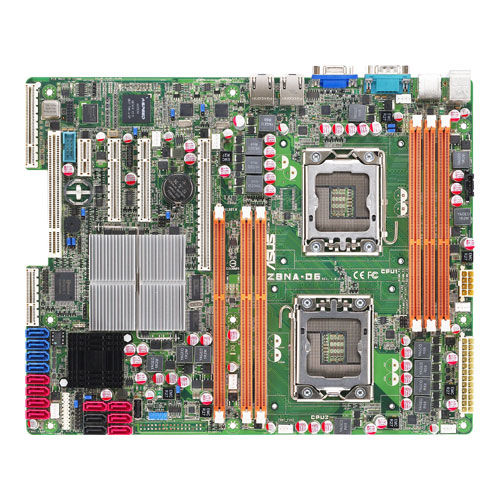

ASUS Z8NA-D6 Intel® 5500 Socket B (LGA 1366) ATX
Brand: ASUS · SKU: 90-MSVCI2-G0UAY0YZ · MPN: 90-MSVCI2-G0UAY0YZ · Category: Components
ASUS Z8NA-D6, Intel, Socket B (LGA 1366), E5500, E5600, L5500, L5600, X5500, X5600, 4, 6, 4.8,5.86,6.4 GT/s, DDR3-SDRAM
Specifications
| Depth | 330.2 mm |
|---|---|
| Width | 244 mm |
| PCI slots | 1 |
| User guide | Yes |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Certification | FCC, CFR47 15, B, CE, EN55022, EN55024,C |
| Microphone in | No |
| Supported QPI | 4.8,5.86,6.4 GT/s |
| TPM connector | No |
| LAN controller | Intel® 82574L |
| Cables included | SATA |
| Processor socket | Socket B (LGA 1366) |
| Intel Xeon series | E5500, E5600, L5500, L5600, X5500, X5600 |
| Parallel connector | No |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® 5500 |
| PS/2 ports quantity | 1 |
| Power fan connector | No |
| Serial port headers | 1 |
| Maximum RDIMM memory | 96 GB |
| Maximum UDIMM memory | 24 GB |
| Number of DIMM slots | 6 |
| PCI Express x1 slots | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 330.2 mm |
Product Description
First Dual 1366 Socket in 12” x 9.6” ATX Form Factor Dual 1366 Socket in ATX Z8NA-D6 is designed in ATX form factor, namely 12” x 9.6”, which is the first slim size Dual Processor server & workstation motherboard in the market and can be fitted in your desktop PC chassis for cost-effective use. Support ATX (Desktop) and SSI (Server) Power Supply Z8NA-D6 is built with 24+8pin power connector to support both SSI & ATX power supply, the former is suitable for best performance & expandability use, and the latter for cost effective usage, whose price is much lower than that of SSI power supply. Dual Use for Server & Entry Workstation Z8NA-D6 support PCI-E Gen2 x16 (x16 link) not only for I/O but graphic card as well. With optional MIO audio card, Z8NA-D6 becomes a just enough Workstation for cost –sensitive SMB & SOHO. Reliable Data Protection Z8NA-D6 is built with 6-port SATAII to support RAID 0, 1, 10, 5 (from Intel Matrix Storage and for Windows only), and RAID 0, 1, 10 from LSI® MegaRAID, for Linux/Windows. Moreover, Z8NA-D6 supports optional SAS RAID cards, which are PIKE 1064E/1068E (RAID 0, 1, 1E), PIKE 1078 (H/W RAID 5, 6, 50, 60), and PIKE 6480 (RAID 0, 1, 10, 5).
Key Features
ASUS Z8NA-D6. Processor manufacturer: Intel, Processor socket: Socket B (LGA 1366), Intel Xeon series: E5500, E5600, L5500, L5600, X5500, X5600. Supported memory types: DDR3-SDRAM, Maximum internal memory: 96 GB, Supported memory clock speeds: 800,1066,1333 MHz. Supported storage drive interfaces: SATA II, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2050, On-board graphics card memory: 8 MB. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® 82574L
