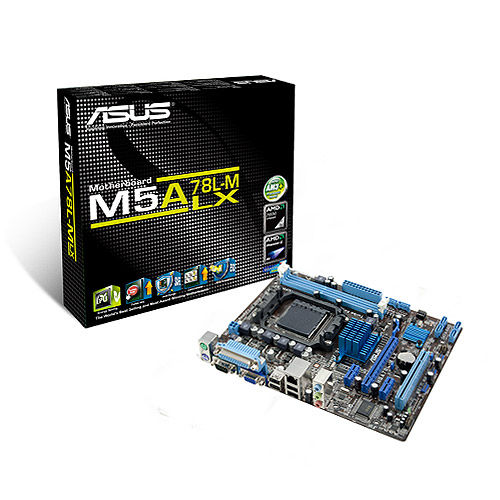

ASUS M5A78L-M LX AMD 760G Socket AM3 micro ATX
Brand: ASUS · SKU: 90-MIBFW0-G0EAY0 · MPN: 90-MIBFW0-G0EAY0 · Category: Components
ASUS M5A78L-M LX, AMD, Socket AM3, AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6, 5.2 GT/s, 8 GB, Dual-channel. ASUS M5A78L-M LX AMD 760G Socket AM3 micro ATX (part number 90-MIBFW0-G0EAY0) is an enterprise components product available from Server Tech Central. Key specifications include depth 203 mm, width 244 mm, bios type AMI, pci slots 1, audio chip Realtek ALC887, raid levels 0, 1, 10, JBOD, acpi version 2.0a, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 203 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| PCI slots | 1 |
| Audio chip | Realtek ALC887 |
| RAID levels | 0, 1, 10, JBOD |
| ACPI version | 2.0a |
| Component for | PC |
| Graphics card | Radeon 3000 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| Memory channels | Dual-channel |
| System bus rate | 5.2 GT/s |
| BIOS memory size | 16 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 3 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | AMD 760G |
| Networking features | Gigabit Ethernet |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 203 mm |
Product Description
AMD® FX™ /Phenom™II /Athlon™II /Sempron™ 100 Series Processors (Socket AM3+) This motherboard supports AMD® AM3+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process. Core Unlocker Unleash True Core Performance Intelligently ASUS Core Unlocker simplifies the activation of a latent AMD® CPU—with just pressing a key. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes. EPU-4 Engine System Level Energy Saving The new ASUS EPU - the world´s first power saving engine, has been upgraded to a new 4-engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. The EPU automatically provides the most appropriate power usage for the CPU, VGA card, hard drives and CPU cooler fan - helping save power and money. Turbo Key ASUS Turbo Key allows the user to turn the PC power button into a physical overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!
Key Features
ASUS M5A78L-M LX. Processor manufacturer: AMD, Processor socket: Socket AM3, Compatible processor series: AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6. Maximum internal memory: 8 GB, Memory channels: Dual-channel, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 10, JBOD. Maximum graphics card memory: 1024 MB, Graphics card family: AMD, Graphics card: Radeon 3000. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet
