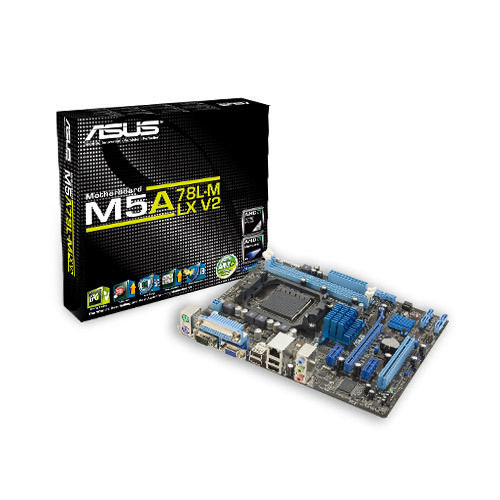

ASUS M5A78L-M LX V2 AMD 760G Socket AM3+ micro ATX
Brand: ASUS · SKU: 90-MIBHH0-G0AEY0GZ · MPN: 90-MIBHH0-G0AEY0GZ · Category: Components
ASUS M5A78L-M LX V2, AMD, Socket AM3+, AMD Athlon II, AMD Sempron, 5.2 GT/s, DDR3-SDRAM, 8 GB. ASUS M5A78L-M LX V2 AMD 760G Socket AM3+ micro ATX (part number 90-MIBHH0-G0AEY0GZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 203 mm, width 244 mm, bios type AMI, pci slots 1, audio chip Realtek ALC887, raid levels 0, 1, 10, JBOD, acpi version 2.0a, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 203 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| PCI slots | 1 |
| Audio chip | Realtek ALC887 |
| RAID levels | 0, 1, 10, JBOD |
| ACPI version | 2.0a |
| Component for | PC |
| Graphics card | Radeon 3000 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| Cables included | SATA |
| Memory channels | Dual-channel |
| System bus rate | 5.2 GT/s |
| BIOS memory size | 16 Mbit |
| Processor socket | Socket AM3+ |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Graphics controller | 1024 |
| Motherboard chipset | AMD 760G |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 203 mm |
Product Description
This motherboard supports AMD® AM3+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process. The new ASUS EPU - the world’s first power saving engine, has been upgraded to a new 4-engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. The EPU automatically provides the most appropriate power usage for the CPU, VGA card, hard drives and CPU cooler fan - helping save power and money. Unleash True Core Performance Intelligently ASUS Core Unlocker simplifies the activation of a latent AMD® CPU—with just a simply key. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes. ASUS Turbo Key allows the user to turn the PC power button into a physical overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!
Key Features
ASUS M5A78L-M LX V2. Processor manufacturer: AMD, Processor socket: Socket AM3+, Compatible processor series: AMD Athlon II, AMD Sempron. Supported memory types: DDR3-SDRAM, Maximum internal memory: 8 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA II, RAID levels: 0, 1, 10, JBOD. Graphics card: Radeon 3000. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M5A78L-M LX V2 AMD 760G Socket AM3+ micro ATX (90-MIBHH0-G0AEY0GZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M5A78L-M LX V2 AMD 760G Socket AM3+ micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M5A78L-M LX V2 AMD 760G Socket AM3+ micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIBHH0-G0AEY0GZ.
