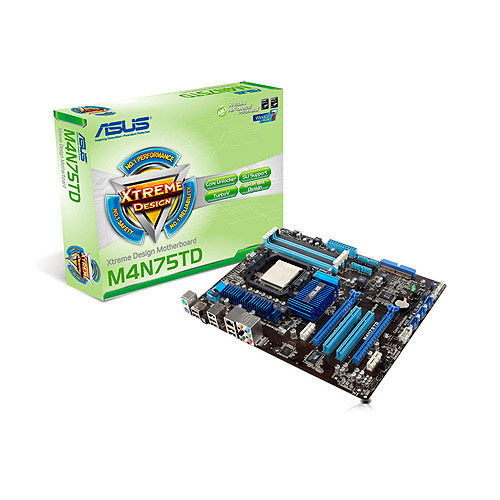

ASUS M4N75TD Socket AM3 ATX
Brand: ASUS · SKU: 90-MIBCW0-G0EAY00Z · MPN: 90-MIBCW0-G0EAY00Z · Category: Components
ASUS M4N75TD, AMD, Socket AM3, AMD Athlon II, AMD Sempron, 5.2 GT/s, DDR3-SDRAM, 16 GB. ASUS M4N75TD Socket AM3 ATX (part number 90-MIBCW0-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bios type AMI, pci slots 2, audio chip VIA VT1708S, raid levels 0, 1, 0+1, 5, JBOD, acpi version 2.0, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AMI |
| PCI slots | 2 |
| Audio chip | VIA VT1708S |
| RAID levels | 0, 1, 0+1, 5, JBOD |
| ACPI version | 2.0 |
| Component for | PC |
| Microphone in | Yes |
| Cables included | SATA |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| System bus rate | 5.2 GT/s |
| BIOS memory size | 8 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. HyperTransport™ 3.0 technology provides 2.6 times more bandwidth than HyperTransport™ 1.0, radically improving system efficiency to create a smoother, faster computing environment. NVIDIA nForce® 750a SLI® media and communications processors (MCPs) are the foundation for the world’s ultimate gaming PC. It supports the NVIDIA® Scalable Link Interface (SLI) technology that allows two graphics processing units (GPUs) in a single system. The NVIDIA nFORCE® 750a SLI® chipset also supports six (6) Serial ATA 3 Gb/s devices, PCI Express x16 slots with NVIDIA® SLI tm support at dual x8 mode, and up to 12 USB 2.0 ports. This motherboard supports DDR3 2000(O.C.) that provides faster data transfer rate and more bandwith to increase memory computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications.
Key Features
ASUS M4N75TD. Processor manufacturer: AMD, Processor socket: Socket AM3, Compatible processor series: AMD Athlon II, AMD Sempron. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA II, RAID levels: 0, 1, 0+1, 5, JBOD. Parallel processing technology support: 2-Way SLI. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Networking features: Gigabit Ethernet
