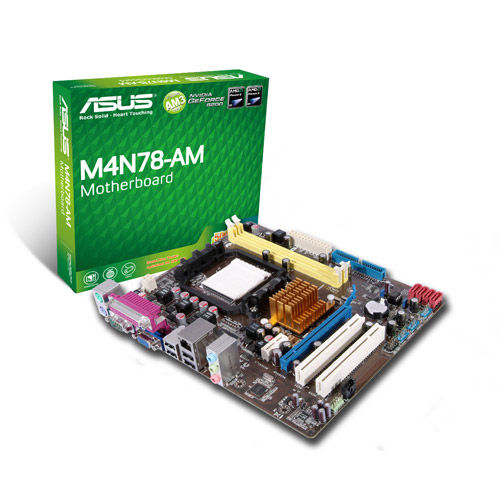

ASUS M4N78-AM Socket AM3+ micro ATX
Brand: ASUS · SKU: 90-MIB7N0-G0EAY0GZ · MPN: 90-MIB7N0-G0EAY0GZ · Category: Components
ASUS M4N78-AM, AMD, Socket AM3+, AMD Phenom X3, AMD Phenom X4, DDR2-SDRAM, 8 GB, DIMM. ASUS M4N78-AM Socket AM3+ micro ATX (part number 90-MIB7N0-G0EAY0GZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 203 mm, width 244 mm, bios type AMI, pci slots 2, audio chip VIA VT1708S, raid levels 0, 1, 0+1, 5, JBOD, acpi version 2.0a, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 203 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| PCI slots | 2 |
| Audio chip | VIA VT1708S |
| RAID levels | 0, 1, 0+1, 5, JBOD |
| ACPI version | 2.0a |
| Component for | PC |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Memory channels | Dual-channel |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3+ |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Graphics controller | NVIDIA nForce 8200 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 203 mm |
Product Description
Supports AMD AM2+/AM2 for Phenom FX/Phenom/Athlon 64/ Sempron/Athlon 64 X2/ Athlon 64 FX/ processors and Compatible with Phenom™ II/ Athlon™ X4/ Athlon™ X3/ Athlon™ X2 (AM3 CPU) The motherboard supports AMD AM2+/AM2 for Phenom FX/Phenom/Athlon 64/ Sempron/Athlon 64 X2/ Athlon 64 FX/ processors and compatible with Phenom™ II/ Athlon™ X4/ Athlon™ X3/ Athlon™ X2 (AM3 CPU)with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 5200 MT/s HyperTransport3.0 Bus, dual-channel un-buffered DDR2 1066 memory support and AMD Cool 'n' Quiet! Technology. HyperTransport 3.0 Support HyperTransport™ 3.0 technology provides 2.6 times more bandwidth than HyperTransport™ 1.0, radically improving system efficiency to create a smoother, faster computing environment. Dual channel DDR2 1066 This motherboard can support native DDR2 1066. It provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications. 64-bit CPU support 64-bit computing, the technology to replace 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture. NVIDIA® GeForce™ 8200 NVIDIA GeForce 8200 offers the latest support of DirectX10 graphics features. It also supports HyperTransport™ 3.0 interface, PCI Express™ 2.0 bus architecture, Serial ATA 3 Gb/s devices and is optimized with AMD’s latest AM2+ and multi-core CPUs to provide excellent system performance. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming. Serial ATA 3Gb/s This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification, allowing RAID 0, RAID 1,RAID 0+1,RAID 5 and JBOD configurations for five SATA connectors. Gigabit Lan This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency. High Definition Audio Enjoy high-end sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer. AMD Cool ´n´ Quiet! Technology M4N78-AM supports AMD Cool ´n´ Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. ASUS Q-Fan ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation. Max. 10 USB 2.0 ports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers. ASUS CrashFree BIOS3 The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip. ASUS EZ Flash2 EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. MyLogo2 Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS M4N78-AM. Processor manufacturer: AMD, Processor socket: Socket AM3+, Compatible processor series: AMD Phenom X3, AMD Phenom X4. Supported memory types: DDR2-SDRAM, Maximum internal memory: 8 GB, Memory slots type: DIMM. Supported storage drive interfaces: IDE, SATA II, RAID levels: 0, 1, 0+1, 5, JBOD. Maximum graphics card memory: 512 MB. Networking features: Gigabit Ethernet
