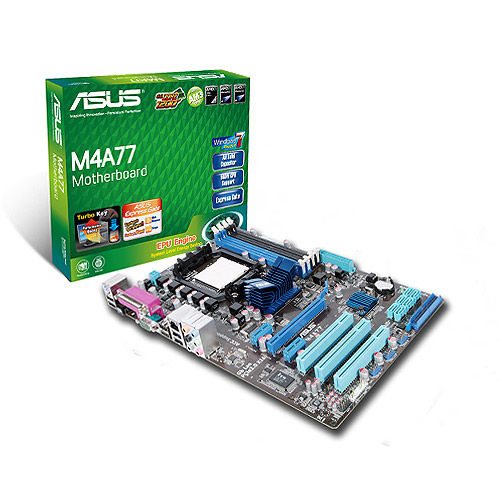

ASUS M4A77 AMD 770 Socket AM3 ATX
Brand: ASUS · SKU: 90-MIBBL0-G0EAY0GZ · MPN: 90-MIBBL0-G0EAY0GZ · Category: Components
ASUS M4A77, AMD, Socket AM3, 16 GB, ECC & Non-ECC, 0, 1, 0+1, JBOD, Realtek RTL8112L. ASUS M4A77 AMD 770 Socket AM3 ATX (part number 90-MIBBL0-G0EAY0GZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 214 mm, width 306 mm, pci slots 3, audio chip VIA VT1818S, raid levels 0, 1, 0+1, JBOD, lan controller Realtek RTL8112L, s/pdif out port Yes, bios memory size 64 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 214 mm |
|---|---|
| Width | 306 mm |
| PCI slots | 3 |
| Audio chip | VIA VT1818S |
| RAID levels | 0, 1, 0+1, JBOD |
| LAN controller | Realtek RTL8112L |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | AMD 770 |
| Networking features | Gigabit |
| PS/2 ports quantity | 1 |
| PCI Express x1 slots | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| Warranty | 3-Year Warranty |
| Dimensions | 306 mm x 214 mm |
Product Description
AMD Phenom II/Athlon II/Sempron 100 Series Processors(AM3 CPU) This motherboard supports AMD AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus. This motherboard also supports AMD CPUs in the new 45nm manufacturing process. AMD Phenom X4/ Phenom X3/ Athlon X2/ Athlon/ Sempron processors (socket AM2+/AM2) This motherboard supports AMD Socket AM2+ multi-core processors. It features dual-channel DDR2 1066 memory support, data transfer rate up to 5200MT/s via HyperTransport 3.0 based system bus, and AMD Cool ´n´ Quiet Technology. AMD 770 chipset AMD 770 Chipset is designed to support up to 5200MT/s HyperTransport 3.0 (HT 3.0) interface speed and PCI Express 2.0 x16 graphics. It is optimized with AMD’s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities. Dual DDR2 1066 This motherboard can support native DDR2 1066. It provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications. *DDR2 1066 is supported by some of the AM2+ CPUs only. Refer to www.asus.com for the supported CPU models.
Key Features
ASUS M4A77. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 0+1, JBOD. LAN controller: Realtek RTL8112L, Networking features: Gigabit. Motherboard form factor: ATX, Motherboard chipset: AMD 770, Audio output channels: 7.1 channels
