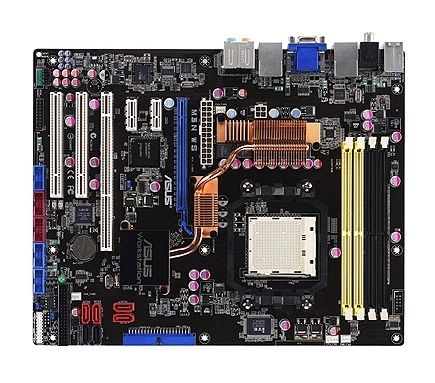

ASUS M3N WS Socket AM2 ATX
Brand: ASUS · SKU: 90-MIB3Z0-G0EAY00Z · MPN: 90-MIB3Z0-G0EAY00Z · Category: Components
ASUS M3N WS, AMD, Socket AM2, 8 GB, Non-ECC, 0, 1, 0+1, 5, JBOD, Realtek RTL8111C. ASUS M3N WS Socket AM2 ATX (part number 90-MIB3Z0-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 305 mm, audio chip Realtek ALC888, raid levels 0, 1, 0+1, 5, JBOD, lan controller Realtek RTL8111C, cd/aux audio in Yes, expansion slots 1 x PCIe 2.0 x16 2 x PCIe x1 2 x PCI 2.2 1 x PCI-X, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC888 |
| RAID levels | 0, 1, 0+1, 5, JBOD |
| LAN controller | Realtek RTL8111C |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCIe 2.0 x16 2 x PCIe x1 2 x PCI 2.2 1 x PCI-X |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 6 |
| Graphics controller | NVIDIA GeForce 8 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 6 |
| Maximum internal memory | 8 GB |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 245 mm |
Product Description
AMD® Socket AM2+ Phenom™ FX / Phenom™ / Athlon™ / Sempron™ Support This motherboard supports AMD® Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. AMD Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron Support This motherboard supports AMD® Socket AM2 single-core Athlon™ 64 / Sempron™ and dual-core Athlon™ 64 X2 / Athlon™ 64 FX processors with 2MB / 1MB / 512KB L2 cache based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport™-based system bus, dual-channel un-buffered DDR2 800 memory support, and AMD® Cool ´n´ Quiet™ Technology. HyperTransport 3.0 Support Provides 2.6 times more bandwidth than HT1.0 that radically improves system efficiency for a smoother, faster computing environment. Native DDR2 1066 This motherboard is the first AMD® platform with native DDR2 1066 support. It provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications. NVIDIA GeForce® 8200 NVIDIA® GeForce 8200 offers the latest support of Hybrid SLI Technology, DirectX® 10 graphics features, HD video playback with HDMI/DVI output. It also supports HyperTransport™ 3.0 interface, PCI Express™ 2.0 bus architecture, Serial ATA 3 Gb/s devices and is optimized with AMD’s latest AM2+ and multi-core CPUs to provide excellent system performance. PCIe 2.0 support This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. AMD Cool ´n´ Quiet! Technology M3N WS supports AMD Cool ´n´ Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. AI Gear 2 AI Gear 2 allows you to choose from profiles to adjust CPU frequency and vCore voltage, minimizing system noise and saving CPU power consumption at most. You can real-time change the mode under operating system to suit your needs. AI Nap With AI Nap, the system can continue running at minimum power and noise when you are temporarily away. To wake the system and return to the OS environment, simply click the mouse or press a key. ASUS Q-Fan 2 Adjusts both CPU fan and chassis fan speeds according to system loading ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. Up to 20°C(36°F) Cooler - Stack Cool 2 Effective Fanless Heat Dissipation at 0dB Stack Cool 2 is a fanless cooling solution offered exclusively by ASUS. It effectively and noiselessly transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation - making temperatures cooler by up to 20°C. Uses 100% All High-quality Conductive Polymer Capacitors! This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
Key Features
ASUS M3N WS. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: Non-ECC. RAID levels: 0, 1, 0+1, 5, JBOD. LAN controller: Realtek RTL8111C. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888
