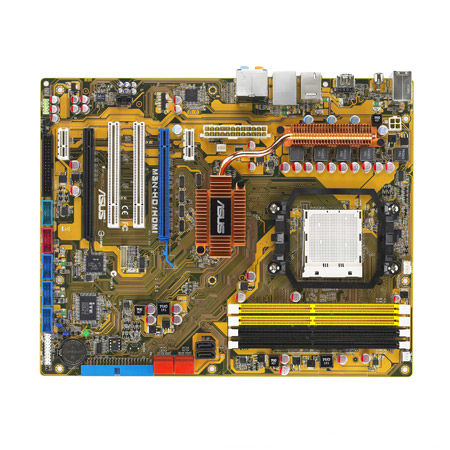

ASUS M3N-HD/HDMI Socket AM2 ATX
Brand: ASUS · SKU: 90-MIB3J0-G0EAY00Z · MPN: 90-MIB3J0-G0EAY00Z · Category: Components
ASUS M3N-HD/HDMI, AMD, Socket AM2, 8 GB, ECC & Non-ECC, 0, 1, 0+1, 5, JBOD, 512 MB. ASUS M3N-HD/HDMI Socket AM2 ATX (part number 90-MIB3J0-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bios type Award, pci slots 3, audio chip Realtek ALC1200, raid levels 0, 1, 0+1, 5, JBOD, microphone in Yes, cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| BIOS type | Award |
| PCI slots | 3 |
| Audio chip | Realtek ALC1200 |
| RAID levels | 0, 1, 0+1, 5, JBOD |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Cables included | SATA |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Bundled software | Express Gate Lite, ASUS PC Probe II, ASUS Update, Anti-virus software (OEM) |
| Drivers included | Yes |
| Processor socket | Socket AM2 |
| Special features | D-Sub module, HDMI to DVI connector, Q-Shield, User's manual, 3 in 1 Q-connector |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Graphics controller | NVIDIA GeForce 8 Series |
| HDMI ports quantity | 1 |
| Networking features | Atheros F1 Gigabit PHY AI NET 2 |
| PS/2 ports quantity | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
AMD® Socket AM2+ Phenom™ FX / Phenom™ / Athlon™ Support This motherboard supports AMD AMD® Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. AMD® Socket AM2 Athlon™/Sempron™ CPU Support This motherboard supports AMD® Socket AM2 Athlon™/Sempron™ processors. It features 2000/1600 MT/s HyperTransport™-based system bus, dual-channel un-buffered DDR2 800 memory support, and AMD® Cool 'n' Quiet™ Technology. Native DDR2 1066 This motherboard supports native DDR2 1066. It provides faster data transfer rate and more bandwidth to increase memory data transfer rate and computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications. *DDR2 1066 is supported by some of the AM2+ CPUs only. Refer to www.asus.com for the supported CPU models. NVIDIA nForce® 750a SLI™ NVIDIA nForce® 750a SLI™ media and communications processors (MCPs) are the foundation for the world’s ultimate gaming PC. Experience spectacular DirectX® 10 gaming with the best platform for GeForce Graphic Processing Units (GPUs). PCIe 2.0 support Double Speed; Double Bandwidth This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. Hybrid SLI Support GeForce® Boost—Boosted Performance with Onboard GPU and Discrete Graphics Card HybridPower™—Intelligent Graphics Power-Savings and Quiet Operations Hybrid SLI™ technology is a unique hybrid multi-GPU technology. It includes two primary features: GeForce Boost and HybridPower™. GeForce Boost turbo-charges performance of discrete graphics cards when combined with the motherboard GPUs. HybridPower™ unleashes graphics performance for demanding 3D applications and enables low-power operation for everyday computing needs. * GeForce® Boost and HybridPower™ are on select GeForce® GPUs. Visit www.nvidia.com/hybridsli for more information. HDMI Support Enjoy Full HD 1080p Multimedia Home-Theater Entertainment High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals through a single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience. HDMI/DVI/RGB Support Flexible graphics alternatives With bundled HDMI to DVI conversion adapter, this motherboard can support both DVI and HDMI output. DVI (Digital Visual Interface) provides high quality visuals for digital display devices like LCD monitors. The interface of this motherboard supports digital HDMI/DVI and analog D-Sub standards. 4+1 Phase Power Design Longer Life & Higher Efficiency! Unleashes ultimate memory performances with independent power to core components, while providing fast transient response and stability for the CPU under heavy loading or overclocking modes. AI Gear 2 AI Gear 2 allows you to choose from profiles to adjust CPU frequency and vCore voltage, minimizing system noise and saving CPU power consumption at most. You can real-time change the mode under operating system to suit your needs. AI Nap With AI Nap, the system can continue running at minimum power and noise when you are temporarily away. To wake the system and return to the OS environment, simply click the mouse or press a key. ASUS Q-Fan 2 Adjusts both CPU fan and chassis fan speeds according to system loading ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. Express Gate Lite Instant Internet Access without Entering Windows! With only 5 seconds boot-up time, the ASUS Express Gate Lite allows you to instantly surf the Internet without entering Windows. You can now enjoy Skype, IM, YouTube, webmail and internet file downloads and sharing whenever and wherever you want! Q-Shield Make Connection Quick and Accurate! The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate. Q-Connector Make Connection Quick and Accurate! The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate. O.C. Profile Conveniently store or load multiple BIOS settings The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings. Noise Filter
Key Features
ASUS M3N-HD/HDMI. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 0+1, 5, JBOD. Maximum graphics card memory: 512 MB. Networking features: Atheros F1 Gigabit PHY AI NET 2
