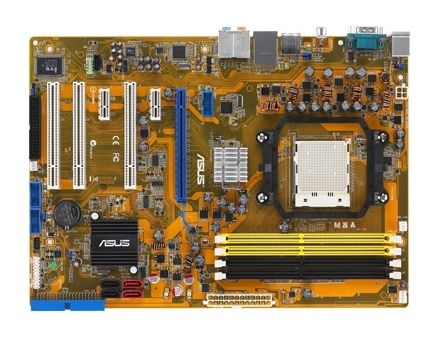

ASUS M3A AMD 770 Socket AM2 ATX
Brand: ASUS · SKU: 90-MIB2Q0-G0EAY00Z · MPN: 90-MIB2Q0-G0EAY00Z · Category: Components
ASUS M3A, AMD, Socket AM2, 8 GB, ECC & Non-ECC, ATX, AMD 770. ASUS M3A AMD 770 Socket AM2 ATX (part number 90-MIB2Q0-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 218 mm, width 305 mm, audio chip Realtek ALC883, microphone in Yes, cd/aux audio in Yes, expansion slots 1 x PCIe x16 2 x PCIe x1 3 x PCI 2.2, bios memory size 64 Mbit, processor socket Socket AM2. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 218 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC883 |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCIe x16 2 x PCIe x1 3 x PCI 2.2 |
| BIOS memory size | 64 Mbit |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 6 |
| Motherboard chipset | AMD 770 |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Chassis intrusion connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 218 mm |
Product Description
AMD® AM2+ Quad-Core CPU/AM2 CPU Support The First Full Speed AMD Phenom™ Quad-Core Ready Motherboard This motherboard supports AMD® Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. AMD 770 chipset AMD 770 Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express™ 2.0 x16 graphics. It is optimized with AMD®’s latest AM2+ and multi-core CPUs to provide excellent system performance and overclocking capabilities. HyperTransport 3.0 Suport Latest System Bus Technology Provides 2.6 times more bandwidth than HT1.0 that radically improves system efficiency for a smoother, faster computing environment. Native DDR2 1066 Support The First Native DDR2-1066 AMD Platform This motherboard is the 1st AMD platform with native DDR2 1066 support. It provides faster data access and more bandwidth for increased memory computing efficiency. - enhancing performance for 3D graphics and other memory demanding applications. 4+1 Phase Power Design Longer Life, & Higher Efficiency! Unleashes ultimate memory performances with independent power to core components, while providing fast transient response and stability for the CPU under heavy loading or overclocking modes. PCIe 2.0 support Double Speed; Double Bandwidth This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
Key Features
ASUS M3A. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. Motherboard form factor: ATX, Motherboard chipset: AMD 770, Audio output channels: 7.1 channels. BIOS memory size: 64 Mbit. Width: 305 mm, Depth: 218 mm
