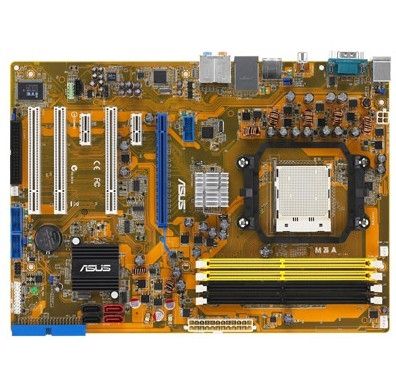

ASUS M3A motherboard AMD 770 Socket AM2 ATX
Brand: ASUS · SKU: M3A · MPN: M3A · Category: Components
ASUS M3A, AMD, Socket AM2, 8 GB, ECC & Non-ECC, 0, 1, 0+1, Gigabit Ethernet. ASUS M3A motherboard AMD 770 Socket AM2 ATX (part number M3A) is an enterprise components product available from Server Tech Central. Key specifications include depth 218 mm, width 305 mm, audio chip Realtek ALC883, raid levels 0, 1, 0+1, microphone in Yes, cd/aux audio in Yes, expansion slots 1 x PCIe x16 2 x PCIe x1 3 x PCI 2.2, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 218 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC883 |
| RAID levels | 0, 1, 0+1 |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCIe x16 2 x PCIe x1 3 x PCI 2.2 |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | Socket AM2 |
| Special features | - ASUS AI Gear 2 - ASUS AI Nap - ASUS Q-Fan 2 - ASUS Q-Shield - ASUS Q-Connector - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | AMD 770 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Overclocking features | SFS ASUS C.P.R. |
| Serial ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 218 mm |
Product Description
AMD® AM2+ Quad-Core CPU/AM2 CPU Support The First Full Speed AMD Phenom™ Quad-Core Ready Motherboard This motherboard supports AMD® Socket AM2+ multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR2 1066 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. AMD 770 chipset AMD 770 Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express™ 2.0 x16 graphics. It is optimized with AMD®’s latest AM2+ and multi-core CPUs to provide excellent system performance and overclocking capabilities. AMD Cool ´n´ Quiet! Technology Supports AMD Cool ´n´ Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. ASUS Q-Fan 2 ASUS Q-Fan 2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. Serial ATA 3Gb/s RAID This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. The onboard NVIDIA nForce® 560 SLI™ MCP allows RAID 0, RAID 1, RAID 0+1 configurations for four SATA connectors. ASUS Q-Connector The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate. ASUS CrashFree BIOS 3 The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip. ASUS EZ Flash 2 EZ Flash 2 is a user-friendly BIOS update utility. Simply press the pre-defined hotkey to launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS M3A. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 0+1. Networking features: Gigabit Ethernet. Motherboard form factor: ATX, Motherboard chipset: AMD 770, Audio output channels: 7.1 channels
