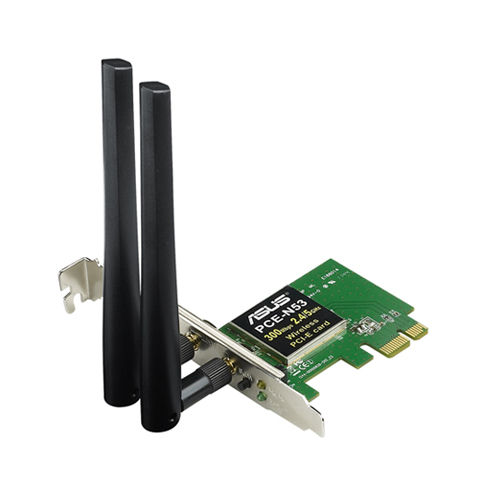

ASUS PCE-N53 Internal WLAN 300 Mbit/s
Brand: ASUS · SKU: 90-IGY4003M00-0PA0 · MPN: 90-IGY4003M00-0PA0 · Category: Components
ASUS PCE-N53, Internal, Wireless, PCI Express, WLAN, Wi-Fi 4 (802.11n), 300 Mbit/s. ASUS PCE-N53 Internal WLAN 300 Mbit/s (part number 90-IGY4003M00-0PA0) is an enterprise components product available from Server Tech Central. Key specifications include wi-fi Yes, weight 45.8 g, internal Yes, interface WLAN, power led Yes, modulation CCK, DBPSK, DQPSK, OFDM, wi-fi band Dual-band (2.4 GHz / 5 GHz), link/act led Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Wi-Fi | Yes |
|---|---|
| Weight | 45.8 g |
| Internal | Yes |
| Interface | WLAN |
| Power LED | Yes |
| Modulation | CCK, DBPSK, DQPSK, OFDM |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Link/Act LED | Yes |
| Component for | PC |
| Host interface | PCI Express |
| Frequency range | 2.4 - 5.8 GHz |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Channels quantity | 13 channels |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Transmit power range | 15 - 19 dBmW |
| Antenna connector type | R-SMA |
| Connectivity technology | Wireless |
| Output power description | b: 15 - 19 dBm, g: 13 - 17 dBm, n: 12 - 16 dBm |
| Storage temperature (T-T) | -20 - 65 °C |
| Maximum data transfer rate | 300 Mbit/s |
| Operating temperature (T-T) | 0 - 65 °C |
| Compatible operating systems | Windows 7 32bit/64bit, Windows Vista, Windows XP, Linux 2.6 |
| Warranty | 3-Year Warranty |
| Weight | 45.8 g |
Product Description
High-speed wireless Internet connectivity The ASUS PCE-N53 Wireless-N PCI Express Adapter provides superior Wi-Fi performance for server backbone and switching infrastructure applications, as well as mainstream desktops and notebooks. Using the convenience of a standard PCI Express connector, it delivers wide compatibility, fitting any x1, x2, x8, or x16 slot. Compared with standard PCI network cards, it offers increased bandwidth, reliability and functionality, allowing you to enjoy faster and more stable connections. Downloading, VoIP, video streaming, and online gaming all benefit from its high-speed design and powerful antenna, which ensure long range wireless coverage. The friendly user interface further allows you to install and use the device as well as network applications quickly and easily. Flexible Dual-band Connection The dual-band operating mode can satisfy both normal and power user: with 2.4GHz, web surfing or e-mail delivery will be brisk, and when HD streaming or blu-ray movie are needed, the 5GHz band provides a blazingly fast lag-free home entertainment. Enhanced Security Supports 64/128-bit WEP, WPA2-PSK, WPA-PSK, WPS security. Software AP Mode Software AP mode allows the WLAN card to act as a virtual access point. The computer needs to be connected to a wired network using an Ethernet connection in order to provide network access to WLAN client. WPS (Wi-Fi Protected Setup) For quickly setting up a secure wireless connection, install the utility from the Support CD, then press the hardware WPS button on the PCE-N53 and click "next". Press the hardware WPS button on the router you would like to connect to, and that's it! After the utility finishes the setup procedure, the wireless connection is done!
Key Features
ASUS PCE-N53. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS PCE-N53 Internal WLAN 300 Mbit/s (90-IGY4003M00-0PA0) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS PCE-N53 Internal WLAN 300 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS PCE-N53 Internal WLAN 300 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-IGY4003M00-0PA0.
