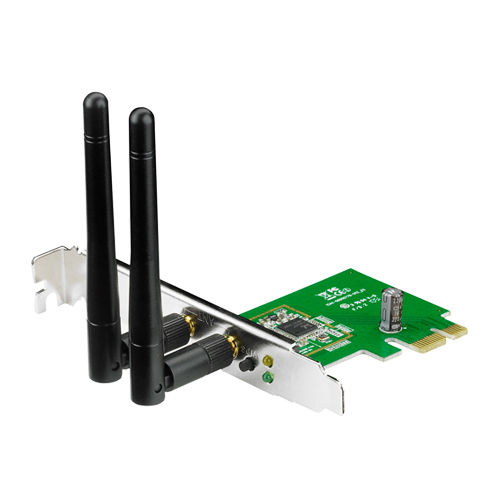

ASUS PCE-N15 Internal WLAN 300 Mbit/s

Brand: ASUS · SKU: 90-IG1U003M00-0PA0 · MPN: 90-IG1U003M00-0PA0 · Category: Components

ASUS PCE-N15 Internal WLAN 300 Mbit/s
Request for Quote
Backorder

ASUS PCE-N15, Internal, Wireless, PCI Express, WLAN, Wi-Fi 4 (802.11n), 300 Mbit/s. ASUS PCE-N15 Internal WLAN 300 Mbit/s (part number 90-IG1U003M00-0PA0) is an enterprise components product available from Server Tech Central. Key specifications include depth 21.6 mm, wi-fi Yes, width 120.5 mm, height 22 mm, weight 62.6 g, internal Yes, interface WLAN, modulation OFDM. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Depth21.6 mm
Wi-FiYes
Width120.5 mm
Height22 mm
Weight62.6 g
InternalYes
InterfaceWLAN
ModulationOFDM
Wi-Fi bandSingle-band (2.4 GHz)
CertificationCE, FCC, C-Tick, IC
Host interfacePCI Express
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity13 channels
Top Wi-Fi standardWi-Fi 4 (802.11n)
Security algorithms128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Antenna connector typeR-SMA
Connectivity technologyWireless
Output power descriptionb: 15 - 19 dBm, g: 13 - 17 dBm, n: 12 - 16 dBm
Storage temperature (T-T)-20 - 65 °C
Maximum data transfer rate300 Mbit/s
Harmonized System (HS) code85176990
Operating temperature (T-T)0 - 45 °C
Storage relative humidity (H-H)5 - 95%
Warranty3-Year Warranty
Weight62.6 g
Dimensions120.5 mm x 21.6 mm x 22 mm

Product Description

WPS(Wi-Fi Protected Setup) button For quickly setting up a secure wireless connection. Press the Hardware WPS button on PCE-N15 about 3 seconds, then press the WPS button on router as well. Either you can choose to use software WPS, enabling the WPS utility in the WPS Wizard interface. And finish the setup with 3 steps Software AP Software AP mode allows the WLAN card to act as a virtual access point. The computer needs to be connected to a wired network using an Ethernet connection in order to provide network access to WLAN client.

Key Features

ASUS PCE-N15. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz)

Frequently Asked Questions

Is this product genuine OEM?

Yes, this ASUS PCE-N15 Internal WLAN 300 Mbit/s (90-IG1U003M00-0PA0) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This ASUS PCE-N15 Internal WLAN 300 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the ASUS PCE-N15 Internal WLAN 300 Mbit/s compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-IG1U003M00-0PA0.
