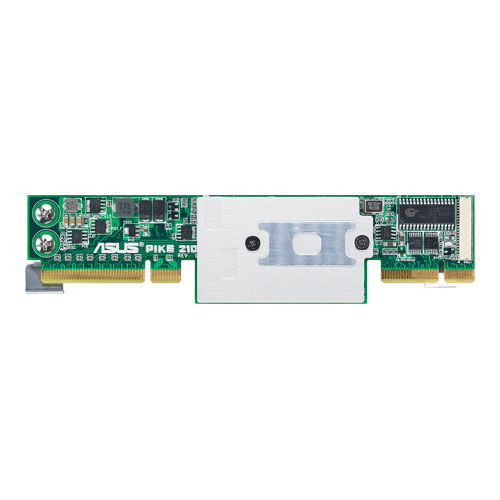

ASUS PIKE 2108 RAID controller PCI 6 Gbit/s
Brand: ASUS · SKU: 90-C1SFE0-00UAY0YZ · MPN: 90-C1SFE0-00UAY0YZ · Category: Components
ASUS PIKE 2108, SAS-2, Serial ATA III, PCI, 0, 1, 5, 6, 10, 50, 60, 6 Gbit/s, 512 MB, DDR2. ASUS PIKE 2108 RAID controller PCI 6 Gbit/s (part number 90-C1SFE0-00UAY0YZ) is an enterprise raid controllers product available from Server Tech Central. Key specifications include chipset LSI SAS 2108, raid levels 0, 1, 5, 6, 10, 50, 60, ssd support No, host interface PCI, ports quantity 8, internal memory 512 MB, data transfer rate 6 Gbit/s, memory clock speed 800 MHz. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Chipset | LSI SAS 2108 |
|---|---|
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| SSD support | No |
| Host interface | PCI |
| Ports quantity | 8 |
| Internal memory | 512 MB |
| Data transfer rate | 6 Gbit/s |
| Memory clock speed | 800 MHz |
| Compatible products | Motherboard support: Z8PH-D12 SE/QDR* Z8PH-D12/IFB* Z8PE-D18 Z8PE-D12X Z8PE-D12 Z8NR-D12 Z8NH-D12* Z8NA-D6 P8B-E/4L P8BH* Z9PE-D16 Z9PE-D16/2L Z9PE-D16C/2L Z9PH-D16/FDR* Z9PH-D16/QDR* Z9PH-D16* Z9NH-D12/FDR* Z9NH-D12* Z9NR-D12 Z9PR-D12 Z9NA-D6 Z9PA-D8 Z9PA-U8 * The MB was validated with the PIKE series by using the riser cards. System Support: RS926-E7/RS8 RS920-E7/RS8 RS726Q-E7/RS12 RS724Q-E7/RS12 RS720Q-E7/RS12 RS700-E7/RS8 RS700-E7/RS4 RS700-E7/RS4-C RS720-E7/RS12-E RS720-E7/RS12 RS720-X7/RS8 RS700-X7/PS4 RS500-E7/PS4 RS300-E7/RS4 RS300-E7/PS4 RS724Q-E6/RS12 RS720Q-E6/RS12 RS704D-E6/PS8 RS702D-E6/PS8 RS700D-E6/RS8 RS700D-E6/PS8 RS720-E6/RS12 RS720-E6/ERS12 RS520-E6/RS8 RS520-E6/ERS8 RS700-E6/RS4 RS700-E6/ERS4 RS500-E6/PS4 RS924A-E6/RS8 RS920A-E6/RS8 RS724QA-E6/RS12 RS720QA-E6/RS12 RS704DA-E6/PS4 RS700DA-E6/PS4 RS500A-E6/PS4 TS700-E7/RS8 TS700-X7/PS4 TS300-E7/PS4 TS700-E6/RS8 TS500-E6/PS4 TS300-E6/PS4 ESC4000 ESC4000/IB ESC4000 G2 ESC4000/FDR G2 |
| Internal memory type | DDR2 |
| Compatible battery backup options | Header reserved for LSI Standard BBU (Customer can acquire BBU from LSI existing distribution channel.) |
| Linux operating systems supported | Yes |
| Supported storage drive interfaces | SAS-2, Serial ATA III |
| Windows operating systems supported | Yes |
| Warranty | 3-Year Warranty |
Product Description
Flexible Storage Options for End Users ASUS PIKE 2108 can be backward compatible with existing 1.5Gb/s SATA and 3Gb/s SAS/SATA products and infrastructure and allows you to create RAID 0, RAID 1, RAID 10, RAID5, RAID 50, RAID6 and RAID 60. Just placing the PIKE card can immediately enlarge the capacity, improve the performance, and strengthen the signaling, making it the great upgrade option. Flexible storage options for end users 1. SAS RAID card status LED (lights up and blinks to indicate that the card is working normally) 2. BBU cable connector - Optional PIKE 2108 (8-port SAS II) are available for SAS RAID support - PIKE card enables on-demand upgrade, and allows customers to invest on basic SKUs for current use - Reduce qualification resource and inventory management efforts - Multiple I/O solutions are available without occupying slot 6 in 1U chassis Package Content - ASUS PIKE 2108 SAS RAID card - Heatsink for 5U/2U system - Support CD - User guide - BBU cable* - SATA cable* * The item is dependent on the selected SKU. System Requirement - Workstation or server motherboard with PIKE RAID card slot - SAS or SATA hard disk drives and cables - Supporting Windows® and Linux Operating systems - Appropriate thermal solution - Certified power supply module
Key Features
ASUS PIKE 2108. Supported storage drive interfaces: SAS-2, Serial ATA III, Host interface: PCI. RAID levels: 0, 1, 5, 6, 10, 50, 60, Data transfer rate: 6 Gbit/s, Internal memory: 512 MB
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS PIKE 2108 RAID controller PCI 6 Gbit/s (90-C1SFE0-00UAY0YZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS PIKE 2108 RAID controller PCI 6 Gbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS PIKE 2108 RAID controller PCI 6 Gbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-C1SFE0-00UAY0YZ.
