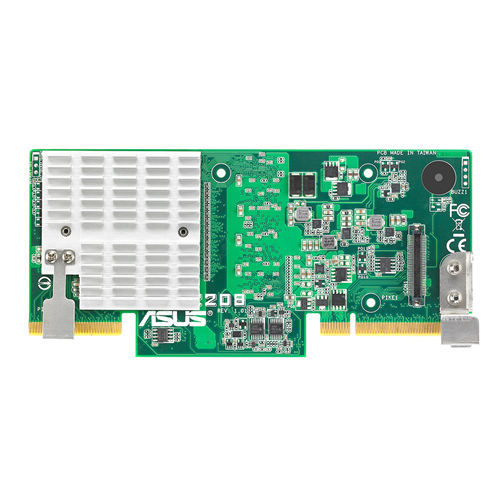

ASUS PIKE 2208 RAID controller 3.0 6 Gbit/s
Brand: ASUS · SKU: 90-C1SF70-00UAY0YZ · MPN: 90-C1SF70-00UAY0YZ · Category: Components
ASUS PIKE 2208, SAS, Serial ATA, Serial ATA II, Serial ATA III, 0, 1, 5, 6, 10, 50, 60, 6 Gbit/s, 1024 MB, LSI SAS 2208, Windows Server 2008 R2 Windows Server 2003 R2 Windows 7 Red Hat Enterprise Linux SuSE Linux... ASUS PIKE 2208 RAID controller 3.0 6 Gbit/s (part number 90-C1SF70-00UAY0YZ) is an enterprise raid controllers product available from Server Tech Central. Key specifications include chipset LSI SAS 2208, raid levels 0, 1, 5, 6, 10, 50, 60, chassis type 2U, ports quantity 8, internal memory 1024 MB, data transfer rate 6 Gbit/s, pci express slots version 3.0, number of devices supported 8. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Chipset | LSI SAS 2208 |
|---|---|
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Chassis type | 2U |
| Ports quantity | 8 |
| Internal memory | 1024 MB |
| Data transfer rate | 6 Gbit/s |
| PCI Express slots version | 3.0 |
| Number of devices supported | 8 |
| Compatible operating systems | Windows Server 2008 R2 Windows Server 2003 R2 Windows 7 Red Hat Enterprise Linux SuSE Linux Enterprise Server Free BSD Fedora Cent OS Citrix Xen Server |
| Supported storage drive interfaces | SAS, Serial ATA, Serial ATA II, Serial ATA III |
| Warranty | 3-Year Warranty |
Product Description
ASUS PIKE 2208 is the first PCI-E 3.0 high performance and high reliability enterprise SAS 6Gb/s solution. It also can be backward compatible with existing 1.5Gb/s SATA and 3Gb/s SAS/SATA products and infrastructure and allows you to create RAID 0, RAID 1, RAID 10, RAID5, RAID 50, RAID6 and RAID 60. Enterprise Performance with SAS technology. Based on latest PCI-E 3.0 interface, PIKE 2208 performance could achieve 33% higher data transferring rate than previous generation. Moreover, PIKE 2208 with 8 solid-state-drives (SSDs) could produce surpass 200,000 IOPS which 3 times than previous generation. In addition, with expander PIKE 2208 could support 32 physical disks that allow customer easily bring about 128TB large capacity storage with 4TB SATA HDD. Thus, PIKE 2208 is on demand for faster data transferring rate, great amount of data, and interoperability with the latest server platforms. Optional CacheVault for Reliable Data Protection. The other latest technology is the CacheVault which applies NAND flash memory and a super capacitor. During normal write-back operation, when a power failure occurs, CacheVault technology automatically transfers cached data from the DRAM cache to flash and stored for up to 3 years. Once power is restored, the data in the NAND flash is copied back into cache until it can be flushed to the disk drives. PIKE 2208 together with CacheVault, virtually eliminate hardware maintenance associated with BBU(battery-back-up), lower total cost of ownership over the life of the RAID card, and provide more environmentally friendly cache protection, all while maintaining optimal RAID performance.
Key Features
ASUS PIKE 2208. Supported storage drive interfaces: SAS, Serial ATA, Serial ATA II, Serial ATA III. RAID levels: 0, 1, 5, 6, 10, 50, 60, Data transfer rate: 6 Gbit/s, Internal memory: 1024 MB. Compatible operating systems: Windows Server 2008 R2 Windows Server 2003 R2 Windows 7 Red Hat Enterprise Linux SuSE Linux.... Chassis type: 2U
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS PIKE 2208 RAID controller 3.0 6 Gbit/s (90-C1SF70-00UAY0YZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS PIKE 2208 RAID controller 3.0 6 Gbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS PIKE 2208 RAID controller 3.0 6 Gbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-C1SF70-00UAY0YZ.
