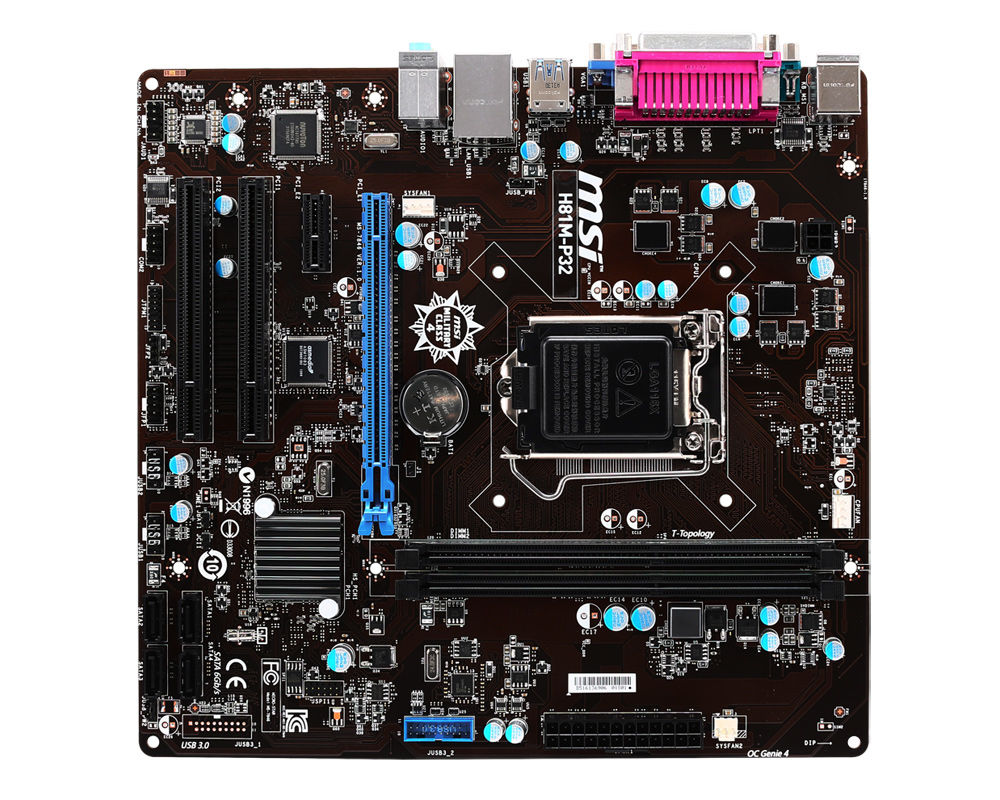

MSI H81M-P32 Intel® H81 LGA 1150 (Socket H3) micro ATX
Brand: MSI · SKU: 7846-003R · MPN: 7846-003R · Category: Components
MSI H81M-P32, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, i3-4xxx, i5-4xxx, i7-4xxx, DDR3-SDRAM, 16 GB
Specifications
| Depth | 243 mm |
|---|---|
| Width | 228 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC887 |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111G |
| DirectX version | 11 |
| Memory channels | Dual-channel |
| Processor socket | LGA 1150 (Socket H3) |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Maximum resolution | 1920 x 1200 pixels |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® H81 |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| Graphics card family | Intel |
| Warranty | 3-Year Warranty |
| Dimensions | 228 mm x 243 mm |
Product Description
Military Class Essentials The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit. OC Genie 4 OC Genie 4 supercharges your speed experience! When used, OC Genie 4 accelerates your entire system and puts it into overdrive! Tuned by the professional overclockers, OC Genie 4 hands you record-breaking performance on a silver plate. USB 3.0 Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute. Features - 10X Faster Than USB 2.0 - Up to 5Gb/s Data Transfer Bandwidth - Boost Transfer Rate Between Your PC and External Storage Devices SATA 6Gb/s SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to break the existing bottleneck of a PC's performance. Features - 2X Faster Than SATA 3Gb/s - Up to 6Gb/s Data Transfer Bandwidth - Unleash True Performance of New HDDs/SSDs Live Update 5 MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving your time and lowering the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website. Features - Automatically Detect the BIOS/Driver/VGA/Utility Update - Support Microsoft Windows XP/Vista/7 32/64bit
Key Features
MSI H81M-P32. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II, SATA III. Maximum graphics card memory: 1760 MB, Graphics card family: Intel, Maximum resolution: 1920 x 1200 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111G
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI H81M-P32 Intel® H81 LGA 1150 (Socket H3) micro ATX (7846-003R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI H81M-P32 Intel® H81 LGA 1150 (Socket H3) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI H81M-P32 Intel® H81 LGA 1150 (Socket H3) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7846-003R.
