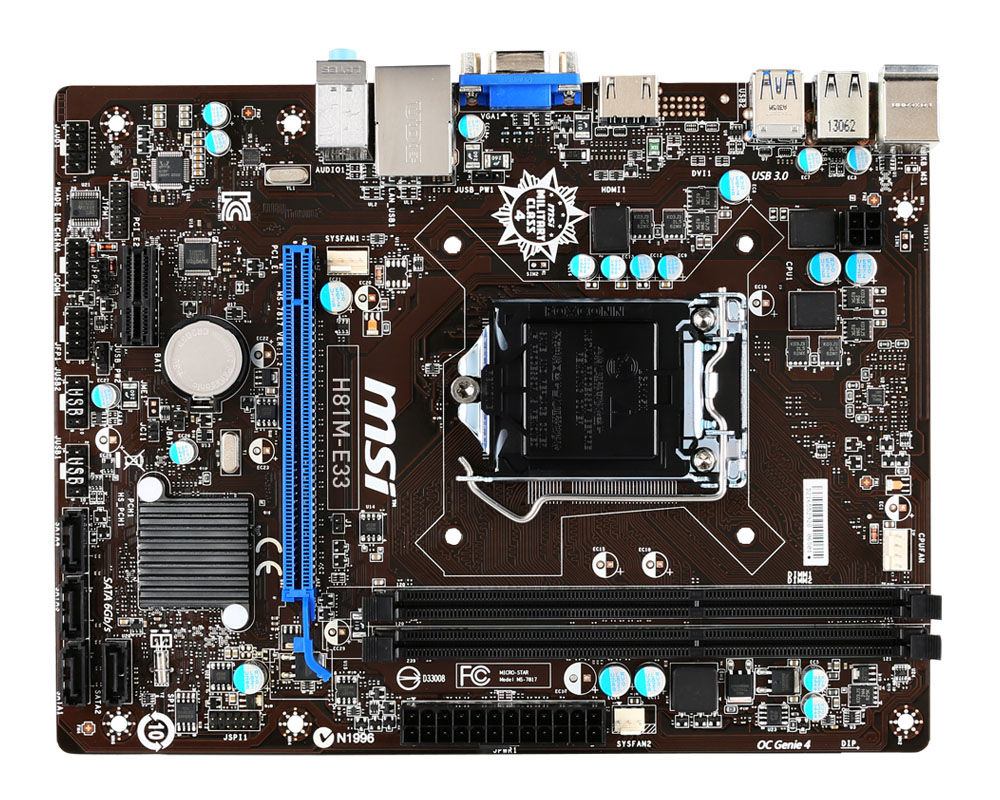

MSI H81M-E33 Intel® H81 LGA 1150 (Socket H3) micro ATX
Brand: MSI · SKU: 7817-040R · MPN: 7817-040R · Category: Components
MSI H81M-E33, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, i3-4xxx, i5-4xxx, i7-4xxx, DDR3-SDRAM, 32 GB
Specifications
| Depth | 226 mm |
|---|---|
| Width | 173 mm |
| Audio chip | Realtek ALC887 |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111G |
| DirectX version | 11 |
| Memory channels | Dual-channel |
| Processor socket | LGA 1150 (Socket H3) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| HDMI ports quantity | 1 |
| Motherboard chipset | Intel® H81 |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| Audio output channels | 7.1 channels |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| Warranty | 3-Year Warranty |
| Dimensions | 173 mm x 226 mm |
Product Description
Military Class 4 MSI's new Military Class 4 components support you while you are questing, racing, battling and shooting your way to the top. MSI's Military Class 4 components deliver record-breaking stability when you need to keep cool in the heat of battle. The new standard in stability built on a proven technology of high quality components. Military Class Essentials The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit. OC Genie 4 OC Genie 4 supercharges your speed experience! When used, OC Genie 4 accelerates your entire system and puts it into overdrive! Tuned by the professional overclockers, OC Genie 4 hands you record-breaking performance on a silver plate. Click BIOS 4 The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only reacting faster and running smoother, it also has better mouse support. This is all comes with many cool features, such as Hardware Monitor, Board Explorer, and OC Profile Preview. Benefits: - Optimizations for Latest Windows - Hardware Monitor - Board Explorer - OC Profile Preview 4K UHD Support Enjoy the awesome 4K UHD video playback now! MSI's 8 series motherboards that equip with HDMI port(s) supports the latest and the most innovative 4K UHD (2160p ultra-high definition) signal outputs to provide an unprecedented visual experience. Fast Boot No more waiting for entering O/S! MSI Fast Boot helps to make motherboards boot lightning fast. MSI also adds the GO2BIOS button with-in. Simply click it to reset your PC and then go straight to the system BIOS.
Key Features
MSI H81M-E33. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II, SATA III. Maximum graphics card memory: 1760 MB. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111G
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI H81M-E33 Intel® H81 LGA 1150 (Socket H3) micro ATX (7817-040R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI H81M-E33 Intel® H81 LGA 1150 (Socket H3) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI H81M-E33 Intel® H81 LGA 1150 (Socket H3) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7817-040R.
