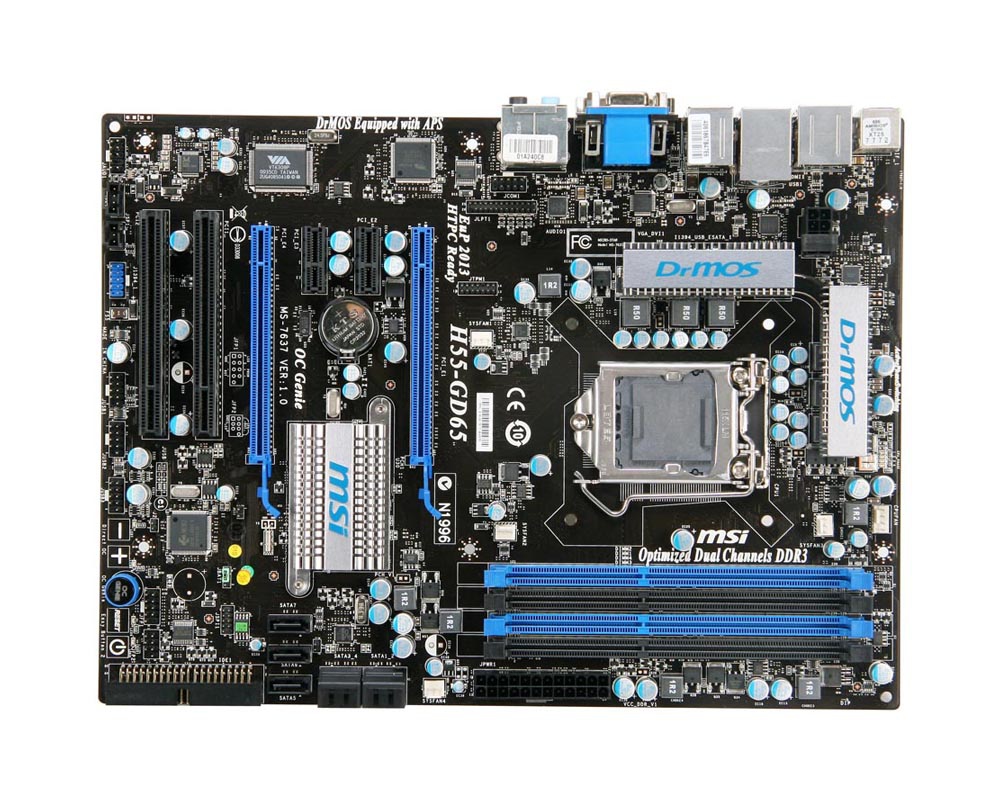

MSI H55-GD65 LGA 1156 (Socket H) ATX

Specifications

Product Description

Push to overclock in 1 second MSI’s original invention, a fully automatic, smart overclocking chip. It will automatically detect the optimal settings for your individual system Advantages - Overclock in 1 second to improve CPU, memory and 3D performance - Up to 45% iGPU performance boost in 3DMark 1 Phase DrMOS > 4 Phase Traditional MOSFET 3-in-1 server class power component, 400% faster than traditional MOSFET Offers excellent energy-saving capability and high-computing performance. Advantages - High Efficiency: Up to 96% - Efficiency Increase: +38.3% - Lower Power Loss: -4.01W (64% Max Saving) APS is Active Phase Switching, that is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM. Benefits: - Saving Power under Variable Loading. - Power Usage More Efficiency. - Supports 1080 Full-HD multimedia playback - A perfect connection to HD visual effects - Better casual gaming experience with DirectX 10 support - OC Genie - Overclocking in few seconds - Automatically detect best overclocking configuration - Optimized for best system performance - Flat-HeatPipe - ．Excellent Air Convection - ．Avoid Mechanical issue - ．Average temperature lower than “52℃” in high loading - DrMOS - Excellent energy-saving capability and offers high-computing performance. - Provide superior energy-saving function and maintain an ultimate low temperature operation. - Comes with three incredible features. - Direct OC - Instant CPU Base Clock adjustment - Hardware low latency control - Attain hardware overclocking performance at all circumstances - APS (Active Phase Switching) - APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM. - Saving Power under Variable Loading. - Power Usage More Efficiency. - M-Flash - Faster and Flexible and instant - If BIOS crash, it still can boot from USB Drive - Update BIOS from USB Drive by M-Flash Fucntion - USB Safeguard - With the ESD dual-current protection chip, USB Safeguard can ideally protect your motherboard from the potential damage caused by static electricity when inserting USB devices. - Blu-Ray Audio Support - The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc - Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers - support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs - User Friendly Design - Functions designed with button to be easy use. - Help power-users tweaking process in-chasis enviornment - Onboard SATA ports are stacked on the mainboard to avoid mechanical issue with giant graphic cards like 8800 Ultra. MSI Advanced Live Update Online The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. live_update_4 Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating. CrossFireX Support - Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready. - The ultimate multi-GPU performance gaming platform. - Provides 2.7x faster performance than single graphic card solution. Specifications Supports Intel® i3 / i5 / i7 based processors in LGA1156 package. Please refer to CPU Support for compatible CPU; the above description is for reference only. Intel® H55 Chipset - Supports QPI up to 6.4GT/s - Hi-Speed USB (USB2.0) controller, 480Mb/sec. - 6 SATAII ports with transfer rate up to 3Gb/s. - PCI Master v2.3, I/O APIC. - ACPI 2.0 compliant. - Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600*/2000*/2133* (OC) SDRAM, 16GB Max - Supports 1Gb/ 2Gb/ 4Gb DRAM size - Supports Dual channel mode Slots - 2 PCI Express gen2 x16 slots - 2 PCI Express gen2 x1 slots - 2 PCI slots, support 3.3V/ 5V PCI bus Interface On-Board IDE/SATA - One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363. - Supports PIO, Bus Master operation modes. - Can connect up to two Ultra ATA drives. - SATAII controller integrated in Intel H55 / JMicron® 363 chipset - Up to 3Gb/s transfer speed. - Supports six SATAII ports (SATA1~6) by H55 - Supports one SATAII port (SATA7) by JMicron 363 Audio - Chipset integrated by Realtek® ALC889 - Flexible 8-channel audio with jack sensing - Compliant with Azalia 1.0 Spec - Meet Microsoft Vista Premium spec LAN - Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111DL. - - - IEEE1394 / FireWire - VIA® VT6308P chipset - Supports up to two 1394 ports. (Rear panel x1, pinheader x1) - Transfer rate is up to 400Mbps. Internal I/O Connectors - ATX 24-Pin power connector - 8-pin ATX 12V power connector - CPU x 1 / System x 4 FAN connector

Key Features

MSI H55-GD65. Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H). Networking features: Fast Ethernet. Motherboard form factor: ATX, Power source type: ATX
