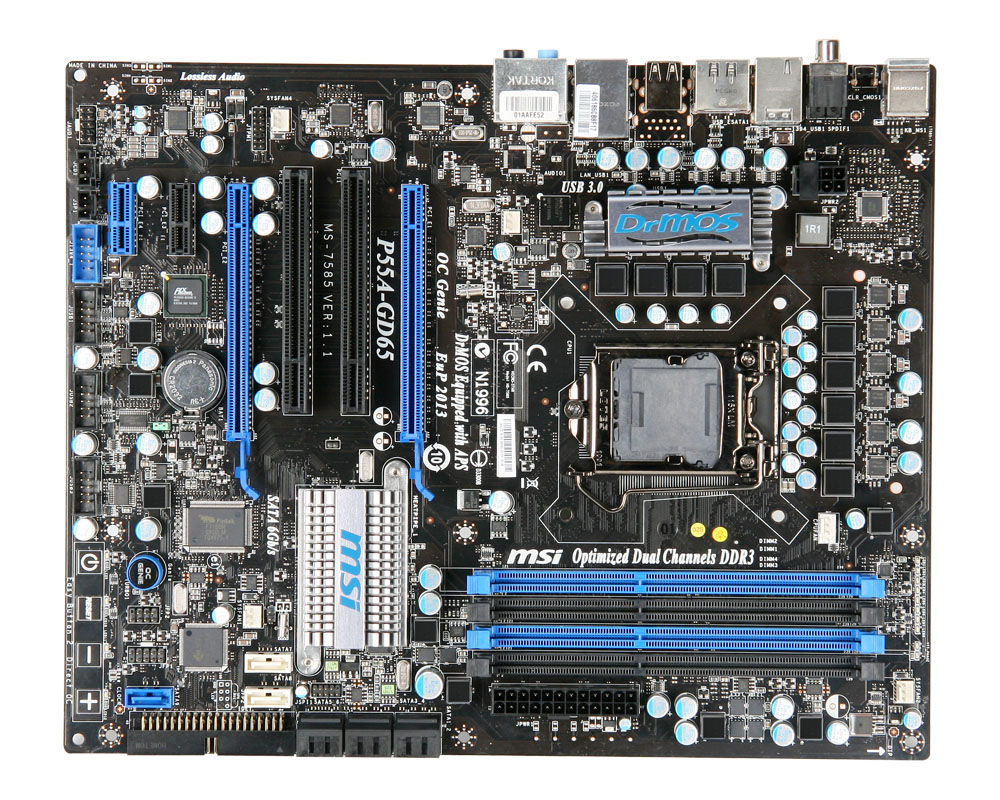

MSI P55A-GD65 LGA 1156 (Socket H) ATX
Brand: MSI · SKU: 7585-020R · MPN: 7585-020R · Category: Components
MSI P55A-GD65, Intel, LGA 1156 (Socket H), 16 GB, Realtek RTL8111DL, LAN PCI-E Gb LAN, ATX. MSI P55A-GD65 LGA 1156 (Socket H) ATX (part number 7585-020R) is an enterprise components product available from Server Tech Central. Key specifications include depth 305 mm, width 244 mm, audio chip Realtek ALC889, microphone in Yes, tpm connector Yes, lan controller Realtek RTL8111DL, cd/aux audio in Yes, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 305 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC889 |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111DL |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| Processor socket | LGA 1156 (Socket H) |
| CPU fan connector | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| Networking features | LAN PCI-E Gb LAN |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 2 |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 5 |
| Maximum internal memory | 16 GB |
| Motherboard form factor | ATX |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 305 mm |
Product Description
Push to overclock in 1 second MSI’s original invention, a fully automatic, smart overclocking chip. It will automatically detect the optimal settings for your individual system Advantages 1. 300% higher than Turbo Boost 2. Overclock 4 core B-clock & Ratio by OC Genie 3. Turbo Boost only overclock a little Ratio. APS is Active Phase Switching, that is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM. Benefits: Saving Power under Variable Loading. Power Usage More Efficiency. - Overclocking in few seconds - Automatically detect best overclocking configuration - Optimized for best system performance - Excellent energy-saving capability and offers high-computing performance. - Provide superior energy-saving function and maintain an ultimate low temperature operation. - Comes with three incredible features. - APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM. - Saving Power under Variable Loading. - Power Usage More Efficiency. - Revolutionary SuperSpeed USB 3.0, 10x faster than USB 2.0 - Up to 5Gbps bandwidth, boost data transfer rate between PC and USB device
Key Features
MSI P55A-GD65. Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H). Maximum internal memory: 16 GB. LAN controller: Realtek RTL8111DL, Networking features: LAN PCI-E Gb LAN. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC889. Width: 244 mm, Depth: 305 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI P55A-GD65 LGA 1156 (Socket H) ATX (7585-020R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI P55A-GD65 LGA 1156 (Socket H) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI P55A-GD65 LGA 1156 (Socket H) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7585-020R.
