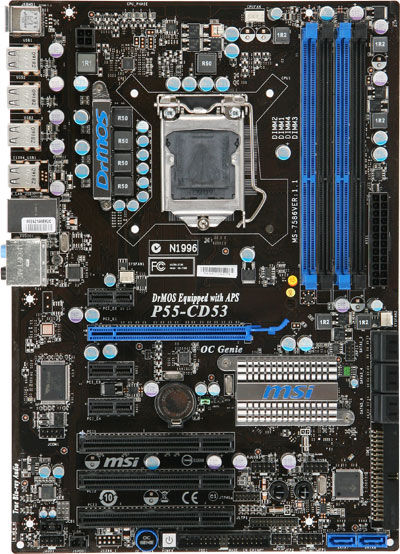

MSI P55-CD53 Intel® P55 LGA 1156 (Socket H) ATX
Brand: MSI · SKU: 7586-010R · MPN: 7586-010R · Category: Components
MSI P55-CD53, Intel, LGA 1156 (Socket H), Intel® Core™ i5, 16 GB, 1.5 V, 0, 1, 5, 10, JBOD. MSI P55-CD53 Intel® P55 LGA 1156 (Socket H) ATX (part number 7586-010R) is an enterprise components product available from Server Tech Central. Key specifications include depth 305 mm, width 215 mm, pci slots 3, audio chip Realtek ALC889, raid levels 0, 1, 5, 10, JBOD, tpm connector Yes, memory voltage 1.5 V, cd/aux audio in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 305 mm |
|---|---|
| Width | 215 mm |
| I/O ports | On-Board: 1 x Front panel 1 x Serial port 1 x Parallel port 1 x Clear CMOS button 1 x Power button 1 x OC switch 2 x Base Clock Control Buttons |
| PCI slots | 3 |
| Audio chip | Realtek ALC889 |
| RAID levels | 0, 1, 5, 10, JBOD |
| TPM connector | Yes |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| Internal memory | 0 GB |
| Processor socket | LGA 1156 (Socket H) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® P55 |
| Networking features | Realtek RTL8111DL - Ethernet, Fast Ethernet, Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 3 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 10 |
| Warranty | 3-Year Warranty |
| Dimensions | 215 mm x 305 mm |
Product Description
OC Genie - One second overclocking - World’s first true overclocking processor - 36% performance boost - Overclock 4 core B-clock & Ratio by OC Genie DrMOS - Excellent energy-saving capability and offers high-computing performance. - Provide superior energy-saving function and maintain an ultimate low temperature operation. - Comes with three incredible features. Direct OC - Instant CPU Base Clock adjustment - Hardware low latency control - Attain hardware overclocking performance at all circumstances V-Check Points - Provide CPU VCORE, VTT, DDR, PCH Voltage measure value - Key part's voltage measurement for all end-users APS (Active Phase Switching) - APS is Active Phase Switching is complete function to Control Power Demand With Switcing Dynamically, it’s for CPU, Memory and Chipset PWM. - Saving Power under Variable Loading. - Power Usage More Efficiency. M-Flash - Faster and Flexible and instant - If BIOS crash, it still can boot from USB Drive - Update BIOS from USB Drive by M-Flash Fucntion USB Safeguard With the ESD dual-current protection chip, USB Safeguard can ideally protect your motherboard from the potential damage caused by static electricity when inserting USB devices. All Solid Capacitors - Longer lifespan than electrolytic capacitors - Endurable to operation under higher frequency & temperature - Avoid exploding capacitors to cause mainboards failure Blu-Ray Audio Support - The loss-less content protection technology with full-rate audio enjoyment from Blue-ray Disc - Support for 24-bit / 192kHz sample rate offers high quality digital decoders and speakers - support 7.1 channels playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs User Friendly Design - Functions designed with button to be easy use. - Help power-users tweaking process in-chasis enviornment - Onboard SATA ports are stacked on the mainboard to avoid mechanical issue with giant graphic cards like 8800 Ultra. MSI Advanced Live Update Online The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. live_update_4 Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.
Key Features
MSI P55-CD53. Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H), Compatible processor series: Intel® Core™ i5. Maximum internal memory: 16 GB, Memory voltage: 1.5 V. RAID levels: 0, 1, 5, 10, JBOD. Networking features: Realtek RTL8111DL - Ethernet, Fast Ethernet, Gigabit Ethernet. Motherboard form factor: ATX, Motherboard chipset: Intel® P55, Audio output channels: 7.1 channels
