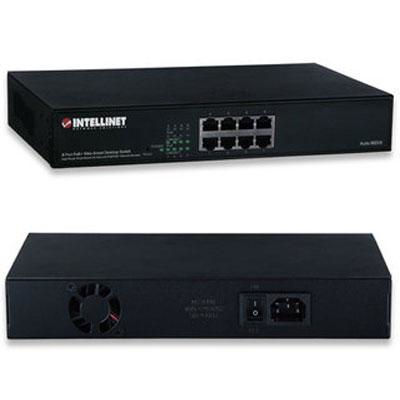

Intellinet 560665 network switch Power over Ethernet (PoE) Black
Brand: Intellinet · SKU: 560665 · MPN: 560665 · Category: Networking
Intellinet 560665, Full duplex, Power over Ethernet (PoE). Intellinet 560665 network switch Power over Ethernet (PoE) Black (part number 560665) is an enterprise switches product available from Server Tech Central. Key specifications include depth 160 mm, width 266 mm, height 44 mm, manual Yes, weight 2 kg, power led Yes, 10g support No, full duplex Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 160 mm |
|---|---|
| Width | 266 mm |
| Height | 44 mm |
| Manual | Yes |
| Weight | 2 kg |
| Power LED | Yes |
| 10G support | No |
| Full duplex | Yes |
| IGMP snooping | Yes |
| LED indicators | Yes |
| Port mirroring | Yes |
| Product colour | Black |
| Cables included | AC |
| AC input voltage | 100 - 240 V |
| Link aggregation | Yes |
| MAC address table | 4096 entries |
| Store-and-forward | Yes |
| AC input frequency | 50 - 60 Hz |
| Flow control support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Power over Ethernet (PoE) | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
| Warranty | 3-Year Warranty |
| Weight | 2 kg |
| Dimensions | 266 mm x 160 mm x 44 mm |
Product Description
Save Installation Time and Money with PoE The Intellinet Network Solutions 8-Port PoE Web-Smart Switch (560665) is designed to pass both data and electrical power to a number of PoE compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Fast Ethernet ports (all of which support 802.3at/af PoE/PoE+), this switch and can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 100 Mbps. Power over Ethernet 802.3at The Intellinet PoE Web-Smart Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 Watts of power per port*. IEEE802.3af or IEEE802.3at compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet PoE/PoE+ Splitter. Web-Management This PoE switch is equipped with an impressive array of advanced management functions that allow you to be in full control over your network. The 8-Port PoE Web-Smart Desktop Switch supports VLAN, port aggregation, QoS and port mirroring - just to name a few. * Total PoE budget for this switch is 130 watts. Per-port average power distribution is 15 Watts; maximum per-port power usage cannot exceed 30 Watts.
Key Features
Intellinet 560665. Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4096 entries. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intellinet 560665 network switch Power over Ethernet (PoE) Black (560665) is 100% genuine Intellinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intellinet 560665 network switch Power over Ethernet (PoE) Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intellinet 560665 network switch Power over Ethernet (PoE) Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 560665.
