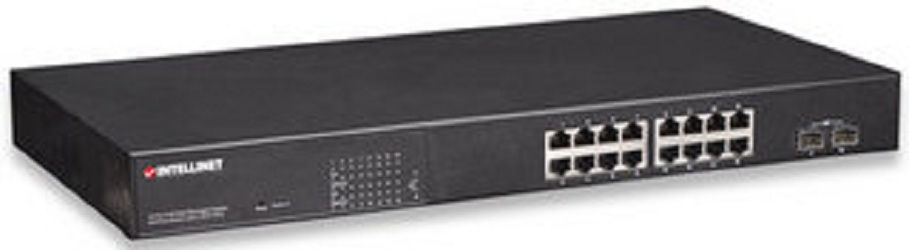

Intellinet 560535 network switch Power over Ethernet (PoE) Black
Brand: Intellinet · SKU: 560535 · MPN: 560535 · Category: Networking
Intellinet 560535, Power over Ethernet (PoE), Rack mounting. Intellinet 560535 network switch Power over Ethernet (PoE) Black (part number 560535) is an enterprise switches product available from Server Tech Central. Key specifications include depth 220 mm, width 40 mm, height 44 mm, weight 3 kg, certification FCC A, CE, rack mounting Yes, led indicators Yes, product colour Black. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 220 mm |
|---|---|
| Width | 40 mm |
| Height | 44 mm |
| Weight | 3 kg |
| Certification | FCC A, CE |
| Rack mounting | Yes |
| LED indicators | Yes |
| Product colour | Black |
| AC input voltage | 90 - 260 V |
| MAC address table | 16000 entries |
| AC input frequency | 50 - 60 Hz |
| Switching capacity | 36 Gbit/s |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -20 - 90 °C |
| Maximum data transfer rate | 1 Gbit/s |
| Operating temperature (T-T) | 0 - 45 °C |
| Power consumption (typical) | 180 W |
| Supported data transfer rates | 10/100/1000 |
| Operating relative humidity (H-H) | 10 - 90% |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Warranty | 3-Year Warranty |
| Weight | 3 kg |
| Dimensions | 40 mm x 220 mm x 44 mm |
Product Description
The Intellinet Network Solutions 16-Port PoE+ Web-Managed Desktop Gigabit Switch (560535) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with sixteen Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), this switch and can power Wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while delivering network speeds of up to 1000 Mbps. Power over Ethernet 802.3at The Intellinet PoE+ Web-Managed Desktop Gigabit Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 Watts of power per port*. IEEE802.3af or IEEE802.3at compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet PoE/PoE+ Splitter. Eliminate Bottlenecks with Gigabit Speeds Equipped with 16 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 16-Port PoE Web-Managed Desktop Gigabit Switch (560535) offers plenty of performance for your computers, servers and other networking devices. in addition, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances. Web-Management This PoE+ switch is equipped with an impressive array of advanced management functions that allow you to be in full control over your network. The 16-Port PoE Web-Managed Desktop Gigabit Switch supports VLAN, port aggregation, QoS, port mirroring, SNMP V1 and the popular SNMP V2c - just to name a few.
Key Features
Intellinet 560535. Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 16000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intellinet 560535 network switch Power over Ethernet (PoE) Black (560535) is 100% genuine Intellinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intellinet 560535 network switch Power over Ethernet (PoE) Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intellinet 560535 network switch Power over Ethernet (PoE) Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 560535.
