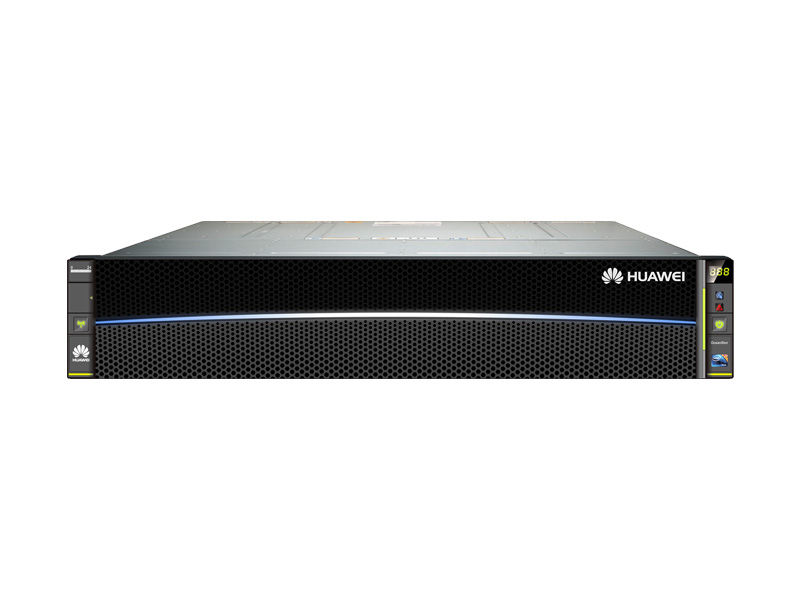

55V3-48G-AC2-16, Huawei OceanStor 5500 V3 Storage, 2U Dual Controllers/48GB RAM/8x16Gb FC
Brand: Huawei · SKU: 55V3-48G-AC2-16 · MPN: 55V3-48G-AC2-16 · Category: Components
Huawei OceanStor 5500 V3(2U,Dual Controllers,AC,48GB,SmartIO,8*16Gb FC,25*2.5",SPE33C0225) 55V3-48G-AC2-16
Specifications
| Model | 55V3-48G-AC2-16 |
|---|---|
| Weight | 52 kg |
| Disk Types | SSD, SAS, NL-SAS |
| Port Types | 1 Gbit/s Ethernet, 10 Gbit/s FCoE, 10 Gbit/s TOE, 16 Gbit/s FC, 56 Gbit/s InfiniBand, SAS 3.0 (back-end, 4 × 12 Gbit/s per port) |
| Gateway Mode | Supported |
| Power Supply | AC: 100 V to 240 V; DC: 192 V to 288 V or –48 V to –60 V |
| System Cache | 48GB to 512GB (expanded with the number of controllers) |
| Operating Humidity | 5% RH to 90% RH |
| Storage Processors | Multi-core processors |
| Operating Temperature | 5°C to 40°C at altitudes below 1,800 m (5,905.44 ft); 5°C to 35°C at altitudes from 1,800 m (5,905.44 ft) to 3,000 m (9,842.40 ft) |
| Supported RAID Levels | 0, 1, 3, 5, 6, 10, 50 |
| Maximum Number of LUNs | 8,192 |
| Virtualization Features | Heterogeneous virtualization for unified resource management; block virtualization for balanced data distribution and quick fault recovery; support for VMware, Citrix, Hyper-V; VMware VAAI support and integration with vSphere and vCenter |
| Max. Number of Controllers | 8 |
| Supported Storage Protocols | Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, FTP |
| Maximum Capacity of a Single File | 256TB |
| Maximum Number of Snapshots (LUN) | 4,096 |
| Maximum Snapshots per File System | 2,048 |
| Management and Maintenance Software | UltraPath (multipathing), Cloud Service (remote maintenance and management), BCManager (disaster recovery management), DeviceManager (single device management), eSight (multi-device, cross-domain management) |
| Key Software Features (Smart Services) | SmartQoS, SmartPartition, SmartCache, SmartTier, SmartThin, SmartMotion, SmartMulti-Tenant, SmartMigration, SmartCompression, SmartDedupe, SmartQuota, HyperLock (WORM), SmartErase (data destruction) |
| Max. Number of Disks (Two Controllers) | 750 |
| Key Software Features (Data Protection) | HyperSnap (snapshot), HyperCopy (LUN copy), HyperClone (clone), HyperMirror (volume mirror), HyperReplication (remote replication), HyperMetro (active-active storage arrays), HyperVault (integrated backup) |
| Dimensions (2U Disk Enclosure, H × W × D) | 86.1mm × 447mm × 490mm (3.39in × 17.60in × 19.29in) |
| Dimensions (4U Disk Enclosure, H × W × D) | 175mm × 447mm × 490mm (6.89in × 17.60in × 19.29in) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this 55V3-48G-AC2-16, Huawei OceanStor 5500 V3 Storage, 2U Dual Controllers/48GB RAM/8x16Gb FC (55V3-48G-AC2-16) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This 55V3-48G-AC2-16, Huawei OceanStor 5500 V3 Storage, 2U Dual Controllers/48GB RAM/8x16Gb FC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the 55V3-48G-AC2-16, Huawei OceanStor 5500 V3 Storage, 2U Dual Controllers/48GB RAM/8x16Gb FC compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 55V3-48G-AC2-16.
