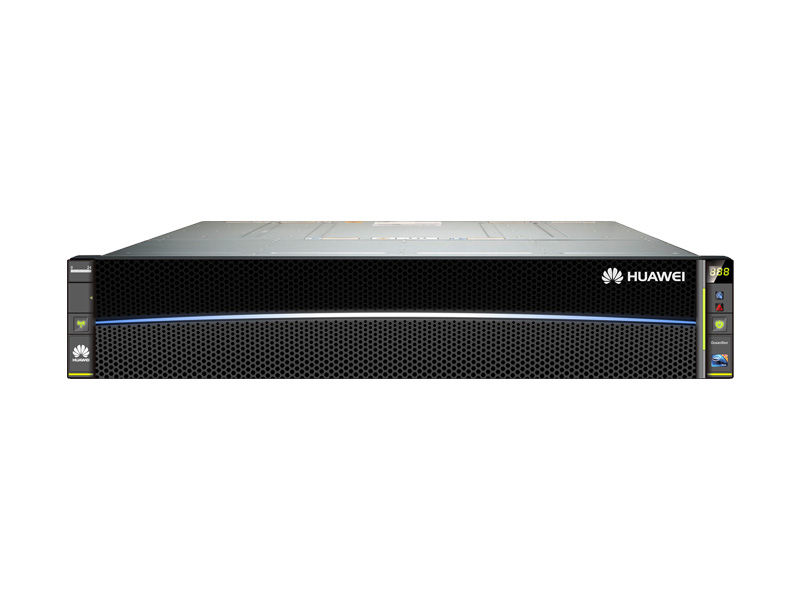

55V3-48G-AC2-10, Huawei OceanStor 5500 V3 Storage, 48GB DDR4/8x10Gb ETH/25x2.5" Bay
Brand: Huawei · SKU: 55V3-48G-AC2-10 · MPN: 55V3-48G-AC2-10 · Category: Components
Huawei OceanStor 5500 V3(2U,Dual Controllers,AC,48GB,SmartIO,8*10Gb ETH,25*2.5",SPE33C0225) 55V3-48G-AC2-10
Specifications
| Model | 55V3-48G-AC2-10 |
|---|---|
| Weight | 52 kg |
| Disk Types | SSD, SAS, NL-SAS |
| Port Types | 1Gbps Ethernet, 10Gbps FCoE, 10Gbps TOE, 16Gbps FC, 56Gbps InfiniBand, SAS 3.0 (back-end, 4 x 12Gbps per port) |
| Gateway Mode | Supported |
| Power Supply | AC: 100 V to 240 V; DC: 192 V to 288 V or -48 V to -60 V |
| System Cache | 48GB to 512GB (expanded with the number of controllers) |
| Operating Humidity | 5% RH to 90% RH |
| Storage Processors | Multi-core processors |
| Management Software | UltraPath (multipathing management), Cloud Service (remote maintenance and management), BCManager (disaster recovery management), DeviceManager (single-device management), eSight (multi-device, cross-domain management) |
| Operating Temperature | 5°C to 40°C at altitudes below 1800 m (5905.44 ft); 5°C to 35°C at altitudes from 1800 m (5905.44 ft) to 3000 m (9842.40 ft) |
| Supported RAID Levels | RAID 0, 1, 3, 5, 6, 10, 50 |
| Maximum Number of LUNs | 8192 |
| Virtualization Features | Heterogeneous virtualization: consolidates storage resources of mainstream products for unified flexible management; Block virtualization: balanced data distribution, fast fault recovery; VM support: VMware, Citrix, Hyper-V; Virtual environment features: VMware VAAI support, vSphere and vCenter integration |
| Supported Storage Protocols | Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, FTP |
| Maximum Number of Controllers | 8 |
| Maximum Capacity of a Single File | 256TB |
| Maximum Number of Snapshots (LUN) | 4096 |
| Maximum Snapshots per File System | 2048 |
| Key Software Features (Data Protection) | HyperSnap (snapshot), HyperCopy (LUN copy), HyperClone (clone), HyperMirror (volume mirror), HyperReplication (remote replication), HyperMetro (active-active storage arrays), HyperVault (integrated backup) |
| Key Software Features (Smart Management) | SmartQoS (intelligent QoS control), SmartPartition (intelligent partitioning), SmartCache (intelligent SSD caching), SmartTier (intelligent storage tiering), SmartThin (thin provisioning), SmartMotion (intelligent data migration), SmartMulti-Tenant (multi-tenant), SmartMigration (LUN migration), SmartCompression (online compression), SmartDedupe (online de-duplication), SmartQuota (quota management), HyperLock (WORM), SmartErase (data destruction) |
| Dimensions (2U Disk Enclosure, H x W x D) | 86.1mm x 447mm x 490mm (3.39in x 17.60in x 19.29in) |
| Dimensions (4U Disk Enclosure, H x W x D) | 175mm x 447mm x 490mm (6.89in x 17.60in x 19.29in) |
| Maximum Number of Disks (Two Controllers) | 750 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this 55V3-48G-AC2-10, Huawei OceanStor 5500 V3 Storage, 48GB DDR4/8x10Gb ETH/25x2.5" Bay (55V3-48G-AC2-10) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This 55V3-48G-AC2-10, Huawei OceanStor 5500 V3 Storage, 48GB DDR4/8x10Gb ETH/25x2.5" Bay includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the 55V3-48G-AC2-10, Huawei OceanStor 5500 V3 Storage, 48GB DDR4/8x10Gb ETH/25x2.5" Bay compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 55V3-48G-AC2-10.
