Brand: Broadcom · SKU: 05-50111-00 · MPN: 05-50111-00 · Category: Components

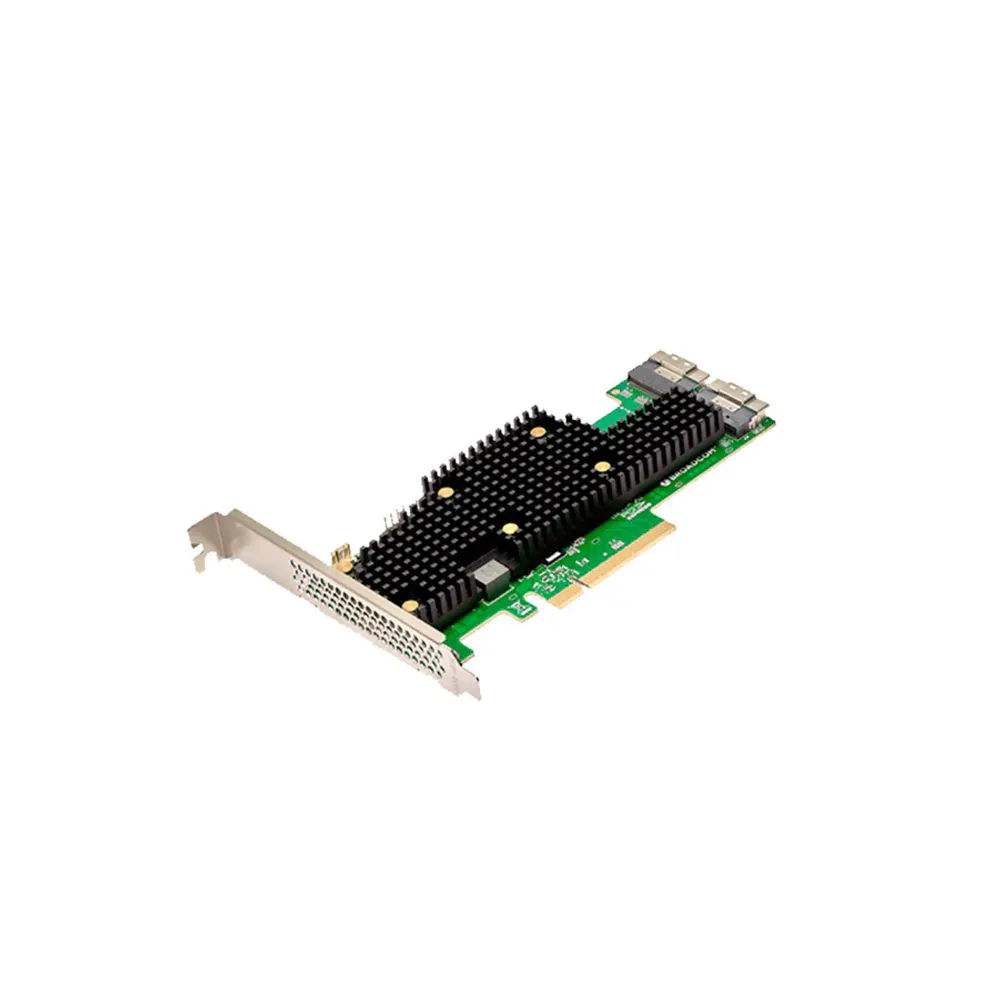

The Broadcom HBA 9600-16i is a high-port, low-profile, half-length x8 PCIe Gen 4.0 enhanced HBA (eHBA) designed for high-performance enterprise data centers. It features the Broadcom 8th generation Tri-Mode SAS4016 I/O controller, supporting 24G SAS, PCIe Gen 4.0 NVMe, and 6G SATA storage connectivity. Utilizing Tri-Mode SerDes technology, it enables the operation of NVMe, SAS, and SATA storage devices in a single drive bay. This adapter delivers up to 2x the bandwidth and IOPS performance compared to previous generations, making it ideal for critical applications requiring massive scalability and high throughput. It supports up to 240 SAS/SATA devices or 32 NVMe devices and includes advanced security features like Hardware Secure Boot and SPDM Attestation.
| MTBF | 5,000,000 hours at 40°C |
|---|---|
| Host Bus Type | x8 lane PCI Express 4.0 |
| I/O Controller | SAS4016 |
| Internal Ports | 16 |
| Devices Supported | SAS/SATA: 240, NVMe: up to 32 |
| Power Consumption | 17W Typical |
| Data Transfer Rates | 22.5, 12, and 6Gb/s SAS; 6Gb/s SATA; Gen 4.0 PCIe (NVMe) up to 16GT/s |
| Internal Connectors | 2 x8 SFF-8654 (SlimSAS) |
| Operating Temperature | 0°C to 55°C |
| Warranty | 3-year parts replacement support |
| Weight | 0.3 kg |
| Dimensions | 155.52 mm x 68.77 mm |
The Broadcom 9600 series Tri-Mode eHBAs address the performance shift in modern data centers transitioning to higher core count CPUs and SSD-based storage. By supporting SAS, SATA, and NVMe concurrently, the 9600-16i provides maximum system design flexibility and investment protection.
Yes, this Broadcom HBA 9600-16i Tri-Mode Storage Adapter (05-50111-00) is 100% genuine Broadcom hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Broadcom HBA 9600-16i Tri-Mode Storage Adapter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 05-50111-00.
