Brand: Broadcom · SKU: 05-50008-00 · MPN: 05-50008-00 · Category: Components

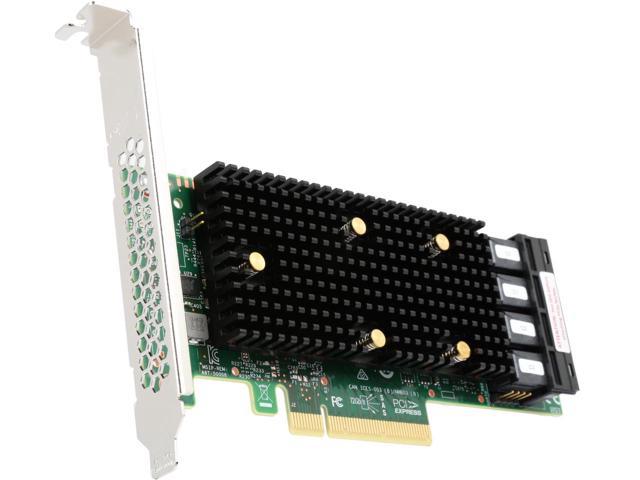

The Broadcom HBA 9400-16i is a high-port count, internal 16-port Tri-Mode storage adapter designed for high-end servers and data centers. It is the industry's first HBA with Tri-Mode SerDes technology, enabling the operation of NVMe, SAS, or SATA storage devices in a single drive bay. This 12Gb/s SAS/SATA/NVMe HBA provides increased bandwidth and IOPS performance over previous generations, supporting up to 1024 SAS/SATA devices or 24 NVMe devices. It features four SFF-8643 internal connectors and a PCIe 3.1 x8 host interface, delivering the scalability and flexibility required by critical applications.
| MTBF | > 4,500,000 hours at 40°C |
|---|---|
| Ports | 16 Internal |
| Connectors | 4 x SFF-8643 (Mini-SAS HD) |
| Max Devices | SAS/SATA: 1024, NVMe: 24 |
| Host Bus Type | PCIe 3.1 x8 |
| I/O Processor | SAS3416 |
| Typical Power | 11.95W |
| Storage Interface | 12Gb/s SAS, 6Gb/s SATA, Gen 3.0 PCIe (NVMe) |
| Operating Temperature | 10°C to 55°C |
| Warranty | 3-year warranty |
| Weight | 9.1 oz |
| Dimensions | 6.127 in x 2.712 in |
The 9400-16i Tri-Mode Storage Adapter is ideal for increased connectivity and maximum performance for data center flexibility. By using Tri-Mode SerDes technology, the adapter can manage NVMe, SAS, and SATA devices simultaneously, allowing for seamless infrastructure evolution without major configuration changes.
Yes, this Broadcom HBA 9400-16i (05-50008-00) is 100% genuine Broadcom hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Broadcom HBA 9400-16i includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 05-50008-00.
