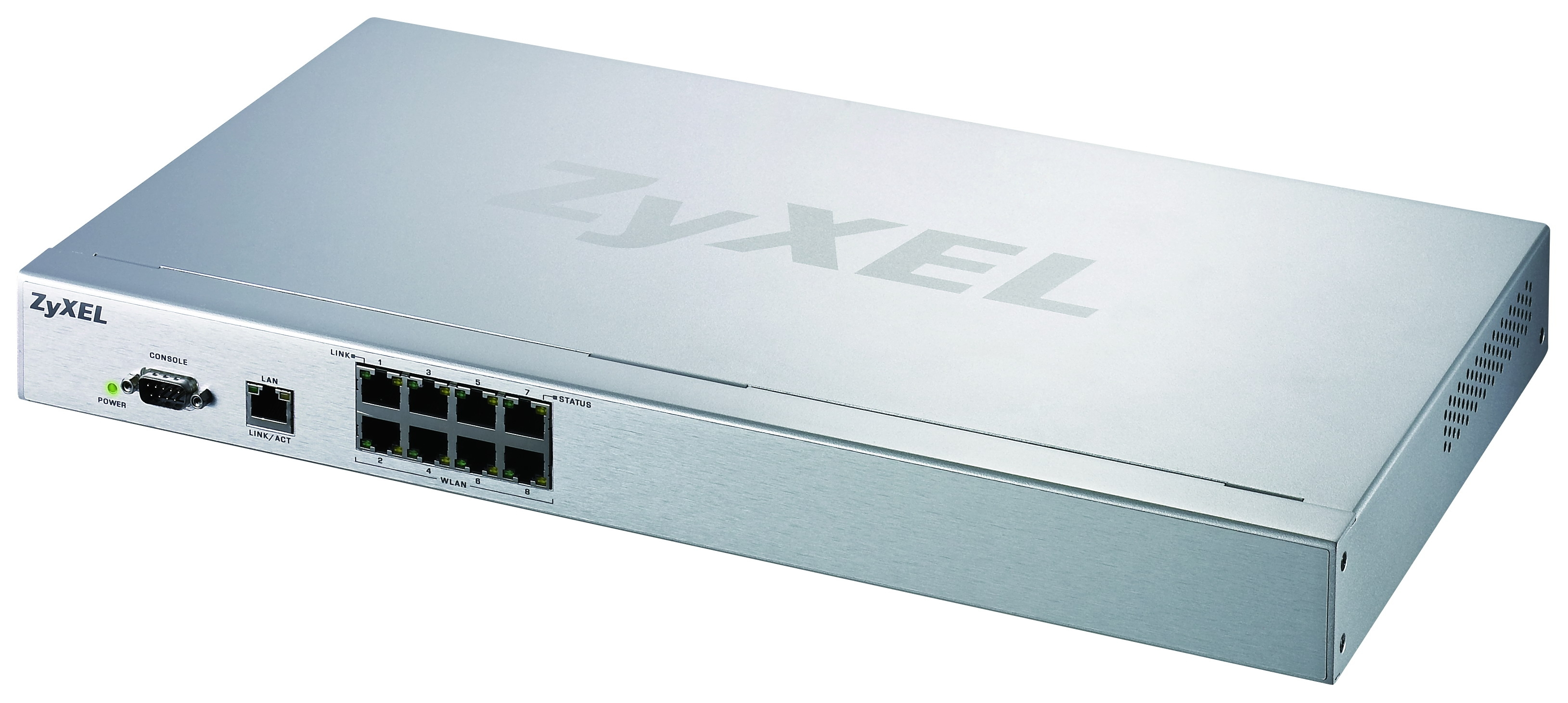

Zyxel NXC-8160 gateway/controller
Brand: Zyxel · SKU: ZYXNXC-8160 · MPN: ZYXNXC-8160 · Category: Components
Zyxel NXC-8160, HTTPS, Secure Telnet, IEEE 802.11 a/b/g, IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.11b, IEEE 802.11g, 2.412/5.15 GHz, 0.054 Gbit/s, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps. Zyxel NXC-8160 gateway/controller (part number ZYXNXC-8160) is an enterprise components product available from Server Tech Central. Key specifications include weight 3 kg, i/o ports 1 x LAN 10/100 Base-T; 8 x WLAN 10/100 Base-T, modulation BPSK, CCK, DBPSK, DQPSK, QPSK, full duplex Yes, frequency band 2.412/5.15 GHz, cabling technology 10/100Base-T(X), data transfer rate 0.054 Gbit/s, dimensions (wxdxh) 242.5 x 443.5 x 44.5 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 3 kg |
|---|---|
| I/O ports | 1 x LAN 10/100 Base-T; 8 x WLAN 10/100 Base-T |
| Modulation | BPSK, CCK, DBPSK, DQPSK, QPSK |
| Full duplex | Yes |
| Frequency band | 2.412/5.15 GHz |
| Cabling technology | 10/100Base-T(X) |
| Data transfer rate | 0.054 Gbit/s |
| Dimensions (WxDxH) | 242.5 x 443.5 x 44.5 mm |
| Power requirements | 100-240, 50/60, 2A |
| Management protocols | HTTPS, Secure Telnet |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.11b, IEEE 802.11g |
| Authentication method | 802.1x TLS/TTLS/PEAP |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Supported network protocols | IEEE 802.11 a/b/g |
| Supported data transfer rates | 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps |
| Storage relative humidity (H-H) | 20 - 95% |
| Operating relative humidity (H-H) | 20 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 3 kg |
Product Description
Zero-Delay, Secure and Seamless Mobility The NXC-8160 Wireless LAN Controller is the central component of ZyXEL's unique "Interference-Free" architecture. The unique solution enables the signals on the same channel to be transmitted through every access point in the system without the co-channel interference that plagues other WLAN solutions. Clients only need to associate with the controller once in order to move within the channel blanket without experiencing inter-AP handoffs. As a result, different WLAN security settings will have no impact on its speed; that is, the zero-delay roaming functionalities can retain its outstanding "always-connected" performance even with the most sophisticated encryption and authentication mechanisms applied. Simply put, the solution provides the flexibility, performance and simplicity required by enterprises to support data, video and voice (VoWLAN) applications in ubiquitous WLAN deployments. The 8-port controller can be used individually or in combination with multiple controllers to meet the needs of crowded enterprise environments of any size or kind. No Cell Planning Needed ZyXEL's Unique Interference-Free Channel Blanket architecture requires no RF cell planning, and it allows ubiquitous placement of thin APs wherever convenient. Consequently, the cost of deploying and owning an enterprise-class WLAN can be dramatically reduced. Powerful and Scalable It is no doubt that the NXC-8160 Business Wireless LAN Controller is the most sophisticated WLAN infrastructure that tremendously improves WLAN service quality, while Zero-Delay roaming provides the best VoWLAN user experience. NXC-8160 is an 8-port WLAN controller but not limited to 8 ports; its centralized configuration allows you to use a single management interface to manage multiple NXC-8160 on networks of a larger scale . Wi-Fi Collaboration Uplink Diversity ZyXEL's Wi-Fi Collaboration technology overcomes the difficulties of using RF on data networks in a unique way. With multiple thin APs placed on the same channel and the centralized Wireless Controller making intelligent decisions, a ZyXEL WLAN can provide uplink diversity for client transmissions to enable higher tolerance to RF instabilities and to offer inherent redundancy in the AP coverage. Plug-and-Play Thin AP Installation The NXC-8160 supports up to 8 units, and the ultra-thin plug-and-play AP does not need any configuration in the installation process. With simplicity like this, the NXC-8160 can effectively minimize the installation and maintenance efforts involved.
Key Features
Zyxel NXC-8160. Management protocols: HTTPS, Secure Telnet, Supported network protocols: IEEE 802.11 a/b/g. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.11b, IEEE 802.11g, Frequency band: 2.412/5.15 GHz, Data transfer rate: 0.054 Gbit/s. Authentication method: 802.1x TLS/TTLS/PEAP. Power requirements: 100-240, 50/60, 2A. Weight: 3 kg, Dimensions (WxDxH): 242.5 x 443.5 x 44.5 mm
