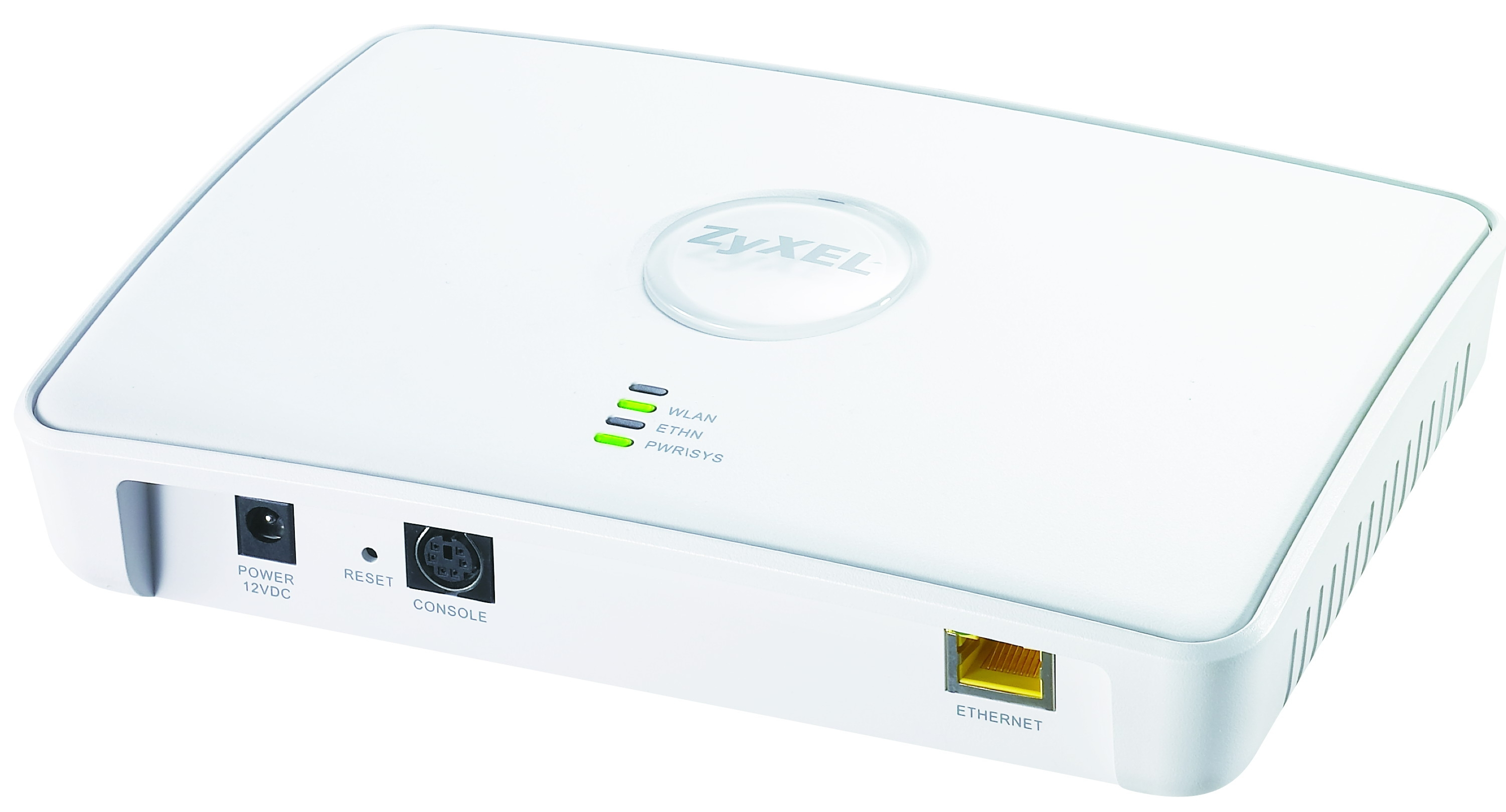

Zyxel NWA-3165 300 Mbit/s Power over Ethernet (PoE)
Brand: Zyxel · SKU: ZYXNWA-3165 · MPN: ZYXNWA-3165 · Category: Components
Zyxel NWA-3165, 300 Mbit/s, 802.1x RADIUS. Zyxel NWA-3165 300 Mbit/s Power over Ethernet (PoE) (part number ZYXNWA-3165) is an enterprise components product available from Server Tech Central. Key specifications include safety CSA International, ANS/UL 2043, EN 60601-1-2: 2002, weight 420 g, interface Ethernet, dc-in jack Yes, modulation 16-QAM, 64-QAM, CCK, DBQSK, DQPSK, QPSK, antenna type Internal, indoor range 802.11g - up to 100 m 802.11n - up to 120 m, outdoor range 802.11g - up to 400 m 802.11n - up to 400 m. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Safety | CSA International, ANS/UL 2043, EN 60601-1-2: 2002 |
|---|---|
| Weight | 420 g |
| Interface | Ethernet |
| DC-in jack | Yes |
| Modulation | 16-QAM, 64-QAM, CCK, DBQSK, DQPSK, QPSK |
| Antenna type | Internal |
| Indoor range | 802.11g - up to 100 m 802.11n - up to 120 m |
| Outdoor range | 802.11g - up to 400 m 802.11n - up to 400 m |
| Frequency band | 2.412 - 2.472 GHz |
| Antenna features | Integrated antenna |
| Antennas quantity | 3 |
| Connectivity LEDs | Y |
| Cabling technology | 10/100Base-T(X) |
| Dimensions (WxDxH) | 138.5 x 198.5 x 47.5 mm |
| Security algorithms | 802.1x RADIUS |
| Wireless technology | IEEE 802.11 a/b/g |
| Antenna gain level (max) | 1.8 dBi |
| Electromagnetic emissions | FCC Part 15B, EN 301 489-17 V1.2.1: 08-2002, EN 301 489-1 V1.5.1: 11-2004, EN 55022: 2006, ICES-003, AS/NZS CISPR22 |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -30 - 60 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 300 Mbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af |
| Warranty | 3-Year Warranty |
| Weight | 420 g |
Product Description
Dead-Spot Elimination with MIMO Technology The Wi-Fi n/b/g-certified and IEEE 802.11n draft 2.0-compliant ZyXEL NWA-3165 is a wireless LAN Access Point designed for enterprise environments. The MIMO (Multiple In, Multiple Out) feature of NWA-3165 utilizes a multiple-antenna system to take advantage of the multi-path effect in RF implementations, rather than fighting against it as conventional 802.11 Access Points did. The resulting improvements in both range and capacity provide substantially more reliable signal quality and greater bandwidth that are critical to SMB deployments. Virtual AP for Specific Applications The NWA-3165 supports up to 4 multiple SSIDs with 802.1Q VLAN tag. This function makes the NWA-3165 perform as multiple virtual APs. The NWA-3165 also provides pre-defined voice SSID and guest SSID for optimized voice prioritization, and offers top-level security for guest access without difficulties of complicated configuration efforts. Enterprise Class Security NWA-3165 delivers enterprise-class security features to small and medium businesses. To shield wireless communication at the source, WPA2 with TKIP/AES encryption provides the latest and toughest standard-based security while WEP encryption supports legacy wireless clients. Additionally, WPA2 ensures the compatibility with all Wi-Fi certified wireless clients. Sophisticated Design with Easy Installation NWA-3165 is designed with a non-invasive concept that prevents radical image change to enterprise surroundings. Its UL2043-certified casing has been fire-tested for heat and visible smoke release for discrete products and related accessories installed in air-handling spaces. The test evaluates various small, non-metallic products intended for use in air-handling spaces and plenums to prove that they are not harmful to the nearby personnel in case of fire. With the professional installation kit ZyXEL provides, NWA-3165 can be deployed with great flexibility. As an excellent performer and safe device, NWA-3165 is the best choice for small and medium enterprises.
Key Features
Zyxel NWA-3165. Maximum data transfer rate: 300 Mbit/s. Security algorithms: 802.1x RADIUS. Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Zyxel NWA-3165 300 Mbit/s Power over Ethernet (PoE) (ZYXNWA-3165) is 100% genuine Zyxel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Zyxel NWA-3165 300 Mbit/s Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Zyxel NWA-3165 300 Mbit/s Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ZYXNWA-3165.
