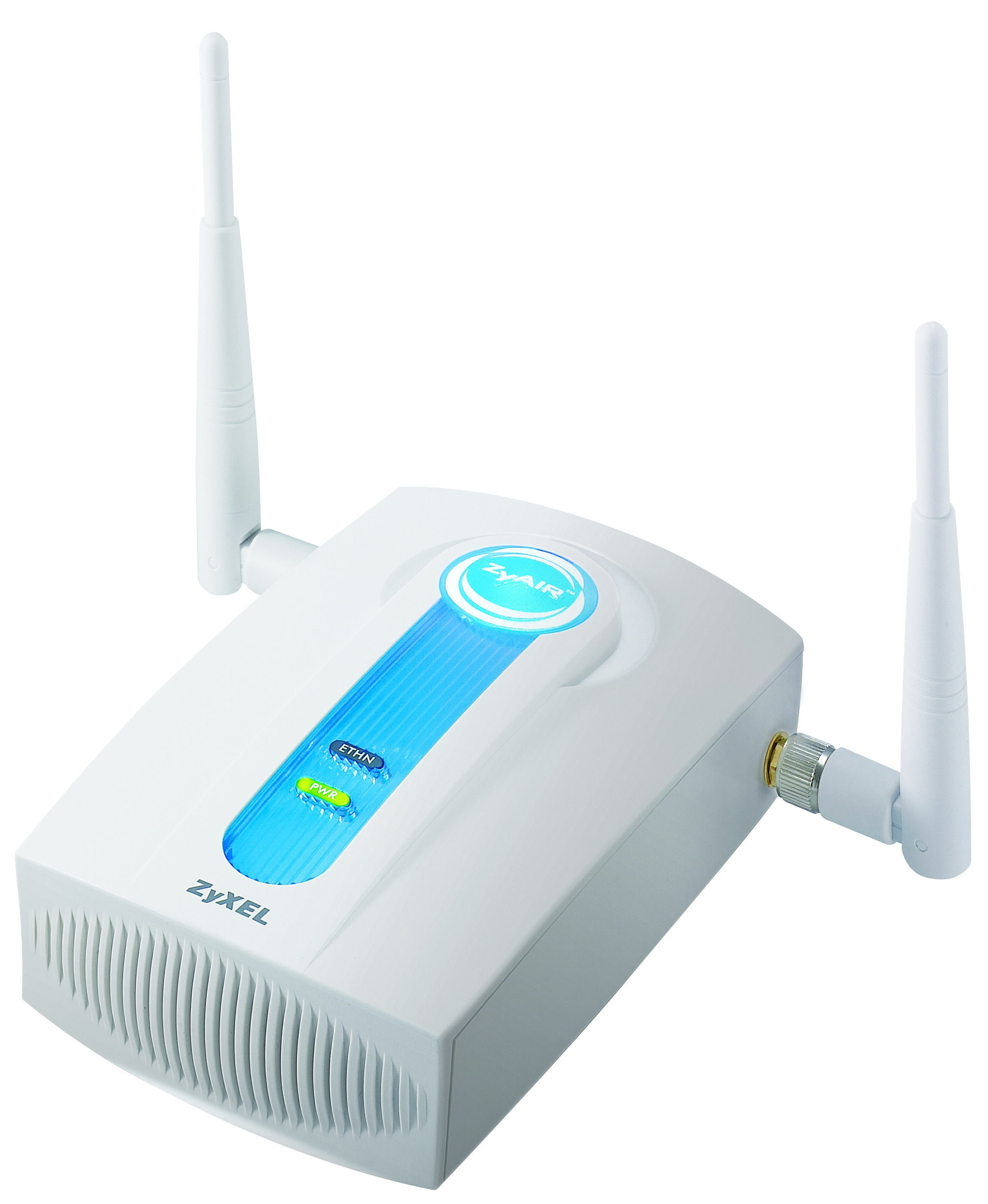

Zyxel NWA-3100 54 Mbit/s Power over Ethernet (PoE)
Brand: Zyxel · SKU: ZYXNWA-3100 · MPN: ZYXNWA-3100 · Category: Components
Zyxel NWA-3100, 54 Mbit/s, EAP-TLS, EAP-TTLS, PEAP. Zyxel NWA-3100 54 Mbit/s Power over Ethernet (PoE) (part number ZYXNWA-3100) is an enterprise components product available from Server Tech Central. Key specifications include weight 310 g, internal No, dc-in jack Yes, dhcp client Yes, indoor range 802.11b/g: 100m, 802.11a: 80m., input current 1.5 A, outdoor range 802.11b/g: 400m, 802.11a: 200m., frequency band 2.412 - 2.472, 5.15 - 5.725 GHz. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 310 g |
|---|---|
| Internal | No |
| DC-in jack | Yes |
| DHCP client | Yes |
| Indoor range | 802.11b/g: 100m, 802.11a: 80m. |
| Input current | 1.5 A |
| Outdoor range | 802.11b/g: 400m, 802.11a: 200m. |
| Frequency band | 2.412 - 2.472, 5.15 - 5.725 GHz |
| AC input voltage | 12 V |
| Cabling technology | 10/100Base-T(X) |
| Dimensions (WxDxH) | 152 x 92 x 45 mm |
| Security algorithms | EAP-TLS, EAP-TTLS, PEAP |
| Wireless technology | IEEE 802.11 a/b/g |
| Management protocols | SNMP v2c, MIB II, IPSec, PPTP, L2TP, Web/FTP/TFTP, SNMP |
| MAC address filtering | Yes |
| Antenna gain level (max) | 2 dBi |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 54 Mbit/s |
| Minimum system requirements | Internet Explorer 5.0 |
| Operating temperature (T-T) | 0 - 50 °C |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af |
| Supported data transfer rates | 802.11b: CCK: 11, 5.5Mbps; DQPSK: 2Mbps; DBPSK: 1 Mbps; 802.11a/g: OFDM: 54, 48, 36, 24, 18, 12, 9 & 6Mbps |
| Quality of Service (QoS) support | Yes |
| Warranty | 3-Year Warranty |
| Weight | 310 g |
Product Description
-802.11 a/b/g Wireless Connectivity - 2.4GHz and 5GHz. -Wi-Fi Multimedia (WMM) + Auto Traffic Classifier. -Wi-Fi WPA2-Certified. -Multiple SSID with Predefined VoIP, Guest SSID. -Powerful and Secure Management. -Advanced QoS. -Enhanced Fast Roaming. -SNMP. -Power over Ethernet. 15 Non-overlapping channels and complete rogue AP detection The ZyAir NWA-3100 can be configured as an 802.11a or 802.11b/g access point with up to 15 non-overlapping channels (upon regulatory domain) for high density and large-scale deployments. The dual-band support and rogue AP detection covers the whole spectrum and means all traffic is under close watch at all time. The dual-band configurable NWA-3100 wireless access point provides more channels and more security. Voice over WiFi ready Voice over WiFi (VoWiFi) is gaining prominence with the adoption by many businesses to reduce normal telephone costs. The NWA-3100 is an ideal solution as it is designed to combine voice, networking and wireless communications. WiFi WMM-certification and ZyXEL's unique Auto Traffic Classifier (ATC) means traffic is prioritised. Roaming capability include support for pre-authentication and PMK cache, as well as IAPP enhancements to improve the hand-off timing. Robust Security Features Security features include WPA2 with TKIP/AES encryption providing the latest and toughest standard-based security while WEP encryption supports legacy wireless clients. Additionally, WPA2 ensures compatibility with all WiFi-certified wireless clients. Virtual AP for specific applications The NWA-3100 supports up to eight SSIDs with 802.1Q VLAN tag that allows it to perform as multiple virtual access points. It also provides pre-defined voice SSID and guest SSID for optimized voice prioritisation, and offers top-level security for guest access without the difficulties of complicated configuration efforts. Variety of management features The access point supports a wide variety of administration features offering secure control over the system. The NWA-3100 provides a breakthrough benefit by using a centralized account on RADIUS server to control all the NWA-3100 access points; this simplifies management efforts and improves network security. Mass deployment made easy Users can perform mass installation and configuration upgrades with the auto-configuration function.
Key Features
Zyxel NWA-3100. Maximum data transfer rate: 54 Mbit/s. Security algorithms: EAP-TLS, EAP-TTLS, PEAP. Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Zyxel NWA-3100 54 Mbit/s Power over Ethernet (PoE) (ZYXNWA-3100) is 100% genuine Zyxel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Zyxel NWA-3100 54 Mbit/s Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Zyxel NWA-3100 54 Mbit/s Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ZYXNWA-3100.
