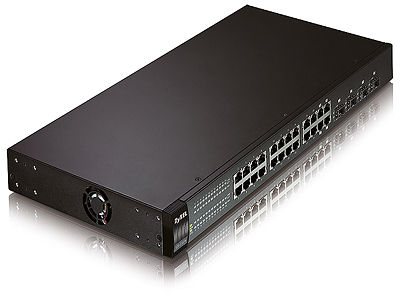

Zyxel GS-1524 Managed
Brand: Zyxel · SKU: ZYXGS-1524 · MPN: ZYXGS-1524 · Category: Components
Zyxel GS-1524, Managed. Zyxel GS-1524 Managed (part number ZYXGS-1524) is an enterprise components product available from Server Tech Central. Key specifications include weight 3 kg, stackable Yes, switch type Managed, certification UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1, dhcp features DHCP client, rate limiting Yes, auto mdi/mdi-x Yes, port mirroring Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 3 kg |
|---|---|
| Stackable | Yes |
| Switch type | Managed |
| Certification | UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1 |
| DHCP features | DHCP client |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4256 |
| Link aggregation | Yes |
| MAC address table | 8000 entries |
| Dimensions (WxDxH) | 438 x 215 x 44.45 mm |
| Power requirements | 100-240VAC, 50/60Hz |
| Switching capacity | 48 Gbit/s |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Management protocols | Telnet CLI, SNMP v1, RMON-Lite |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Static port security | Yes |
| Web-based management | Yes |
| Authentication method | IEEE 802.1Q |
| MAC address filtering | Yes |
| Broadcast storm control | Yes |
| SFP/SFP+ slots quantity | 4 |
| Warranty | 3-Year Warranty |
| Weight | 3 kg |
Product Description
- 48 Gbps Non-blocking Switching Fabric. - Auto DoS Attack Prevention. - Auto VoIP. - Flexible 4 GbE Uplink Interfaces. - IEEE 802.3ad Static Port Aggregation. - Streamlined Web-based Interface. - IEEE 802.1Q VLAN. - Port security. - IEEE 802.1p with 4 Priority Queues. - WRR and SPQ Queuing Algorithms. Robust System Design ZyXEL GS-1524 are 24-port L2 Gigabit switch with advanced Web-based management support, and it's specially designed for SB/Enterprise networks where extra bandwidth and advanced QoS or security features are required. To cope with the diverse requirements of SB/Enterprise businesses, the ZyXEL GS-1524 Web-managed switch comes with 20 Gigabit copper ports plus 4 dual-personality (RJ-45/SFP) Gigabit ports to provide 48 Gbps of non-blocking connectivity for SB/SMB networks. With the flexible multi-function design, GS-1524 fits any network with very little effort. Evolution New Managed Power While many legacy Web-based Smart switches improve manageability, configuration complexity is still an issue; for most SB/Enterprise, inadequate IT expertise and complicated configuration are the major concerns to overcome. Powered by the next-generation hardware platform with a content-aware engine, ZyXEL GS-1524 delivers stress-free networking. In addition, the streamlined and intuitive Web-GUI makes GS-1524 even easier to configure to slash the efforts needed. Auto DoS Attack Prevention Security is becoming increasingly important in SB/Enterprise networks. Equipped with Auto DoS Attack Prevention, the GS-1524 is capable of protection against ubiquitous DoS attacks. A few mouse clicks are all it takes to initiate the protection, complete the once-complicated ACL setting and reduce operating efforts dramatically. The GS-1524 supports 802.1Q VLAN for traffic isolation, as well as Static MAC forwarding and dynamic ARP to establish a strictly protected network. Auto VoIP Optimization Migration to VoIP is the key to differentiate business competitiveness. It usually requires IT expertise to optimize a network for VoIP applications. With emergence of the "Auto VoIP" feature, however, the GS-1524 can identify VoIP packet patterns and grant the highest priority to establish a VoIP-friendly communication automatically. "Auto VoIP" offers IP telephony without configuration headaches; features such as four priority queues and the WRR (Weighted Round Robin) scheduling algorithm are usually deployed on enterprise networks, allowing users to optimize network bandwidth usage and implement QoS (quality of service). In terms of bandwidth management and switch interconnections, users can choose from several options and pick the most appropriate with just a mouse click.
Key Features
Zyxel GS-1524. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 20. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE...
