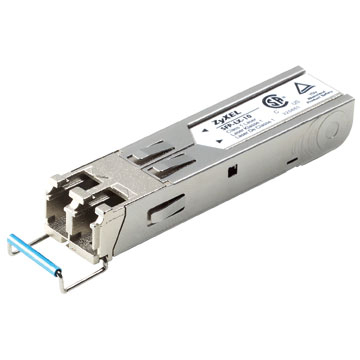

Zyxel SFP-LX-10-D network transceiver module 1000 Mbit/s 1310 nm
Brand: Zyxel Communications · SKU: ZXL-SFPLX10D · MPN: SFP-LX-10-D · Category: Networking
Zyxel SFP-LX-10-D, 1000 Mbit/s, SFP, LC, 50/125,62.5/125 µm, 10000 m, 1310 nm
Specifications
| Depth | 13.4 mm |
|---|---|
| Width | 56 mm |
| Height | 12.5 mm |
| Safety | Class 1 Laser, 21 CFR 1040.10, 1040.11, CSA, TUV |
| Wavelength | 1310 nm |
| Input voltage | 3.15 V |
| Auto MDI/MDI-X | Yes |
| Interface type | SFP |
| Rx power (max) | -20 dBmW |
| Maximum voltage | 3.45 V |
| Fiber optic connector | LC |
| Maximum transfer distance | 10000 m |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Warranty | 3-Year Warranty |
| Dimensions | 56 mm x 13.4 mm x 12.5 mm |
Product Description
SFP ports mean flexibility. The flexibility to choose which fiber you want to run and what sort of distance you need. They save money by allowing you to use existing fiber so you don’t have to run more. Instead of buying a switch with built-in fiber ports, buy a switch with SFP ports that allows you to choose what type of fiber transceiver you want to use on a port-by-port basis. With DDMI Support. Gigabit Speed and Flexibility ZyXEL's Small Form-factor Pluggable (SFP) transceiver family provides performance and flexibility with full duplex Gigabit speeds and hot-pluggable into Gigabit Ethernet port. Small Size and High Port Density ZyXEL's SFP transceiver's compact design provides high port density. For example, ZyXEL GS-3012F switch can connect up to 12 fiber links - all at an affordable price. Industry Standards-based Compliance ZyXEL's SFP transceiver family is compliant with IEEE 802.3z and SFP MSA allowing easy interoperability with all standard compliance devices from different vendors.
Key Features
Zyxel SFP-LX-10-D. Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP, Fiber optic connector: LC. Input voltage: 3.15 V, Maximum voltage: 3.45 V. Safety: Class 1 Laser, 21 CFR 1040.10, 1040.11, CSA, TUV. Width: 56 mm, Depth: 13.4 mm, Height: 12.5 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Zyxel SFP-LX-10-D network transceiver module 1000 Mbit/s 1310 nm (ZXL-SFPLX10D) is 100% genuine Zyxel Communications hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Zyxel SFP-LX-10-D network transceiver module 1000 Mbit/s 1310 nm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Zyxel SFP-LX-10-D network transceiver module 1000 Mbit/s 1310 nm compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ZXL-SFPLX10D.
