Brand: Dell · SKU: YX4X6 · MPN: YX4X6 · Category: Networking

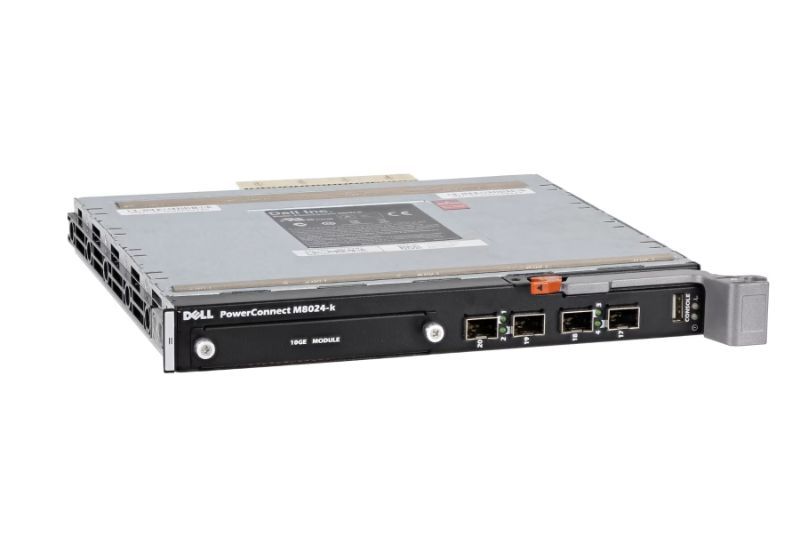

The Dell PowerConnect M8024-k is a Layer 3 Managed Blade Switch designed for the Dell PowerEdge M1000e Blade Enclosure. It delivers 10Gb Ethernet connectivity for up to sixteen M-Series blade servers, simplifying deployment in 10Gb Ethernet infrastructures. It supports both 1Gb and 10Gb auto-sensing connections to the server and LAN. It features 16 internal 10Gb (KR) Ethernet ports and up to 8 external ports (4 fixed 1/10Gb SFP+ ports and 4 via an optional FlexIO module slot). It is capable of FCoE Transit and supports DCB requirements.
| Model | M8024-K |
|---|---|
| CPU SDRAM | 512MB |
| Form Factor | Single-wide I/O Module for M1000e blade enclosure |
| OS Platform | PC (Dell OS5 Installed) |
| Flash Memory | 32MB |
| Product Type | Layer 3 Managed Blade Switch |
| Compatibility | PowerEdge M1000e Blade Enclosure |
| MAC Addresses | Up to 16K |
| Max Data Rate | 10 Gb/s per port |
| Internal Ports | 16 x 10Gb KR blade-facing connections |
| Forwarding Rate | 357 Mpps |
| Ethernet Standard | 10 Gigabit Ethernet |
| External Ports (Fixed) | 4 x 10GbE SFP+ fixed uplink ports |
| Switch Fabric Capacity | 480 Gbps aggregate bandwidth |
| External Ports (FlexIO) | 4 x 10GbE SFP+ via optional module |
| Warranty | 1 Year (Refurbished listings may vary, e.g., 90-day or 1-year ETB warranty mentioned) |
| Weight | 2.7kg, 5.8 lbs |
| Dimensions | 267 x 258 x 31mm (W x D x H) or 10.5" x 10.2" x 1.2" |
The Dell PowerConnect M8024-k (Part Number YX4X6) is a high-performance, 10Gb Ethernet blade switch module for the Dell M1000e enclosure, designed to simplify data center transitions to 10GbE while still supporting 1Gb connections. It offers a switch fabric capacity of 480 Gbps aggregate bandwidth and supports features like flow-based port mirroring, broadcast storm control, and FCoE transit.
Yes, this Dell PowerConnect M8024-K 10GbE Blade Switch (YX4X6) is 100% genuine Dell hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Dell PowerConnect M8024-K 10GbE Blade Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the YX4X6.
