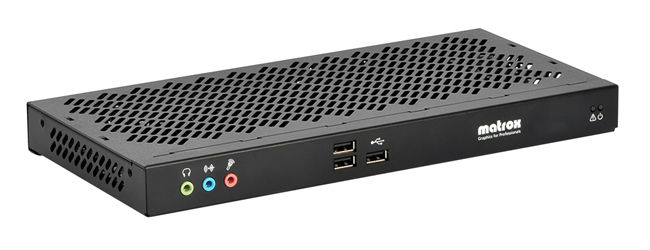

Matrox Extio F2208 Dual Monitor KVM Optical Extender / XTO2-F2208F
Brand: Matrox · SKU: XTO2-F2208F · MPN: XTO2-F2208F · Category: Data Center
Matrox Extio F2208 Dual Monitor KVM Optical Extender / XTO2-F2208F, Transmitter, Wired, 1000 m, Fiber, 2560 x 1600 pixels, 1920 x 1200 pixels
Specifications
| Type | Transmitter |
|---|---|
| Certification | ACMA, CE, FCC, VCCI |
| Product colour | Black |
| Dimensions (WxDxH) | 299.7 x 29.2 x 143.7 mm |
| Cable types supported | Fiber |
| Connectivity technology | Wired |
| On Screen Display (OSD) | No |
| Maximum analog resolution | 1920 x 1200 pixels |
| Maximum transfer distance | 1000 m |
| Maximum digital resolution | 2560 x 1600 pixels |
| Harmonized System (HS) code | 84733080 |
| Receiver local video port type | DisplayPort |
| Transmitter local video port type | DisplayPort |
| Receiver local keyboard/mouse port type | USB |
| Transmitter local keyboard/mouse port type | USB |
| Warranty | 3-Year Warranty |
Product Description
High Performance, Dual Monitor KVM Optical Extender - High performance, zero compression KVM optical extension up to 1 km from the PC1 - Supports up to 2 displays (DisplayPort™, Digital, or Analog) from a single appliance, fiber-optic cable and workstation2 - Independent and stretched mode support for 2x1 configurations - Combine two Matrox PCIe interface cards, Matrox Extio F2208, Extio F2408, plus Extio F2408E Expander units to drive up to 16 DisplayPort and/or DVI displays, keyboard, mouse, audio and up to eight additional USB 2.0 ports at up to 1 km from the PC - Clone multiple displays in two separate remote locations across two fiber-optic cables, while also stretching desktops - Max. resolution of 2560x1600 (DisplayPort), & 1920x1200 (Digital, Analog) per display - Fiber-optic connection allows raw, uncompressed data to travel between the remote host system and the user-side Extio F2208 appliance, resulting in unmatched HD resolution support and uncompromised workstation performance - Designed for process control rooms, dispatch centers, and other mission-critical environments that require stable, reliable I/O extension technology - Flexible connectivity with 5x USB 2.0 ports for keyboard, mouse, touch screens and other HIDs - BIOS Level Keyboard Support enables basic keyboard functionality and access to the system BIOS directly from the user-side Extio F2208 appliance - Extio Setup Utility (BIOS Level Configuration & Diagnostics) to verify and/or configure the fiber-optic transceiver, link status, USB ports, hardware mapping and device password protection - Matrox Appliance Integrity Scanner to log device hardware/firmware configurations - Matrox Appliance Configuration Utility to field upgrade firmware to take advantage of the latest features - Wake from sleep/standby by pressing any keyboard key with select systems - Passive cooling (heat sink with no fan) for silent operation and extra reliability - PCI Express x1 fiber-optic interface card (Part # XTO2A-FESLPAF) sold separately - Extensive operating system support for Microsoft® Windows® and Linux - Intuitive and easy-to-use Matrox PowerDesk 3.0 multi-display configuration and desktop management software Hardware included3 - Matrox Extio F2208 remote graphics unit - 2x DisplayPort to DVI adapters - Universal, external, 12-volt-DC, 5-amp, power adapter - Power supply cable for various regions (North America / Japan, UK, Continental Europe, Australia) Software included - 32/64bit Matrox drivers for a variety of Microsoft® Windows® desktop/workstation/server operating systems, and Linux (a detailed list is available here). - Matrox PowerDesk 3.0 (driver interface and utilities) 1 Extio F2208 ships with multi-mode transceivers supporting a maximum distance of 400m (1312'). Single Mode upgrade kit (Part # XTO2-2SMTXF) to support distances above 400m (1312') and up to 1 km (3280') sold separately. 2 Digital support via 2x DisplayPort to DVI adapters included with Extio F2208. Analog support via DisplayPort to Analog (VGA) adapters available from 3rd party vendors. Contact Matrox for details. 3Fiber-optic cable and Matrox PCIe x1 interface card sold separately.
Key Features
Matrox Extio F2208 Dual Monitor KVM Optical Extender / XTO2-F2208F. Type: Transmitter, Connectivity technology: Wired, Maximum transfer distance: 1000 m. Transmitter local video port type: DisplayPort, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: DisplayPort, Receiver local keyboard/mouse port type: USB
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Matrox Extio F2208 Dual Monitor KVM Optical Extender / XTO2-F2208F (XTO2-F2208F) is 100% genuine Matrox hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Matrox Extio F2208 Dual Monitor KVM Optical Extender / XTO2-F2208F includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Matrox Extio F2208 Dual Monitor KVM Optical Extender / XTO2-F2208F compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the XTO2-F2208F.
