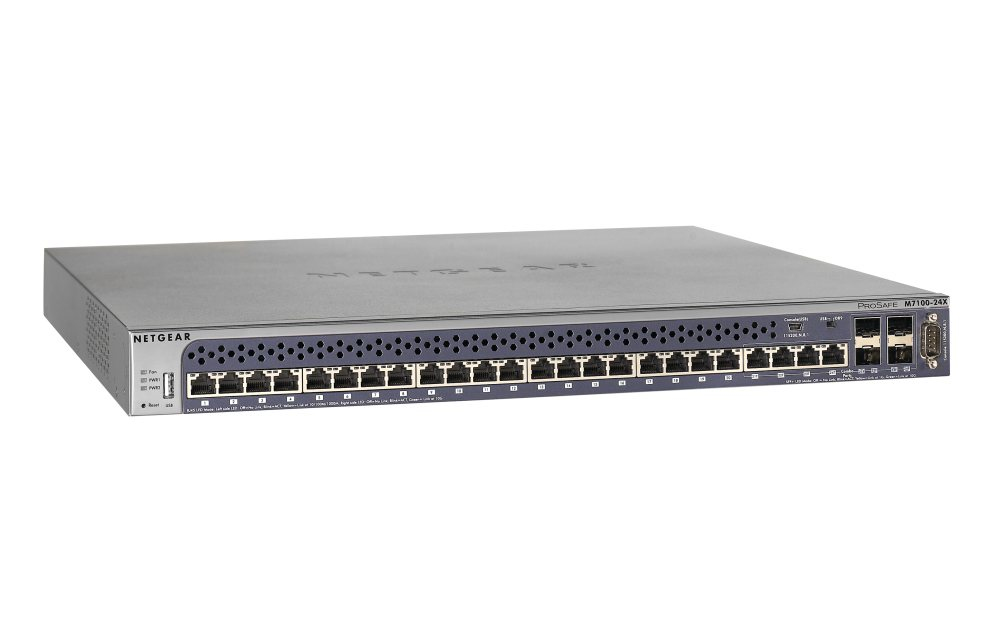

NETGEAR XSM7224 Managed L2+ Grey
Brand: NETGEAR · SKU: XSM7224-100NES · MPN: XSM7224-100NES · Category: Components
NETGEAR XSM7224, Managed, L2+, Full duplex, Rack mounting. NETGEAR XSM7224 Managed L2+ Grey (part number XSM7224-100NES) is an enterprise components product available from Server Tech Central. Key specifications include depth 431 mm, width 440 mm, height 43 mm, safety CE, CSA, UL, weight 6.3 kg, power led Yes, stackable Yes, ip routing Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 431 mm |
|---|---|
| Width | 440 mm |
| Height | 43 mm |
| Safety | CE, CSA, UL |
| Weight | 6.3 kg |
| Power LED | Yes |
| Stackable | Yes |
| IP routing | Yes |
| 10G support | Yes |
| Full duplex | Yes |
| Memory type | DDR2-SDRAM |
| Switch type | Managed |
| Console port | RS-232 |
| Flash memory | 128 MB |
| Switch layer | L2+ |
| VLAN support | Yes |
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| LED indicators | Yes |
| Port mirroring | Yes |
| Product colour | Grey |
| Cables included | AC, RS-232 |
| Warranty | 3-Year Warranty |
| Weight | 6.3 kg |
| Dimensions | 440 mm x 431 mm x 43 mm |
Product Description
The NETGEAR 10 Gigabit M7100 series consists of a fully managed, low-latency, line-rate 10G Copper "Base-T" switch solution; 24 ports 10GBase-T (RJ45) that support Fast Ethernet, Gigabit Ethernet and 10 Gigabit speeds for server, storage and network progressive upgrade; 4 ports SFP+ that broaden 10 Gigabit connectivity for 1G/10G fiber uplinks and other DAC connections. M7100 series is ideal for all organizations considering reliable, affordable and simple 10 Gigabit Ethernet Top-of-Rack server access layer; and high-density, high-performance 10GbE backbone architectures. Layer 2+ with static routing - M7100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions - L3 fixed routes to the next hop towards the destination network are added to the routing table - L3 routing is wire-speed in M7100 series hardware with up to 128 static routes (IPv4) 10 Gigabit transition with Base-T - 10GBase-T, like other Base-T technologies, uses the standard RJ45 Ethernet jack - It is backward compatible, auto-negotiating between higher and lower speeds – thereby not forcing an all at once network equipment upgrade - Cat5/Cat5E are supported for Gigabit speeds; when Cat6 twisted pair copper cabling is minimum requirement for 10 Gigabit up to 30 meters - Cat6A or newer Cat7 cabling allow for up to 100 meter 10GBase-T connections Top-of-the-line performance and IPv6 ready - 32K MAC addresses; 480Gbps switching fabric; 12K jumbo frames; Auto-iSCSI Flow Acceleration; Auto-EEE Energy Efficient Ethernet - IPv4/IPv6 comprehensive traffic filtering (ACLs), and prioritization (QoS - DiffServ) Top-of-rack availability Two redundant, hot-swap power supplies (one PSU comes with the switch; second optional PSU is ordered separately) Two removable fan trays provide front-to-back cooling airflow for best compatibility with data center hot aisle / cold aisle airflow patterns Industry standard management - Industry standard command line interface (CLI) - Fully functional NETGEAR web interface (GUI)
Key Features
NETGEAR XSM7224. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 4, USB 2.0 ports quantity: 1, Console port: RS-232. Full duplex. MAC address table: 32000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: DC-in jack. Rack mounting
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NETGEAR XSM7224 Managed L2+ Grey (XSM7224-100NES) is 100% genuine NETGEAR hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NETGEAR XSM7224 Managed L2+ Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NETGEAR XSM7224 Managed L2+ Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the XSM7224-100NES.
