Brand: Supermicro · SKU: X9SRH-7F-O · MPN: MBD-X9SRH-7F-O · Category: Servers

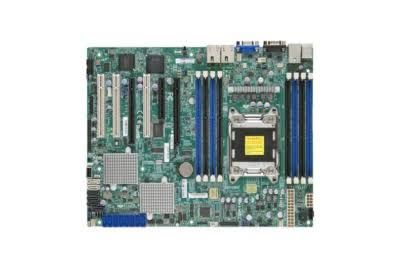

The Supermicro X9SRH-7F is a single-socket ATX server motherboard featuring the Intel C602J chipset. It supports a single Intel Xeon E5-1600 or E5-2600 series processor (Socket R LGA-2011). It offers support for up to 256GB of ECC DDR3 memory across 8 DIMM slots, supporting speeds up to 1600MHz. Storage connectivity includes 2 SATA 6Gb/s (SATA3), 4 SATA 3Gb/s (SATA2), and 8 SAS2 (6Gbps) ports via an integrated LSI 2308 SAS2 controller. Networking is handled by an integrated Intel I350 Dual Port Gigabit Ethernet controller, plus a dedicated IPMI LAN port. It includes onboard graphics via a Matrox G200eW controller and features multiple expansion slots, including PCI-E 3.0 and older PCI slots. It supports various RAID levels (0, 1, 5, 1+0) and includes IPMI 2.0 with KVM-over-LAN support.
| IPMI | IPMI 2.0 with Dedicated LAN and KVM-over-LAN |
|---|---|
| Chipset | Intel C602J |
| LAN Ports | 2 x Gigabit Ethernet (Intel i350), 1 x Dedicated IPMI LAN |
| SAS Ports | 8 x SAS2 (6Gbps) via LSI 2308 |
| Max Memory | 256 GB (LR/RDIMM) or 64GB (UDIMM) |
| PCIe Slots | 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8 (in x16), 1 x PCIe 2.0 x8, 3 x PCI-32 |
| SATA Ports | 2 x SATA3 (6Gbps), 4 x SATA2 (3Gbps) |
| Form Factor | ATX |
| Memory Type | DDR3 ECC/Non-ECC (RDIMM, UDIMM) |
| Memory Slots | 8 x DIMM |
| RAID Support | RAID 0, 1, 5, 1+0 (SATA & SAS) |
| Onboard Video | Matrox G200eW |
| Processor Socket | Socket R LGA-2011 |
| Processor Support | Single Intel Xeon E5-1600/E5-2600 series |
| Memory Speed Supported | 1600/1333/1066 MHz |
| Warranty | 1-year limited warranty (parts), 3-years (labor) |
| Weight | N/A |
| Dimensions | 30.5 cm (Depth) x 24.4 cm (Width) |
The Supermicro X9SRH-7F-O is a high-performance, single-socket server motherboard based on the Intel C602J chipset, designed for high-end server platforms utilizing Intel Xeon E5-1600/E5-2600 series processors. It boasts extensive I/O capabilities including 8 SAS2 ports, 6 SATA ports, dual 1GbE LAN, and supports up to 256GB of DDR3 ECC memory. Its feature set, including integrated RAID and IPMI, makes it suitable for data center, enterprise IT, and high-performance computing environments.
