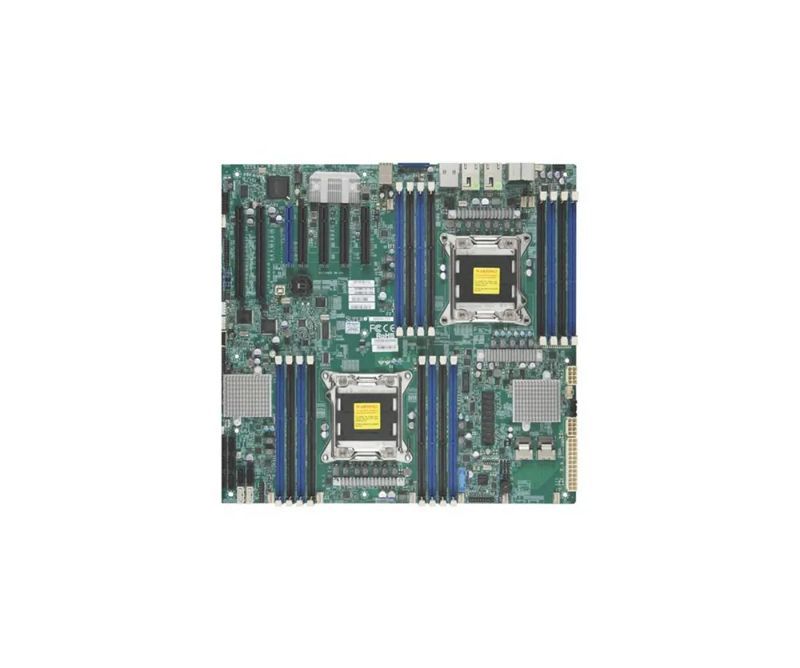

Supermicro X9DAX-7F-HFT Server Motherboard
Brand: Supermicro · SKU: X9DAX-7F-HFT · MPN: X9DAX-7F-HFT · Category: Servers
The Supermicro X9DAX-7F-HFT is a dual-socket server motherboard built on the Intel C602 chipset, supporting dual Intel Xeon E5-2600 or E5-2600 v2 series processors (Socket R LGA 2011) with QPI up to 8.0 GT/s. It features 16 DIMM slots supporting up to 1TB of DDR3 memory (RDIMM/LRDIMM ECC) or up to 128GB of UDIMM ECC/non-ECC memory, with speeds up to 1866MHz depending on the CPU. Storage connectivity includes 8x SATA2 (3Gbps) ports, 2x SATA3 (6Gbps) ports, and 8x SAS2 (6Gbps) ports managed by an LSI 2208 controller with hardware RAID support (RAID 0, 1, 5, 6, 10, 50, 60). Expansion includes 2x PCI-E 3.0 x16 slots, 3x PCI-E 3.0 x8 slots, and 1x UIO PCI-E 3.0 x8 (or PCI-E 2.0 x4) slot. Networking is provided by the Intel i350 Dual Port Gigabit Ethernet LAN, plus a dedicated IPMI LAN port. It features RealTek ALC889 7.1 High Definition Audio and supports IPMI 2.0 for remote management. The form factor is Enhanced Extended ATX (EE-ATX).
Specifications
| LAN | Intel i350 Dual Port Gigabit Ethernet + Dedicated IPMI LAN |
|---|---|
| Chipset | Intel C602 |
| SAS Ports | 8x SAS2 (6Gbps) via LSI 2208 controller |
| SATA Ports | 2x SATA3 (6Gbps), 8x SATA2 (3Gbps) |
| CPU Support | Intel Xeon E5-2600 / E5-2600 v2 Family |
| Form Factor | Enhanced Extended ATX |
| Memory Type | DDR3 ECC RDIMM/LRDIMM or ECC/non-ECC UDIMM |
| Memory Slots | 16x DIMM |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60 (Hardware RAID via LSI 2208) |
| Expansion Slots | 2x PCIe 3.0 x16, 3x PCIe 3.0 x8, 1x UIO PCIe 3.0 x8 (or PCIe 2.0 x4) |
| Max Memory Speed | 1866MHz (dependent on CPU) |
| Processor Socket | Dual Socket R (LGA 2011) |
| Max Memory Capacity | Up to 1TB (RDIMM/LRDIMM) |
| Warranty | Varies; Typically 1 year parts/3 years labor for new/refurbished from vendor. |
| Weight | N/A |
| Dimensions | Enhanced Extended ATX (Approx. 13.7" x 13" or 34.74 cm x 33 cm from similar models) |
Key Features
The Supermicro X9DAX-7F-HFT is a high-performance, dual-processor server motherboard designed for demanding Data Center, Enterprise IT, Cloud Computing, Technical Computing, and HPC environments. It provides robust support for Intel Xeon E5-2600 series processors and high-capacity, high-speed DDR3 memory configurations, coupled with comprehensive storage options including hardware RAID via SAS2 connectivity.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Supermicro X9DAX-7F-HFT Server Motherboard (X9DAX-7F-HFT) is 100% genuine Supermicro hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Supermicro X9DAX-7F-HFT Server Motherboard includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Supermicro X9DAX-7F-HFT Server Motherboard compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the X9DAX-7F-HFT.
