Cisco 10GBASE-LR X2 Transceiver Module
Brand: Cisco · SKU: X2-10GB-LR · MPN: X2-10GB-LR · Category: Networking

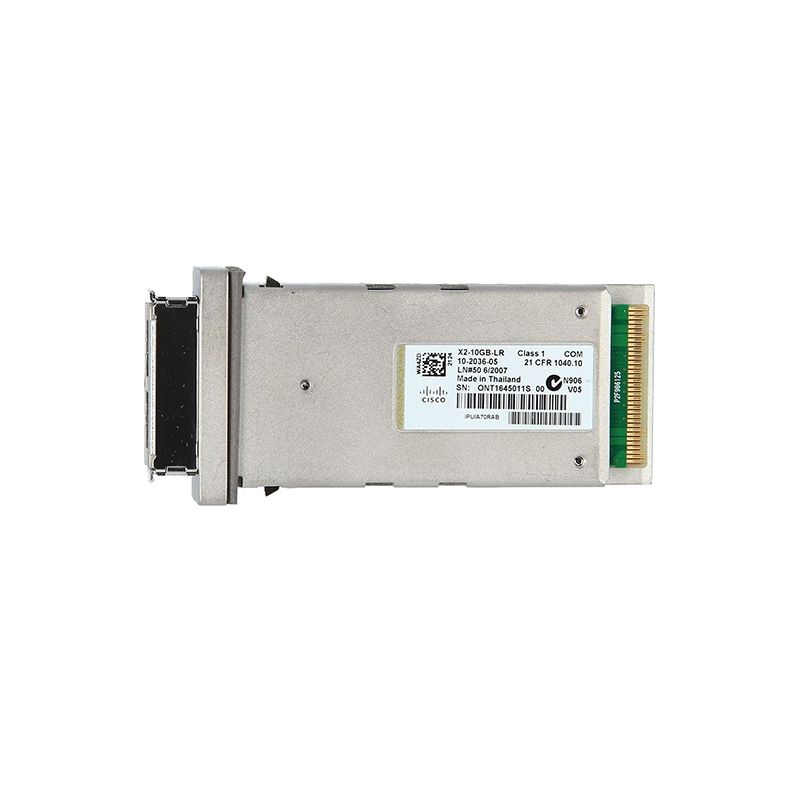

The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652). It is a hot-swappable input/output device that plugs into an Ethernet X2 port of a Cisco switch or router to link the port with the network. This module provides 10-Gigabit Ethernet connectivity and is designed for long-range data transmission. It features an SC duplex connector and operates at a 1310nm wavelength. The module supports Digital Optical Monitoring (DOM) for real-time monitoring of operating parameters such as optical output power, optical input power, temperature, and transceiver supply voltage.
Specifications
| Connector | SC Duplex |
|---|---|
| Data Rate | 10 Gbps |
| Cable Type | SMF (Single-mode Fiber) |
| Compliance | IEEE 802.3ae, X2 MSA |
| Wavelength | 1310 nm |
| Form Factor | X2 |
| Max Distance | 10 km |
| Power Consumption | 3.5W - 4.0W |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Warranty | 90-Day Limited Warranty |
| Weight | 10.58 oz |
| Dimensions | 3.6 x 1.4 x 0.5 inches |
Key Features
The Cisco X2-10GB-LR is a high-performance 10Gbps transceiver optimized for long-distance enterprise and data center applications. It allows for flexible network design by being hot-swappable and interoperable with other 10G form factors like Xenpak, XFP, and SFP+ on the same fiber link.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco 10GBASE-LR X2 Transceiver Module (X2-10GB-LR) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco 10GBASE-LR X2 Transceiver Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco 10GBASE-LR X2 Transceiver Module compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the X2-10GB-LR.
