Brand: Supermicro · SKU: X10SRM-F · MPN: MBD-X10SRM-F-O · Category: Servers

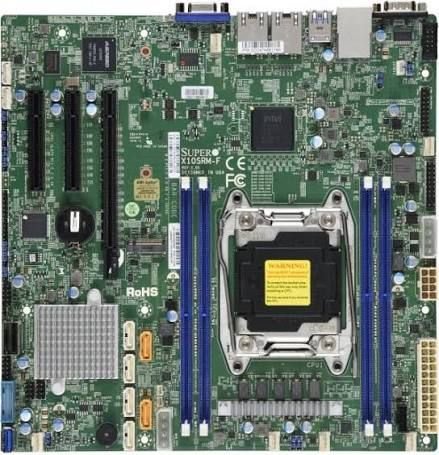

Single socket R3 (LGA 2011) motherboard supporting Intel® Xeon® processor E5-2600 v4/v3 and E5-1600 v4/v3 family processors. It features the Intel® C612 chipset, supports up to 512GB ECC 3DS LRDIMM memory across 4 DIMM slots with speeds up to DDR4-2400MHz. Expansion includes 1 PCI-E 3.0 x16 and 2 PCI-E 3.0 x8 slots. Networking is handled by Intel® i350 Dual GbE LAN ports. Storage options include 10 SATA3 (6Gbps) ports via the C612 chipset. It also includes 1 VGA port, 2 COM ports, 1 TPM, 5 USB 3.0 ports, and 6 USB 2.0 ports, along with 2 SuperDOM connectors with built-in power. The form factor is Micro ATX (9.60" x 9.60").
| LAN | Intel I350 Dual GbE LAN + 1 Dedicated IPMI LAN |
|---|---|
| Chipset | Intel C612 |
| Max Memory | 512 GB (ECC 3DS LRDIMM) |
| PCIe Slots | 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x8 |
| SATA Ports | 10 x SATA3 (6Gbps) |
| Form Factor | Micro ATX |
| Memory Slots | 4 x DDR4 DIMM |
| USB 3.0 Ports | 5 total (2 rear + 2 via headers + 1 Type A) |
| Processor Socket | Socket R3 (LGA 2011-v3) |
| Warranty | 1 Year Limited Warranty (Parts), 3 Years Limited Warranty (Labor) |
| Weight | 10 lbs (Retail), 2.675 lb (SKU specific) |
| Dimensions | 9.60" x 9.60" (243.84 mm x 243.84 mm) |
The Supermicro X10SRM-F is a single-socket Micro ATX motherboard built on the Intel C612 chipset, designed for high-performance server and workstation applications using Intel Xeon E5-1600/2600 v3/v4 series processors. It offers robust memory support, comprehensive I/O, and dual Gigabit Ethernet via the Intel i350 controller.
Yes, this Supermicro X10SRM-F Server Motherboard (X10SRM-F) is 100% genuine Supermicro hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Supermicro X10SRM-F Server Motherboard includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the X10SRM-F.
