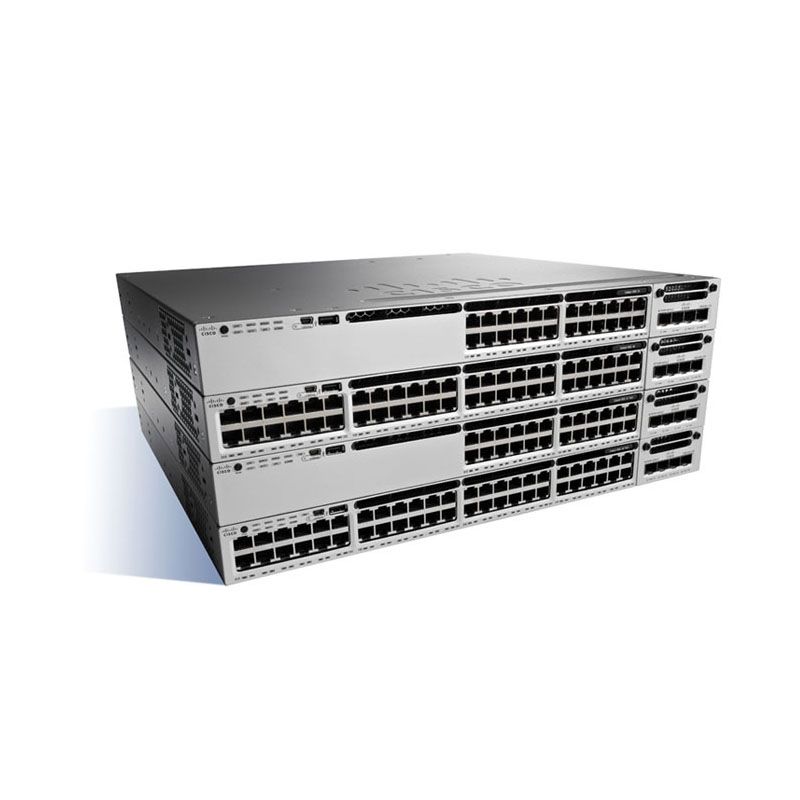

Cisco Catalyst 3850 24-Port UPOE Switch with 1100W AC PSU (IP Services)
Brand: Cisco · SKU: WS-C3850-24U-E · MPN: WS-C3850-24U-E · Category: Components
The Cisco WS-C3850-24U-E is a stackable, Layer 3 switch from the Catalyst 3850 Series, featuring 24 10/100/1000 Ethernet UPOE ports and one network module slot. It comes equipped with an 1100W AC Power Supply and includes three fan modules. This model runs the IP Services feature set and is designed to support the convergence of wired and wireless access, powered by the Cisco UADP ASIC and resilient StackWise-480 technology. It supports full IEEE 802.3at PoE+ and Cisco UPOE to power high-demand endpoints like wireless access points and VoIP phones, with a PoE budget of 800W. The switch has a switching capacity of 92 Gbps and a forwarding rate of 68.4 Mpps, with a MAC address table size of 32,000 entries. It includes built-in 10G SFP+ uplinks (though the uplink module itself is optional/sold separately, 2x 10G SFP+ ports are often cited as default or supported via common modules). It supports stacking up to nine switches with 480 Gbps of stack bandwidth.
Specifications
| DRAM | 4 GB |
|---|---|
| Ports | 24 x 10/100/1000 (UPOE) RJ45 |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Feature Set | IP Services |
| Flash Memory | 2 GB |
| Uplink Ports | Via optional Network Module Slot (e.g., supports 4x 1G SFP or 2x 10G SFP+) |
| Forwarding Rate | 68.4 Mpps |
| PoE/UPOE Budget | 800W |
| Stacking Bandwidth | 480 Gbps (via StackWise-480) |
| Switching Capacity | 92 Gbps |
| Power Supply Included | 1x PWR-C1-1100WAC (1100W AC) |
| MAC Address Table Size | 32,000 |
| Warranty | Not Available (often sold refurbished or new with standard Cisco limited warranties depending on reseller) |
| Weight | ~5.5 kg |
| Dimensions | 1.73 in (H) x 17.5 in (W) x 19.2 in (D) or 4.45 cm x 44.5 cm x 48.8 cm (1 RU chassis) |
Key Features
The Cisco WS-C3850-24U-E is a high-performance, stackable access switch designed for enterprise environments. It features 24 UPOE-capable ports, 1 network module slot for uplink flexibility, and an included 1100W AC power supply. It supports unified wired and wireless access, leveraging StackWise-480 technology for high-availability stacking and a 480 Gbps stack bandwidth. With 800W PoE budget, it efficiently powers high-demand devices.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco Catalyst 3850 24-Port UPOE Switch with 1100W AC PSU (IP Services) (WS-C3850-24U-E) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco Catalyst 3850 24-Port UPOE Switch with 1100W AC PSU (IP Services) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco Catalyst 3850 24-Port UPOE Switch with 1100W AC PSU (IP Services) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WS-C3850-24U-E.
