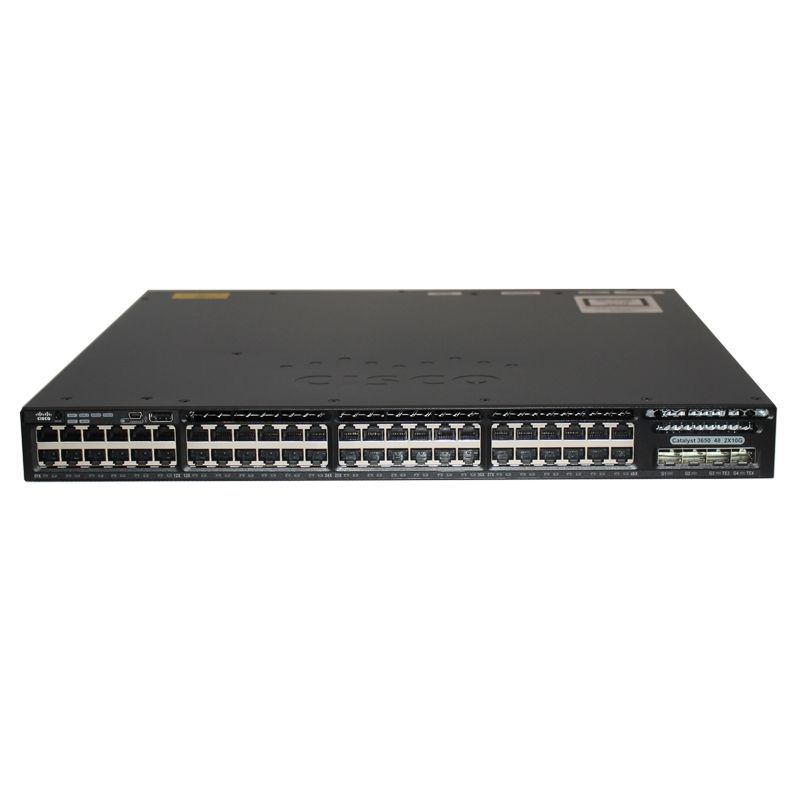

WS-C3650-48TD-L, Cisco Catalyst 3650 Switch, 48xGE Data/2x10GE Uplink/LAN Base

Brand: Cisco · SKU: WS-C3650-48TD-L · MPN: WS-C3650-48TD-L · Category: Networking

WS-C3650-48TD-L, Cisco Catalyst 3650 Switch, 48xGE Data/2x10GE Uplink/LAN Base
Request for Quote
In Stock • 10 units

Cisco Catalyst 3650 48 Port Data 2x10G Uplink LAN Base

View Networking Products

Specifications

CPUMulticore CPU
RAM4GB
MTBF527,580 hours
Depth17.625in (44.8cm)
ModelWS-C3650-48TD-L
Ports48 x 10/100/1000 + 2 x 10G SFP+ & 2 x 1G SFP
Width17.5in (44.5cm)
Height1.73in (4.4cm)
Weight17.49 kg
FNF entriesDisabled (IP Base license required)
Flash memory2GB
Power devicePower supply - redundant - plug-in module
Power supplyPWR-C2-1025WAC
Console portsUSB (Type-B), Ethernet (RJ-45)
Main features· EEM · RPS support · IP service-level agreements (SLAs) · Advanced IP unicast routing protocols · Jumbo Frames, VLANs, Voice VLAN, VTPv2, CDPv2, LLDP · 802.3ad LACP and PAgP, PVST/PVST+ · 802.1W/802.1S, PortFast/UplinkFast, DTP · Port CoS trust and override, trusted boundary · ACL classification, ingress policing, Auto QoS, per-VLAN policies, 802.1p queues · Scheduling, priority queuing, CoS priority queues · Queue weights, buffers and thresholds, class & policy maps, CoS and DSCP mapping · Weighted Tail Drop · IGMP v1/v2/v3 and MLD v1/v2 · DHCP server, DSCP transparency · HSRP, VRRP, BGP · RIP v1/v2, EIGRP, PIM, OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 · VRF-Lite · PIM-SM/DM, PIM sparse-dense mode, SSM · Flexible NetFlow
Enclosure typeRack-mountable - 1U
Management MIBs· BRIDGE-MIB, CISCO-AUTH-FRAMEWORK-MIB · CISCO-BGP4-MIB, BGP4-MIB, CISCO-BRIDGE-EXT-MIB · CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB · CISCO-CALLHOME-MIB, CISCO-CEF-MIB · CISCO-CIRCUIT-INTERFACE-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB · CISCO-CONTEXT-MAPPING-MIB, CISCO-DEVICE-LOCATION-MIB · CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB · CISCO-EMBEDDED-EVENT-MGR-MIB · CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, ENTITY-MIB · CISCO-ERR-DISABLE-MIB, CISCO-CONFIG-COPY-MIB · CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB · CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB · CISCO-IETF-ISIS-MIB, CISCO-IF-EXTENSION-MIB · CISCO-IGMP-FILTER-MIB, CISCO-CONFIG-MAN-MIB · CISCO-IP-CBR-METRICS-MIB, CISCO-IPMROUTE-MIB, CISCO-IP-STAT-MIB · CISCO-IP-URPF-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB · CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB · CISCO-MAC-AUTH-BYPASS-MIB, CISCO-MAC-NOTIFICATION-MIB · CISCO-MDI-METRICS-MIB, CISCO-FLASH-MIB · CISCO-OSPF-MIB, CISCO-OSPF-TRAP-MIB · CISCO-PAE-MIB, CISCO-PAGP-MIB · CISCO-PIM-MIB, CISCO-PING-MIB · CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB · CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB · CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB · CISCO-RTP-METRICS-MIB, CISCO-RTTMON-MIB · CISCO-SMART-INSTALL-MIB · CISCO-SNMP-TARGET-EXT-MIB, CISCO-STACKMAKER-MIB · CISCO-MEMORY-POOL-MIB, CISCO-STP-EXTENSIONS-MIB · CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB · CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB · CISCO-VTP-MIB, EtherLike-MIB · HC-RMON-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB · IF-MIB, IGMP-MIB, IGMP-STD-MIB, IP-FORWARD-MIB · IP-MIB, IPMROUTE-STD-MIB, LLDP-EXT-MED-MIB, LLDP-MIB · NOTIFICATION-LOG-MIB, OLD-CISCO-MEMORY-MIB, CISCO-CDP-MIB · POWER-ETHERNET-MIB, RMON2-MIB, RMON-MIB · SNMP-COMMUNITY-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB · SNMP-NOTIFICATION-MIB, SNMP-PROXY-MIB, SNMP-TARGET-MIB · SNMP-USM-MIB, SNMPv2-MIB, SNMP-VIEW-BASED-ACM-MIB · TCP-MIB, UDP-MIB, CISCO-IMAGE-MIB, CISCO-STACKWISE-MIB · AIRESPACE-WIRELESS-MIB, CISCO-LWAPP-IDS-MIB · CISCO-LWAPP-AP-MIB, CISCO-LWAPP-CCX-RM-MIB · CISCO-LWAPP-CLIENT-ROAMING-MIB · CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB · CISCO-LWAPP-DOT11-CCX-CLIENT-MIB · CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB · CISCO-LWAPP-DOT11-CLIENT-MIB, CISCO-LWAPP-DOT11-MIB · CISCO-LWAPP-DOWNLOAD-MIB, CISCO-LWAPP-LINKTEST-MIB · CISCO-LWAPP-MFP-MIB, CISCO-LWAPP-MOBILITY-EXT-MIB · CISCO-LWAPP-QOS-MIB, CISCO-LWAPP-REAP-MIB · CISCO-LWAPP-ROGUE-MIB, CISCO-LWAPP-RRM-MIB · CISCO-LWAPP-SI-MIB, CISCO-LWAPP-TSM-MIB · CISCO-LWAPP-WLAN-MIB, CISCO-LWAPP-WLAN-SECURITY-MIB
Stack bandwidth160Gbps
System softwareIOS LAN Base (upgradable)
Maximum VLAN IDs255
Power redundancyOptional
Storage altitudeUp to 16,400 ft (up to 5000 m)
Expansion slot(s)Power redundant slot
Rack mounting kitOptional
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this WS-C3650-48TD-L, Cisco Catalyst 3650 Switch, 48xGE Data/2x10GE Uplink/LAN Base (WS-C3650-48TD-L) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This WS-C3650-48TD-L, Cisco Catalyst 3650 Switch, 48xGE Data/2x10GE Uplink/LAN Base includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the WS-C3650-48TD-L, Cisco Catalyst 3650 Switch, 48xGE Data/2x10GE Uplink/LAN Base compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WS-C3650-48TD-L.
