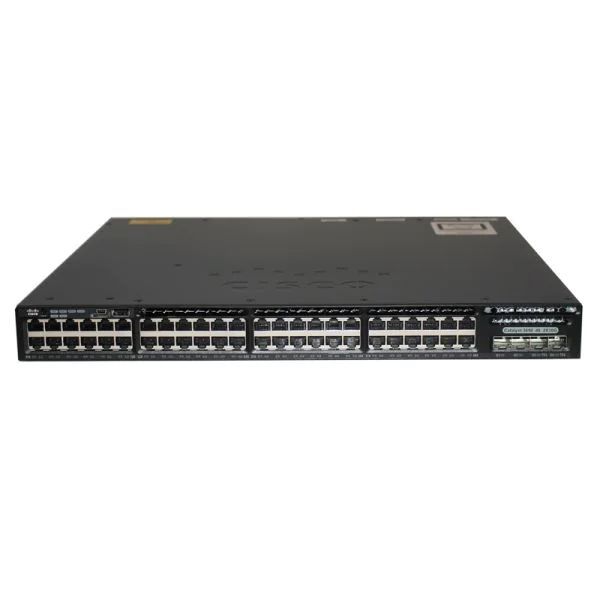

Cisco Catalyst 3650 Series 48-Port Data Switch (WS-C3650-48TD)
Brand: Cisco · SKU: WS-C3650-48TD · MPN: WS-C3650-48TD · Category: Networking
The Cisco Catalyst 3650 series is an enterprise-class standalone and stackable access-layer switch designed for full convergence between wired and wireless on a single platform, built on the Cisco StackWise-160 technology and utilizing the Cisco Unified Access Data Plane (UADP) ASIC. It supports features like uniform wired-wireless policy enforcement, application visibility, and superior resiliency. Various model suffixes (like -S, -E, -L) denote different feature sets (IP Base, IP Services, LAN Base) and software licensing levels. Common configurations feature 48x 10/100/1000 Ethernet ports and 2x 10G SFP+ & 2x 1G SFP uplink ports, though some results mention 4x 10G SFP uplink ports for certain LAN Base models. Switching capacity is typically around 176 Gbps (standalone) and the forwarding rate is 104.16 Mpps. It supports optional stacking up to 9 switches with 160 Gbps stack throughput. It supports modular and field-replaceable redundant fans and power supplies.
Specifications
| RAM | 4 GB DRAM |
|---|---|
| Base Ports | 48 x 10/100/1000BASE-T (RJ-45) |
| Flash Memory | 2 GB |
| Uplink Ports | 2 x 10G SFP+ and 2 x 1G SFP (standard for -S/-E models) |
| Forwarding Rate | 104.16 Mpps |
| Switching Capacity | Up to 176 Gbps (standalone) |
| Stacking Technology | Optional StackWise-160 (160 Gbps throughput) |
| Software Feature Set | Varies (IP Base, IP Services, LAN Base) |
| MAC Address Table Size | 32,000 |
| Power Supply Included (Example) | 1 x PWR-C2-250WAC (250W AC) |
| Warranty | Varies by seller/condition (e.g., 1 Year for refurbished units) |
| Weight | 15.9 lbs (for WS-C3650-48TD-L) |
| Dimensions | 17.5 in Width x 17.6 in Depth x 1.7 in Height (for WS-C3650-48TD-L) |
Key Features
The WS-C3650-48TD is a 48-port Gigabit Ethernet access layer switch from the Cisco Catalyst 3650 series, notable for its ability to converge wired and wireless networks on a unified platform using StackWise-160 technology for high scalability. It features high-speed 10G uplinks and modular components for power and cooling.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco Catalyst 3650 Series 48-Port Data Switch (WS-C3650-48TD) (WS-C3650-48TD) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco Catalyst 3650 Series 48-Port Data Switch (WS-C3650-48TD) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco Catalyst 3650 Series 48-Port Data Switch (WS-C3650-48TD) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WS-C3650-48TD.
