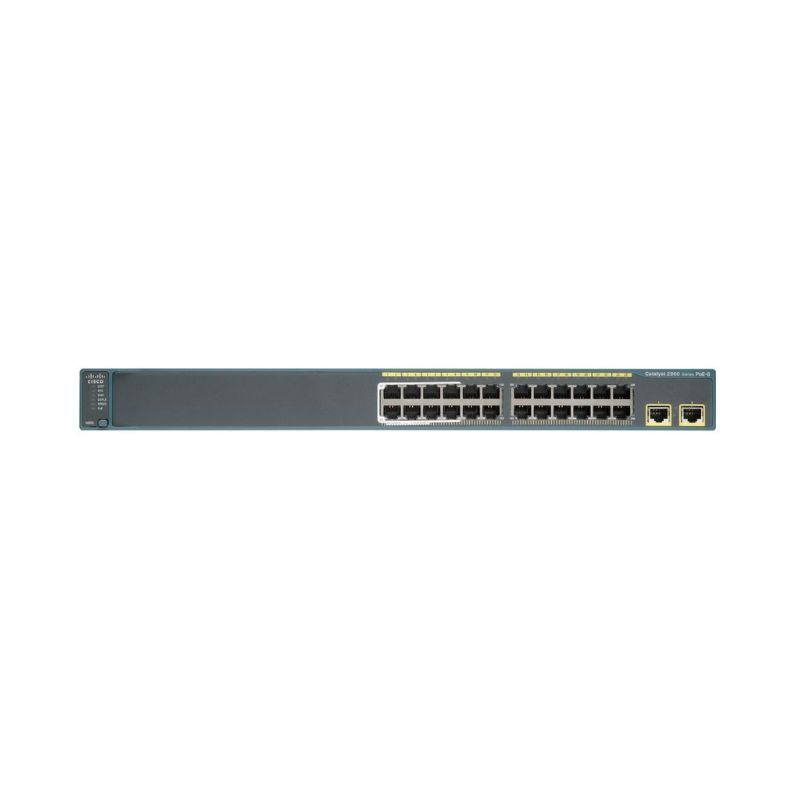

WS-C2960-24LT-L, Cisco Catalyst Switch, 24x10/100 (8 PoE), 2x1000BT, LAN Base
Brand: Cisco · SKU: WS-C2960-24LT-L · MPN: WS-C2960-24LT-L · Category: Networking
24 Ethernet 10/100 ports (PoE supported on 8 ports) and 2 fixed Ethernet 10/100/1000 uplink ports
Specifications
| MTBF | 311,781 hours |
|---|---|
| Model | WS-C2960-24LT-L |
| Telco | Common Language Equipment Identifier (CLEI) code |
| Weight | 10.9 kg |
| Indicators | Per-port: link integrity, disabled, activity, speed, full duplex; system: system, RPS, link status, link duplex, link speed |
| Performance | 16 Gbps switching fabric (Catalyst 2960PD-8TT-L, 2960-8TC-L, 2960-24TT-L, 2960-24TC-L, 2960-24LT-L, 2960-24PC-L, 2960-48PST-L, 2960-48TT-L, 2960-48TC-L); 32 Gbps switching fabric (Catalyst 2960G-8TC-L, 2960G-24TC-L, 2960G-48TC-L); forwarding rate (64-byte packets): 6.5 Mpps; 64 MB DRAM; 32 MB flash memory; up to 8000 MAC addresses; up to 255 IGMP groups; configurable MTU up to 9000 bytes; maximum Ethernet frame size 9018 bytes for bridging on GE ports; up to 1998 bytes for bridging of MPLS-tagged frames on 10/100 and 10/100/1000 ports |
| Power rating | 0.175 kVA |
| Acoustic noise | ISO 7779, bystander position, operating at 25°C ambient: 48 dBa |
| Power connectors | Internal power supply or Cisco RPS 675; connectors on back of switch; internal AC input: autoranging 100–240 VAC, use supplied AC power cord; Cisco RPS connector for optional Cisco RPS 2300 (PWR-RPS2300) with AC input and DC output to switch; RPS 2300: 2300 W redundant power system, supports up to 6 external devices and powers up to 2 failed devices at a time; automatic sensing of internal power supply failure and backup power to prevent network traffic loss; note: Catalyst 2960-8TC-L and 2960G-8TC-L do not have RPS ports |
| EMC certifications | FCC Part 15 Class A; EN 55022 Class A (CISPR 22); EN 55024 (CISPR 24); AS/NZS CISPR 22 Class A; CE; CNS 13438 Class A; MIC; GOST; China EMC certifications |
| Operating environment | Normal operating: -5°C to +45°C, up to 1500 m (5000 ft); -5°C to +40°C, up to 3000 m (10,000 ft); -5°C to +35°C, up to 4000 m (13,000 ft). Short-term exceptional: -5°C to +55°C at sea level; -5°C to +50°C, up to 1500 m (5000 ft); -5°C to +45°C, up to 3000 m (10,000 ft); -5°C to +40°C, up to 4000 m (13,000 ft); short-term not more than 96 consecutive hours, or 360 hours total, or 15 occurrences per year (for Catalyst 2960G-8TC-L reduce high range by 5°C) |
| Safety certifications | UL 60950-1, First Edition; cUL to CAN/CSA 22.2 No. 60950-1, First Edition; TUV/GS to EN 60950-1, First Edition; CB to IEC 60950-1 with all country deviations; AS/NZS 60950-1, First Edition; CE Marking; NOM (through partners and distributors) |
| Connectors and cabling | 10BASE-T: RJ-45, 2-pair Cat 3, 4, or 5 UTP; 100BASE-TX: RJ-45, 2-pair Cat 5 UTP; 1000BASE-T: RJ-45, 4-pair Cat 5 UTP; 1000BASE-T SFP-based: RJ-45, 4-pair Cat 5 UTP; 1000BASE-SX/LX/LH/ZX/BX and CWDM SFP-based: LC fiber (single-mode or multimode); 100BASE-LX/BX/FX: LC fiber (single-mode or multimode) |
| Dimensions (H x W x D) | 1.73 x 17.5 x 9.3 in. (4.4 x 44.5 x 23.6 cm) |
| Environmental compliance | RoHS 5 (Reduction of Hazardous Substances) |
| AC input voltage and current | 100–240 VAC (autoranging), 3.0–1.5 A, 50–60 Hz |
| DC input voltages (RPS input) | +12 V at 8.3 A, -48 V at 2.7 A |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this WS-C2960-24LT-L, Cisco Catalyst Switch, 24x10/100 (8 PoE), 2x1000BT, LAN Base (WS-C2960-24LT-L) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This WS-C2960-24LT-L, Cisco Catalyst Switch, 24x10/100 (8 PoE), 2x1000BT, LAN Base includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the WS-C2960-24LT-L, Cisco Catalyst Switch, 24x10/100 (8 PoE), 2x1000BT, LAN Base compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WS-C2960-24LT-L.
