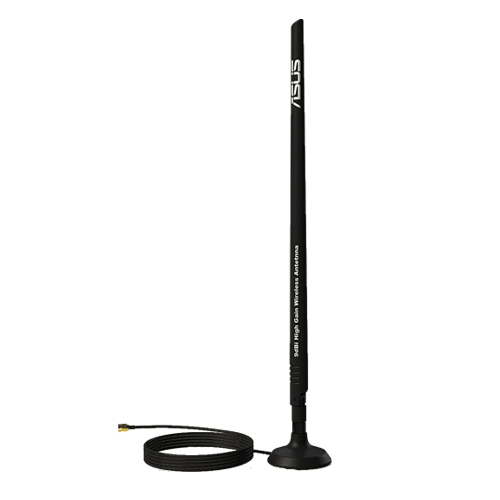

ASUS WL-ANT-191 network antenna Omni-directional antenna RP-SMA 9 dBi
Brand: ASUS · SKU: WL-ANT-191 · MPN: WL-ANT-191 · Category: Components
ASUS WL-ANT-191, 9 dBi, 2.4 GHz, 50 Ω, 360°, 360°, Omni-directional antenna
Specifications
| Impedance | 50 Ω |
|---|---|
| Antenna type | Omni-directional antenna |
| Cable length | 1.5 m |
| Polarization | Vertical polarization |
| Frequency band | 2.4 GHz |
| Product colour | Black |
| Compatible products | - WL-520GC, WL-520gU, WL-500g Premium, WL-500gP V2, RT-N10, RT-N11, RT-N12, RT-N16, PCI-G31, PCE-N13 |
| Vertical beam width | 360° |
| Horizontal beam width | 360° |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 9 dBi |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Warranty | 3-Year Warranty |
Product Description
More Power and Larger Coverage Range for Wireless Networking - 360° Coverage Extension - Cost Effective - Easy to Install The WL-ANT191 is Omni High Gain Antenna provides more power and larger coverage range for wireless networking. For greater flexibility in placement, the WL-ANT191 is accompanied by a magnetic based with 1.5m extension cable. It can be used with ASUS 2.4GHz access points, routers, and client cards with RP-SMA connectors. 360° Coverage Extension Stronger signal increases wireless coverage to hard-to-reach areas. Increase the strength of outgoing signals and sensitivity for signal reception. Cost Effective The high-gain antenna saves wiring costs for building corporate wireless infrastructures by driving stronger signals to all corners. Easy to Install (No driver required) Just unscrew your current antenna, and attach the high-gain antenna in its place.
Key Features
ASUS WL-ANT-191. Antenna gain level (max): 9 dBi, Frequency band: 2.4 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: RP-SMA, Polarization: Vertical polarization
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS WL-ANT-191 network antenna Omni-directional antenna RP-SMA 9 dBi (WL-ANT-191) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS WL-ANT-191 network antenna Omni-directional antenna RP-SMA 9 dBi includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS WL-ANT-191 network antenna Omni-directional antenna RP-SMA 9 dBi compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WL-ANT-191.
