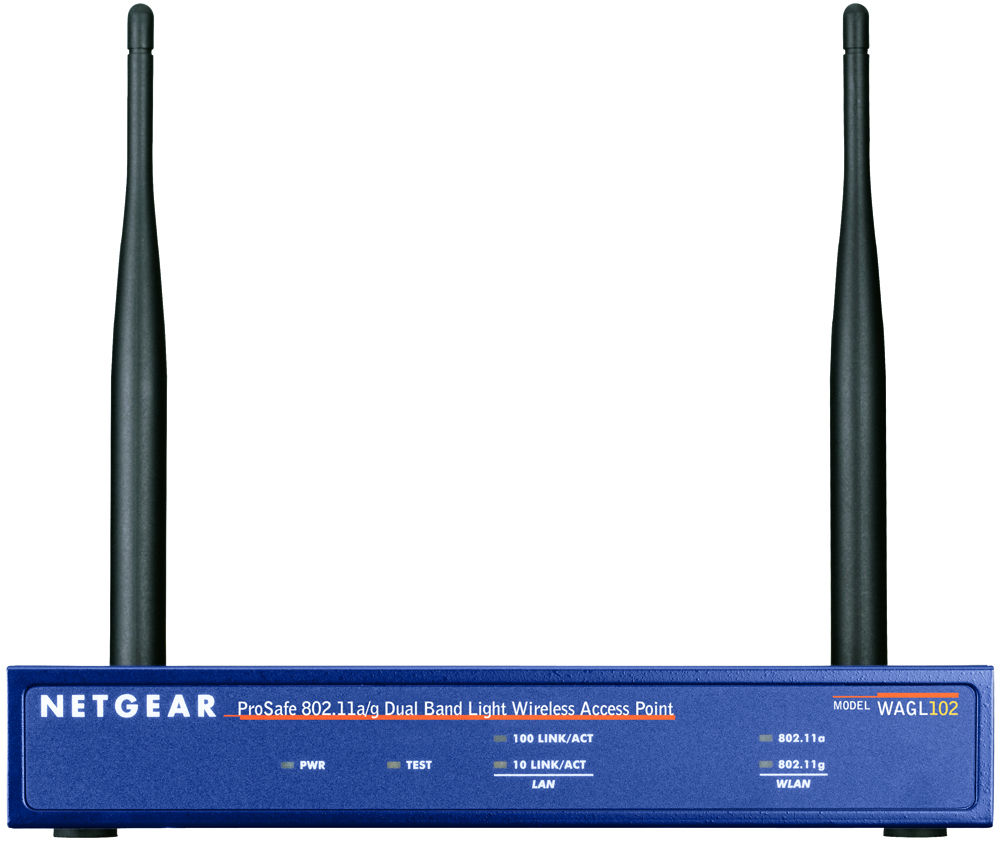

NETGEAR WAGL102 108 Mbit/s Power over Ethernet (PoE)
Brand: NETGEAR · SKU: WAGL102-100EUS · MPN: WAGL102-100EUS · Category: Components
NETGEAR WAGL102, 2.4 GHz, 5 GHz, 108 Mbit/s. NETGEAR WAGL102 108 Mbit/s Power over Ethernet (PoE) (part number WAGL102-100EUS) is an enterprise components product available from Server Tech Central. Key specifications include 5 ghz Yes, weight 620 g, 2.4 ghz Yes, frequency band 2.4, 5 GHz, connectivity leds Y, cabling technology 10/100Base-T(X), dimensions (wxdxh) 190.5 x 122 x 32 mm, power requirements 12V DC, 1.0A. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| 5 GHz | Yes |
|---|---|
| Weight | 620 g |
| 2.4 GHz | Yes |
| Certification | FCC Part 15, CE EN 60950-1 (2001), EN 301 489-17 V1.2.1 (2002), EN 301 489-1 V1.4.1 (2002), EN 300 328-1 (2001-12), EN 300 328-2 (2001-12), R&TTE, 99/5/EC, CSIPR22 (B), AS/NZS 3548 (B), C-Tick: AS/NZ 3548 Class B, CE EN 60950-1 (2001), EN 301 489-17 V1.2.1 (2002-08), EN 301 489-1 V1.4.1 (2002-08), EN 300 328-1 (2001-12), EN 300 328-2 (2003-4), EN 301893(5GHz), EN 60601, R&TTE Directive 99/5/EC |
| Frequency band | 2.4, 5 GHz |
| Connectivity LEDs | Y |
| Cabling technology | 10/100Base-T(X) |
| Dimensions (WxDxH) | 190.5 x 122 x 32 mm |
| Power requirements | 12V DC, 1.0A |
| Wireless technology | Wi-Fi |
| Number of connectors | 2 |
| Receiver sensitivity | 802.11b - 2 Mbps-94 dBm - 5.5 Mbps-92 dBm - 11 Mbps-90 dBm 802.11g - Mbps-91 dBm - 9 Mbps-91 dBm - 12 Mbps-90 dBm - 18 Mbps-87 dBm - 24 Mbps-85 dBm - 36 Mbps-80 dBm - 48 Mbps-75 dBm - 54 Mbps-70 dBm 802.11a - 6 Mbps-92 dBm - 9 Mbps-91 dBm - 12 Mbps-90 dBm - 18 Mbps-86 dBm - 24 Mbps-84 dBm - 36 Mbps-79 dBm - 48 Mbps-72 dBm - 54 Mbps-70 dBm |
| Antenna connector type | SMA |
| Antenna gain level (max) | 5 dBi |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 108 Mbit/s |
| Minimum system requirements | 2 MB storage drive space |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 6 W |
| Compatible operating systems | Windows 98, Me, 2000, XP |
| Compliance industry standards | IEEE 802.11g, IEEE 802.3af, IEEE 802.11g, IEEE 802.11a, IEEE 802.3af |
| Supported data transfer rates | 54, 48, 36, 24,18, 12, 11, 9, 6, 5.5, 2 |
| Operating relative humidity (H-H) | 0 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 620 g |
Product Description
Part of the NETGEAR ProSafe Smart Wireless Solution, the 802.11a/g Dual Band Light Wireless Access Point will only work with the NETGEAR ProSafe Smart Wireless Switch. Intelligent Networking Features for a Scalable, Secure Solution NETGEAR’s ProSafe Dual Band Light Wireless Access Point WAGL102 delivers the secure, reliable, high-performance wireless local area networks (WLANs) today’s mobile workforce demands. The WAGL102 Access Point supports both 5 GHz and 2.4 GHz 54 Mbps radio transmission in both 802.11g and 802.11a in turbo mode. It supports up to 128 simultaneous wireless clients and client types within the same coverage area. Managed and configured by the NETGEAR Prosafe Smart Wireless Controller, the WAGL102 is a “light” wireless access point which is part of the overall NETGEAR ProSafe Smart Wireless Solution. The WAGL102 supports integrated IEEE 802.3af Power over Ethernet (PoE). Secure Managed and configured by the NETGEAR ProSafe Smart Wireless Controller (WFS709TP), the WAGL102 is a “light” wireless access point that implements the 802.11 standard. As part of the centralized architecture, much of the security configuration such as WPA2-Enterprise (802.11i), WPA2 and 802.1x support happens at the NETGEAR ProSafe WFS709TP. The NETGEAR ProSafe Smart Wireless Controller also supports MAC address authentication, support for multiple BSSID/VLANs and guest/contractor access. Versatile As part of the NETGEAR ProSafe Smart Wireless Solution, the WAGL02 is cost-effective and simple to install and use. In addition, it’s plenum rated—appropriate for placement above drop-down ceilings and under raised floors. Fitted with two powerful detachable 5 dBi antennas and compatible with NETGEAR’s ProSafe 2.4 GHz antennas for expanded wireless capacity and range. Protected with a NETGEAR Lifetime Warranty†, the WAGL102 includes the embedded IEEE 802.3af Power over Ethernet (PoE) port which expands installation options by eliminating the need to locate the Light Wireless Access Point near a power outlet.
Key Features
NETGEAR WAGL102. 2.4 GHz, 5 GHz, Maximum data transfer rate: 108 Mbit/s. Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NETGEAR WAGL102 108 Mbit/s Power over Ethernet (PoE) (WAGL102-100EUS) is 100% genuine NETGEAR hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NETGEAR WAGL102 108 Mbit/s Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NETGEAR WAGL102 108 Mbit/s Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WAGL102-100EUS.
